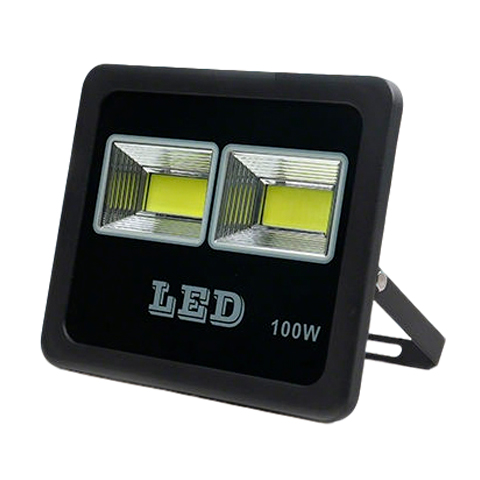

100W Outdoor LED Flood Light IP66 Anti-Corrosion COB Fixture for Commercial Use
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
| Material | Die-cast Aluminum + Professional Powder Coating |
Talk to Our Engineer Now 1. Professional Anti-Corrosion Coating

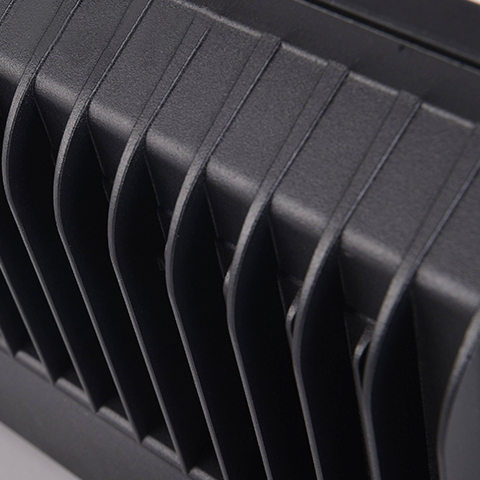

Outdoor fixtures are constantly attacked by rain, humidity, and industrial pollution. This 100W model utilizes a thickened die-cast aluminum housing finished with a professional outdoor powder coating. This provides superior corrosion and rusting resistance, keeping the fixture looking pristine while protecting the internal LED engine.
2. Instant Start & Massive Energy Savings
Unlike traditional 500W incandescent or electrified discharge lamps that suffer from light fading and long startup delays, this 100W LED flood light requires absolutely no warm-up time. It starts and restarts immediately, achieving energy savings of up to 75% while delivering roughly the same luminous flux.
3. Tier-1 Drivers & Extreme 10KV Surge Protection
To prevent catastrophic power supply failure caused by lightning strikes or grid voltage spikes, we integrate Tier-1 power supplies (Meanwell or Inventronics). These are paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits from 2.5KV up to a massive 10KV.

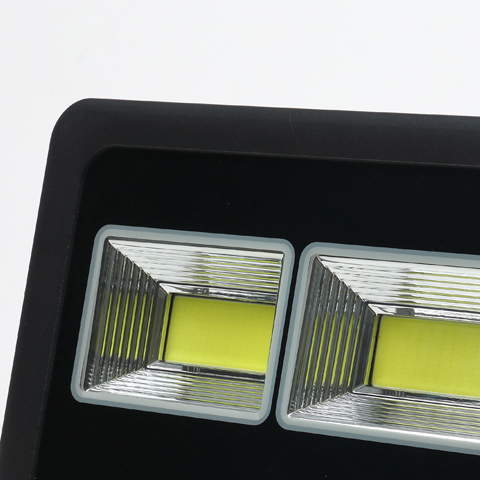

4. High Visible Light Ratio & Advanced Optics
Equipped with an advanced optical lens offering multiple beam angles (30°, 60°, 90°, 120°), the emitted light boasts a visible light ratio of over 80%. With a CRI greater than 70 (Option >80), it provides a soft light color that reveals the true, natural colors of illuminated objects, all protected by a strict IP66 rating.
| Model Number | DL01-A07A10-007 |
| Power Consumption | 100W |
| LED Chip Type | COB (Epistar) |
| Luminous Efficacy | 80-85 LM/1W ; 90-100 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70 (Option for Ra > 80) |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Die-cast Aluminium + Glass, PC diffuser |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Beam Angles | 30° / 60° / 90° / 120° |

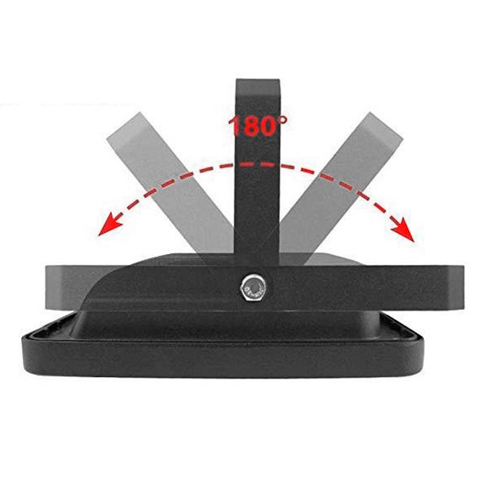

| Installation Mounts | Wall mounted, Ceiling mounted, Floor mounted |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 100W Anti-Corrosion Flood Light Excel?
Upgrading to 100W significantly expands the coverage area. The professional outdoor powder coating and instant-start capability make this fixture highly versatile for heavy-duty commercial environments requiring immediate, reliable illumination.
Perimeter Security & Logistics
Because it requires zero warm-up time and restarts immediately, it is perfect for integrating with motion sensors in large factory perimeters or logistics hubs, instantly flooding massive areas with light when triggered.
Coastal & Industrial Exteriors
The specialized outdoor powder coating provides high resistance to rust and corrosion. This makes it an ideal solution for mounting on exterior walls in high-humidity areas, near coastlines, or in heavily polluted industrial manufacturing zones.
Large Billboard & Facade Wash
With a high visible light ratio and multiple optical lens choices (30° to 120°), this fixture shows the natural colors of objects beautifully without wasting energy. It is excellent for washing large architectural facades or massive commercial billboards.
