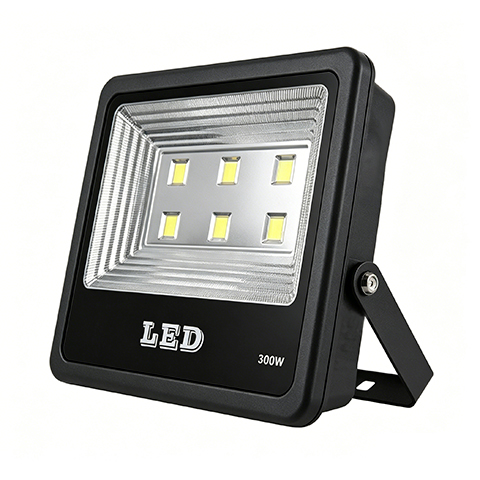

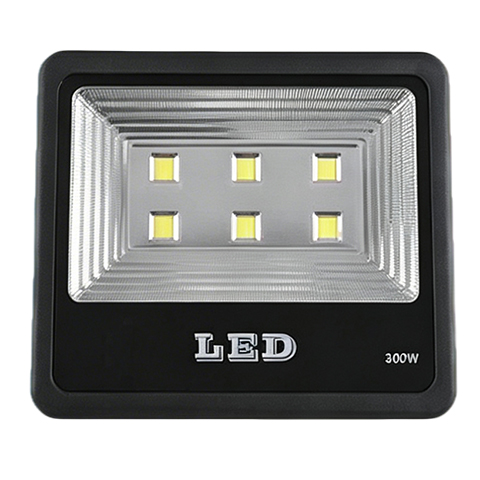

300W Heavy Duty LED Flood Light IP66 Waterproof COB Fixture for Stadiums and Seaports
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
| Material | Die-cast Aluminum + Tempered Glass |
Talk to Our Engineer Now

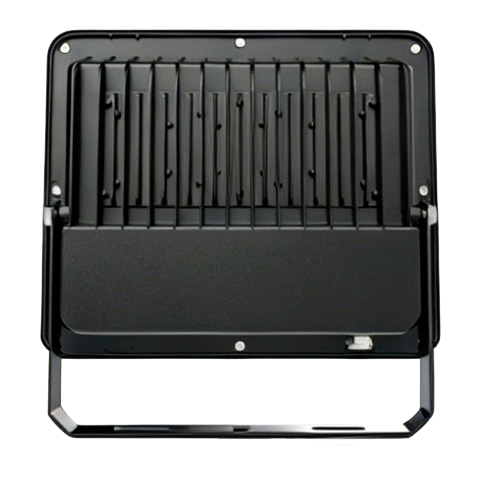

1. Extreme Thermal Mass for 300W Output
Pushing 300W creates brutal thermal loads. We engineered this fixture with a massive 500x400mm thickened die-cast aluminum body featuring aggressive striped heat sinks[cite: 20]. This extreme thermal structure instantly pulls heat away from the 6-COB array, entirely preventing thermal throttling and ensuring zero light decay over its 50,000-hour rated lifespan[cite: 20].

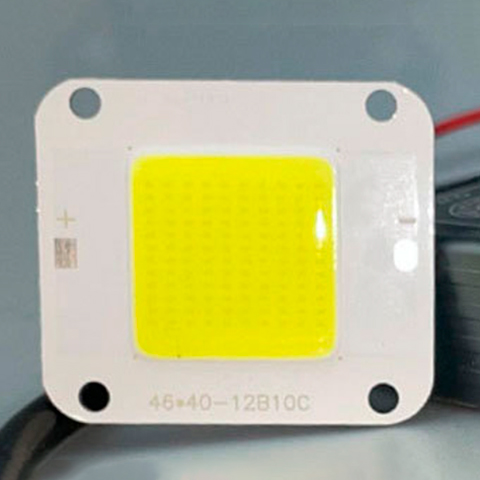

2. 6-Array Epistar COB Engine
Standard SMD chips scatter light and lack the punch needed for high-mast applications. This model utilizes a 6-array of concentrated Chip-on-Board (COB) LEDs from Epistar[cite: 20]. This specific layout provides a highly uniform, intense beam with unmatched center-beam candlepower, making it exceptional for throwing light across massive stadiums or container yards.
3. Tier-1 Drivers & 10KV High-Mast Surge Protection
Fixtures mounted on 20 or 30-meter masts are the primary targets for lightning strikes. To prevent catastrophic power supply failure, we integrate Tier-1 drivers (Meanwell or Inventronics)[cite: 20], paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits up to a massive 10KV[cite: 20]. Install it once and forget it.

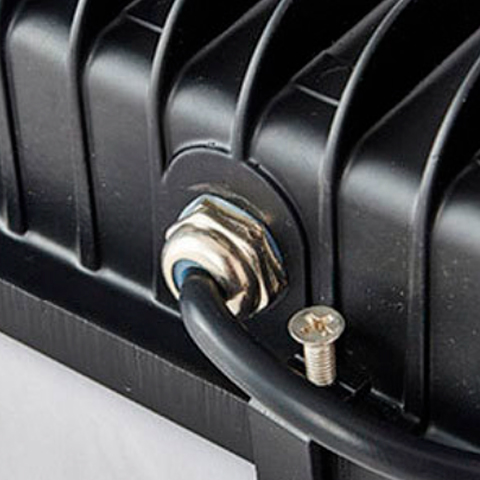

4. IP66 Dust & Waterproof Construction
Engineered for the absolute harshest outdoor realities. The tempered glass face and waterproof silicon rubber gaskets are tightly compressed into the aluminum frame, achieving a strict IP66 rating[cite: 20]. It is completely dust-tight and easily withstands high-pressure water jets during severe coastal typhoons or industrial cleanings.
| Model Number | DL01-A07A10-005[cite: 20] |
| Power Consumption | 300W (Heavy Duty)[cite: 20] |
| LED Chip Type | COB (Epistar) – 6-Chip Array[cite: 20] |
| Luminous Efficacy | 80-85 LM/1W ; 90-100 LM/1W Options[cite: 20] |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC)[cite: 20] |
| Input Voltage | AC85-305V / AC165-277V[cite: 20] |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70[cite: 20] |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options[cite: 20] |
| Housing Material | Thickening Die-cast Aluminium + Tempered Glass, AL diffuser[cite: 20] |
| IP Rating | IP66 (Dustproof & Waterproof)[cite: 20] |
| Product Dimensions | 500 x 400 x 65 mm[cite: 20] |

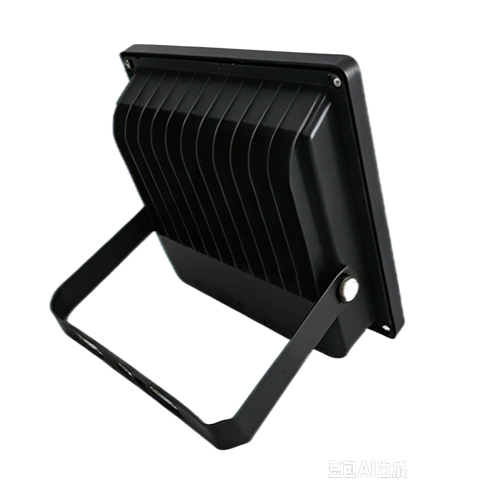

| Installation Mounts | Wall, Ceiling, or Floor Mounted via Adjustable U-Bracket[cite: 20] |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty[cite: 20] |
Where Does This 300W COB Flood Light Excel?
At a massive 300W, this fixture is designed for extreme projection. The intense brightness, 6-COB punch, and 10KV surge protection make it an absolute necessity for high-mast infrastructure and mega-industrial applications[cite: 20].
Professional Sports Stadiums
Perfect for illuminating full-size football pitches, athletic tracks, and major tennis arenas. The massive lumen output of the six COB chips allows you to mount the lights on 30-meter masts and still aim the light precisely across the playing field.
Deep Water Ports & Rail Yards
Industrial freight zones demand uninterrupted lighting for safety. The IP66 die-cast aluminum housing ensures the lights keep performing despite coastal salt spray, heavy rain, and direct exposure to the elements in open shipping yards.
Airport Tarmacs & Mega-Parking
Engineers specify this 300W fixture to wash massive expanses of concrete from a significant distance. The pure COB light source provides a powerful, clean wash of light that highlights ground-level activities safely, while the 10KV SPD protects against lightning strikes.
