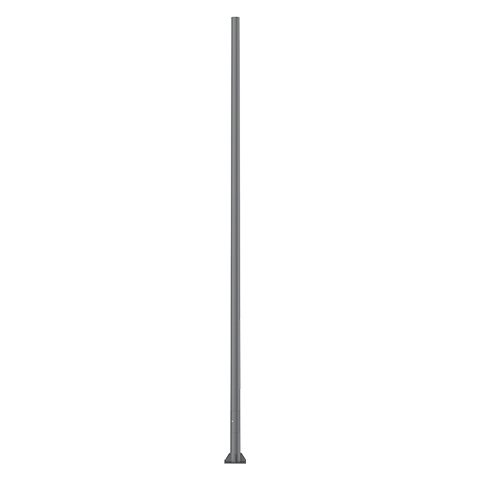

5M Straight Round Light Pole 102mm Uniform Diameter Steel
| Diameter | Constant Ø102mm (Straight Tube) |
| Wall Thickness | 2.5mm (Upgraded) |
| Foundation | 230x230x8mm Flange / 4-M16 (H500mm) Bolts |
Talk to Our Engineer Now 1. Bold Architectural Profile (Constant Ø102mm)
Diverging from traditional tapered designs, this architectural mast features a completely straight, non-tapered cylinder. The bold, continuous Ø102mm diameter delivers an ultra-clean, monolithic aesthetic that perfectly complements modern glass-and-steel environments. This uniform geometry ensures the pole acts as a deliberate architectural statement rather than a mere utility fixture.
2. Upgraded Structural Rigidity (2.5mm Wall)

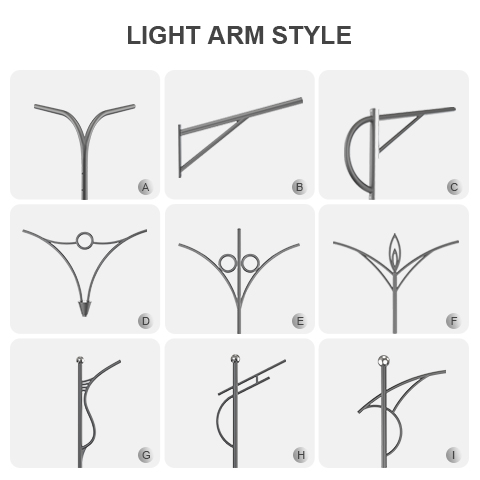

At a 5-meter (16.4ft) elevation, lighting poles frequently support heavier commercial LED fixtures and face increased aerodynamic drag. To eliminate structural deflection and harmonic whipping, this Q235B steel pole is reinforced with an upgraded 2.5mm wall thickness. The robust Ø102mm core easily handles single or dual-arm mounting configurations.
3. Secure 230mm Flange & Deep M16 Anchoring

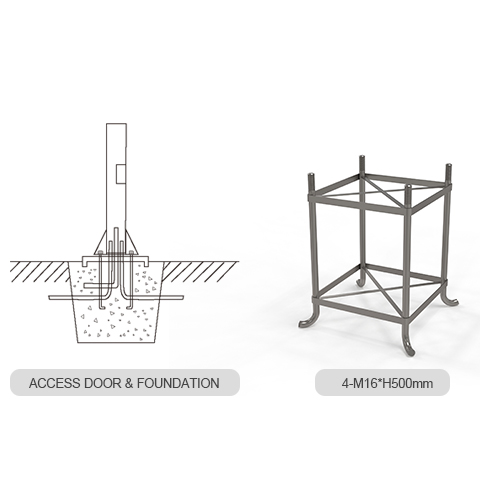

To safely transfer elevated wind loads into the foundation while maintaining the pole’s sleek aesthetic, the base relies on a 230x230mm square flange plate (8mm thick). The anchoring system is significantly strengthened with four M16 foundation bolts featuring an extended 500mm embedment depth, ensuring absolute vertical plumbness.

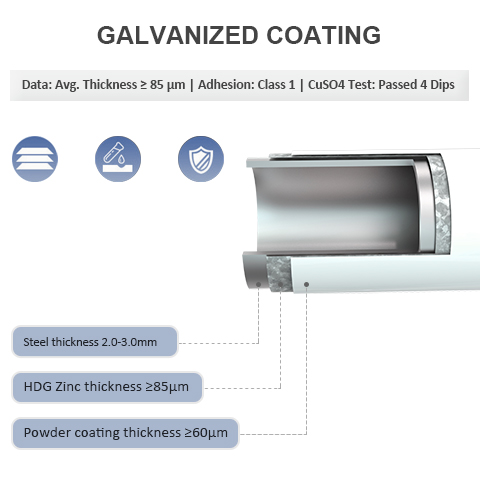

4. HDG (≥85μm) & Architectural Powder Coating
To protect against soil moisture, sprinkler spray, and urban pollution, the entire steel column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy metallurgical zinc barrier of ≥85μm. A secondary electrostatically applied architectural powder coating (≥60μm) chemically seals the surface, guaranteeing a rust-free lifespan exceeding 25 years.
| Model Reference | DL01-A01A03-015 |

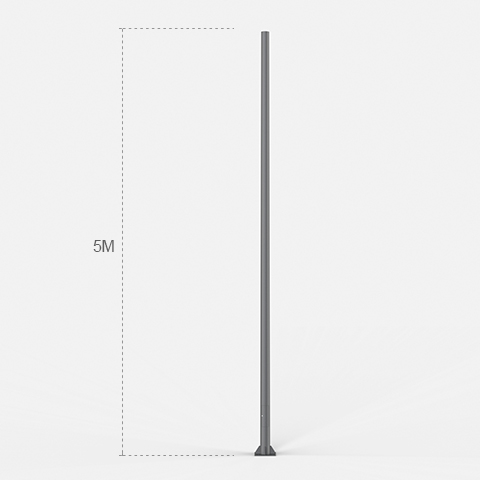

| Pole Height | 5M (Approx. 16.40FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Straight Round Tubular (Non-Tapered) |
| Pole Diameter | Constant Ø102mm (Top to Bottom) |
| Structural Wall Thickness | 2.5mm (Upgraded for 5M Stability) |
| Base Flange Dimensions | 230 * 230 * 8mm |
| Anchor Bolt Spec | 4 Pieces – M16 (H500mm Embedment) |

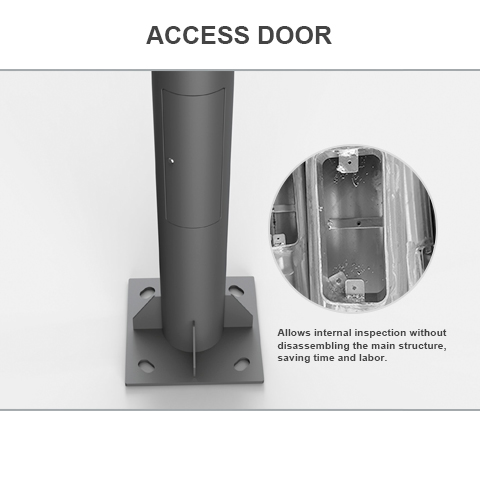

| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Architectural & Commercial Applications for 5M Straight Poles
At a highly versatile height of 5 meters (16.4ft), the bold, uninterrupted Ø102mm cylinder of this straight mast provides the perfect structural foundation for mid-scale urban area lighting, seamlessly merging heavy-duty performance with geometric purity.
Luxury Residential Streets
Design Strategy: A 5-meter elevation is the gold standard for high-end subdivision roadways. It pushes the light source high enough to illuminate two lanes evenly while avoiding light trespass into adjacent homes. The straight Ø102mm column provides a far more contemporary look than traditional tapered street poles.
Structural Benefit: The upgraded 2.5mm wall thickness ensures the mast will not sway when equipped with decorative LED lantern heads. The deep 500mm M16 anchors keep the infrastructure flawlessly vertical over decades.
Commercial Plazas & Retail Parking
Design Strategy: Premium retail centers favor bold, straight poles because the uniform Ø102mm cylinder can flawlessly match the outer diameter of commercial cylindrical area lights, creating a striking, monolithic “light pillar” aesthetic.
Structural Benefit: The sturdy construction makes it an excellent platform for mounting additional hardware, such as security cameras, EV charging signage, or pedestrian wayfinding banners, without compromising stability.
Corporate Office Campuses
Design Strategy: Tech hubs and modern corporate headquarters demand outdoor infrastructure that feels organized, highly intentional, and unobtrusive. The straight, non-tapered line provides an ordered visual environment.
Structural Benefit: The flush access door completely conceals all electrical wiring, ensuring the pure cylindrical geometry is never visually disrupted. The dual-layer HDG finish prevents any rust bleeding onto high-value landscaping.
