6M Heavy Duty Galvanized Steel Traffic Signal Light Pole 5.0mm Wall Thickness for Road Intersections
| Diameters | Bottom Ø160mm / Top Ø100mm (Tapered) |
| Thickness | 5.0mm (Heavy Duty Traffic Standard) |
| Base Plate | 350x350x16mm / 4-M20 (H700mm) |
Talk to Our Engineer Now 1. Extreme 5.0mm Wall for Cantilever Support

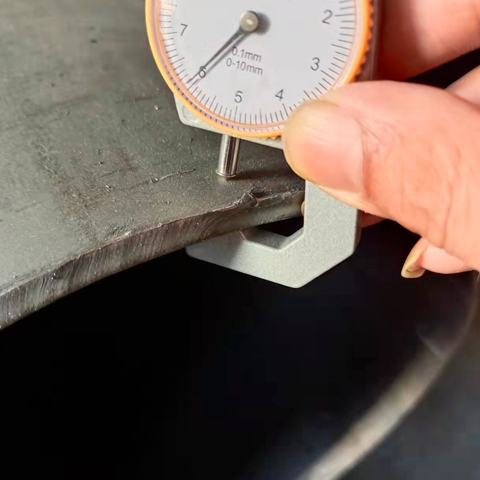

Traffic poles must support horizontal mast arms extending over roadways. This creates a massive twisting force (torsion) that standard 3mm street light poles simply cannot handle. We use a 5.0mm thick Q235B steel wall for this 6M pole, ensuring it will not bend, warp, or snap under the weight of signal heads and high wind loads.
2. Purpose-Built Taper (160mm to 100mm)
The pole is designed with a very stout profile, starting at Ø160mm at the base to absorb ground-level stress, and tapering only slightly to Ø100mm at the top. This thick Ø100mm top provides a highly secure, high-friction mating surface for attaching traffic cantilever arms or large CCTV camera brackets.
3. Traffic-Grade Anchoring (16mm Flange & M20 Bolts)
Safety at intersections is non-negotiable. To prevent the pole from tearing away from its footing under asymmetric loads, the foundation relies on an oversized 350x350mm flange plate that is 16mm thick. It locks into the concrete using four M20 bolts with a 700mm embedment depth.
4. Exhaust-Resistant HDG Coating

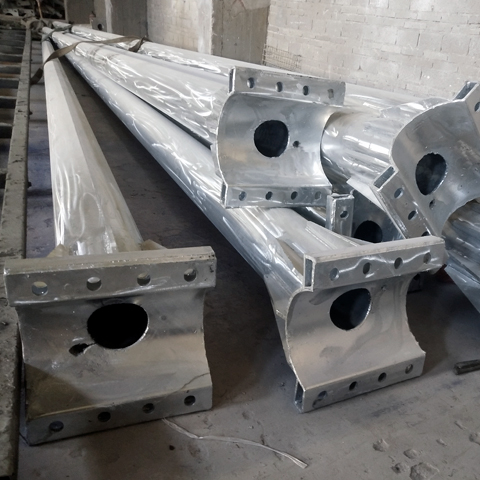

Traffic poles are installed inches away from constant vehicle traffic, making them highly susceptible to corrosive exhaust fumes and winter road salt. We fully submerge the pole in molten zinc (HDG ≥85μm) to protect both the inside and outside, followed by a durable powder coat. It’s built to last over 20 years with zero maintenance.
| Model Number | DL01-A01H03-001 |
| Pole Height | 6M (Approx. 19.68FT) |
| Material | Q235B Carbon Steel |
| Pole Type | Traffic / Signal / CCTV Pole |
| Top Diameter (O.D.) | Ø100mm (For cantilever arm mounting) |
| Bottom Diameter (O.D.) | Ø160mm |
| Wall Thickness | 5.0mm (Traffic-Grade Heavy Duty) |
| Base Flange Size | 350 * 350 * 16mm |
| Anchor Bolts | 4 pcs of M20, 700mm length |
| Finish | Hot Dipped Galvanized (≥ 85μm) + Powder Coating |
Where Does This 6M Traffic Pole Make Sense?
Because of its massive 5.0mm wall thickness and heavy 16mm flange, this pole is explicitly designed to handle the asymmetric loads of municipal traffic control systems, not just standard area lighting.

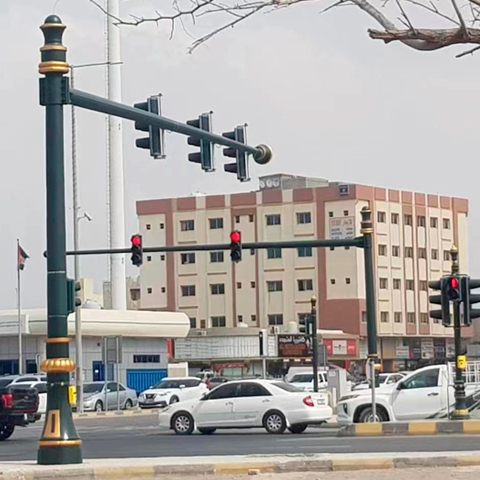

Traffic Signal Intersections

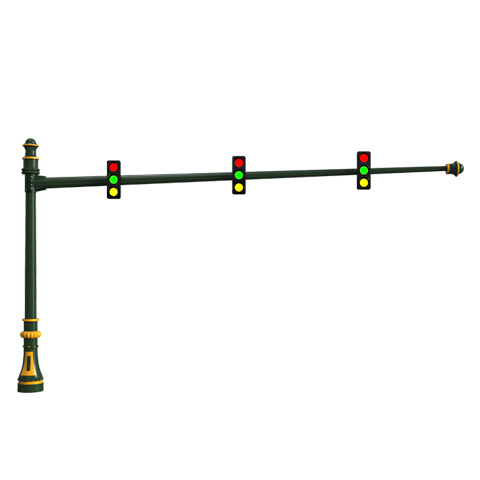

This is the primary support column for road intersections. The Ø100mm top allows contractors to securely mount 3-meter to 6-meter horizontal cantilever arms holding multiple heavy traffic lights over active vehicle lanes without the pole bending.
Highway Speed & CCTV Cameras
Electronic tolling and speed cameras (ANPR systems) require a perfectly rigid platform to avoid blurry images. The 5.0mm wall completely eliminates the harmonic vibration caused by passing heavy trucks, ensuring clear camera feeds.
Pedestrian Crossings & Signage
Used to hang large, wind-catching pedestrian crossing signs or warning lights over the road. The M20 deep anchor bolts ensure public safety by keeping the structure securely rooted even during severe storm events.
