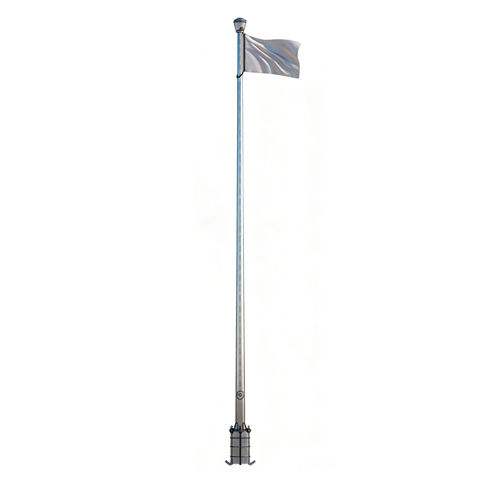

8M Commercial Stainless Steel Flag Pole Internal Halyard System
| Diameters | Top: Ø80mm / Bottom: Ø144mm |
| Wall Thickness | 2.5mm |
| Hoisting System | Internal Halyard with Stainless Wire Rope |
Talk to Our Engineer Now 1. Architectural Grade 304/316 Stainless Steel
Designed for premium commercial applications, this 8-meter mast is constructed from high-grade 304 or 316 stainless steel. This material provides absolute natural resistance to oxidation, coastal salinity, and urban emissions. Finished with a sophisticated brushed or satin texture, it delivers a permanent, high-end metallic luster that outperforms painted carbon steel in lifecycle maintenance costs.
2. Vandal-Proof Internal Halyard System

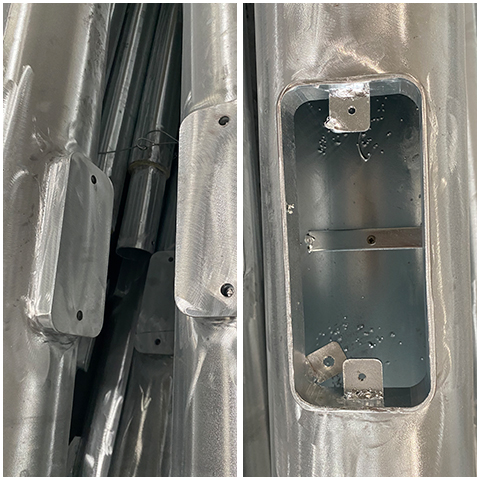

Traditional external ropes are notorious for theft and the loud “clanking” noise they create against the pole. This model features an advanced Internal Halyard System. The stainless steel wire rope operates entirely inside the hollow shaft via a built-in geared hand crank. Accessible only through a locked flush service door, it guarantees tamper-proof security and completely silent operation.
3. Aerodynamic Conical Taper for High Wind Loads
Accommodating a standard 3# flag (1920x1280mm) at 8 meters generates significant aerodynamic drag. The stainless steel tube is precision-spun into a continuous conical taper, expanding to a widened Ø144mm base diameter with a 2.5mm wall thickness. This specific structural geometry maximizes the section modulus, effectively absorbing wind-induced overturning moments.
4. 360° Rotating Finial & Anti-Tangle Hardware
To ensure the flag remains flawlessly displayed regardless of wind shifts, the top assembly utilizes a 360° smooth-rotating finial integrated with a pulley. A suspended counterweight rod and guide bead apply continuous downward tension, preventing the fabric from wrapping or tangling around the mast during turbulent weather.
| Model Reference | DL01-A01G17-003 |

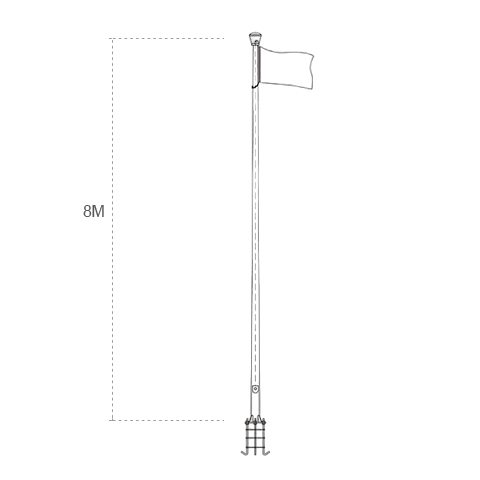

| Pole Height | 8M (Approx. 26.24FT) |
| Structural Material | 304 / 316 Grade Stainless Steel |
| Top Shaft Diameter | Ø80mm |
| Bottom Shaft Diameter | Ø144mm |
| Structural Wall Thickness | 2.5mm |
| Hoisting Mechanism | Internal Halyard with Built-in Hand Crank |
| Halyard Material | Stainless Steel Wire Rope |
| Anti-Tangle Hardware | Counterweight Rod, Guide Bead & 360° Finial |
| Recommended Flag Size | 3# Standard Flag (1920x1280mm) |

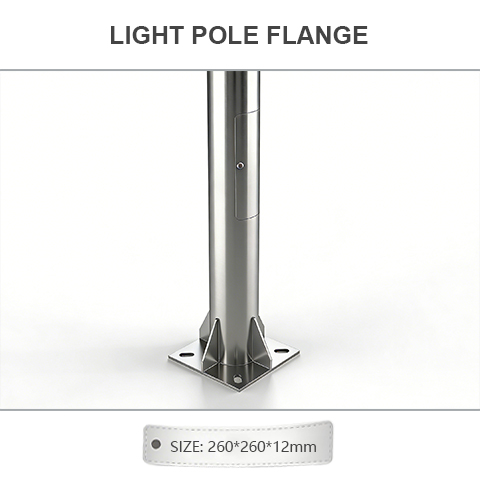

| Base Flange Dimensions | 260 * 260 * 12mm |

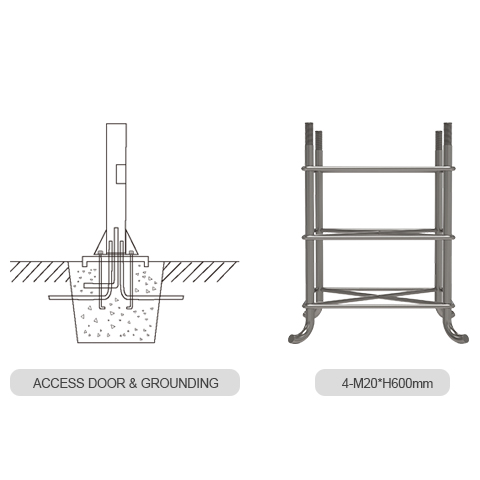

| Foundation Bolts | 4 Pieces – M20 (H600mm) |
| Surface Finishing | Brushed / Satin / Polished Metallic Finish |
Commercial & Civic Applications for 8M Stainless Flag Poles
The 8-meter (26ft) specification is the global gold standard for commercial and institutional flag displays, perfectly scaled for flying standard 3# (1920x1280mm) flags in front of 2-to-4 story architectural structures.

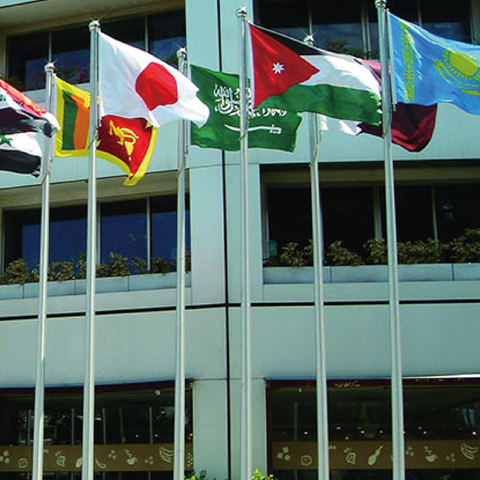

Corporate Headquarters & Luxury Hotels
Display Strategy: Premium brands utilize 8M flag arrays at their main entrances to project prestige. The brushed stainless steel finish aligns perfectly with modern glass-and-steel commercial architecture.
Structural Benefit: The built-in hand crank mechanism prevents unauthorized lowering or theft of expensive custom corporate flags. The aerodynamic taper keeps the mast perfectly plumb, maintaining a pristine, high-end appearance year-round.
Government Plazas & Memorial Parks
Display Strategy: Civic and memorial spaces demand an environment of quiet reverence. Traditional external halyards slap violently against hollow poles in the wind, causing severe acoustic disruption.
Structural Benefit: The internal stainless wire rope system completely silences the operation. The intrinsic rust-proof nature of 304/316 stainless steel guarantees that corrosive brown rust stains will never bleed onto the concrete monument bases.
Academic Campuses & Universities
Display Strategy: Schools require flag infrastructure that is both visually imposing and highly secure against tampering by students or unauthorized individuals.
Structural Benefit: The geared hand crank mechanism is fully concealed and secured behind a locking access panel. This vandal-proof design ensures that institutional or national flags cannot be manipulated outside of authorized ceremonial protocols.
