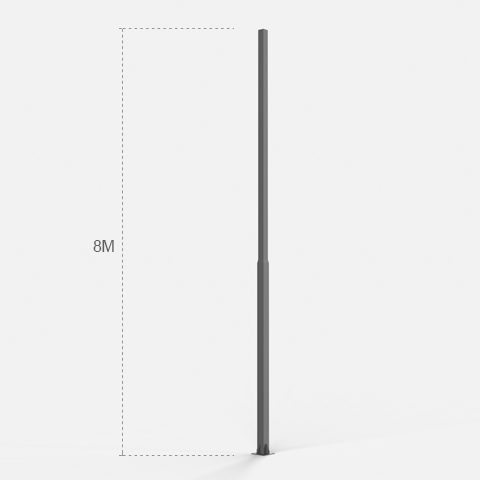

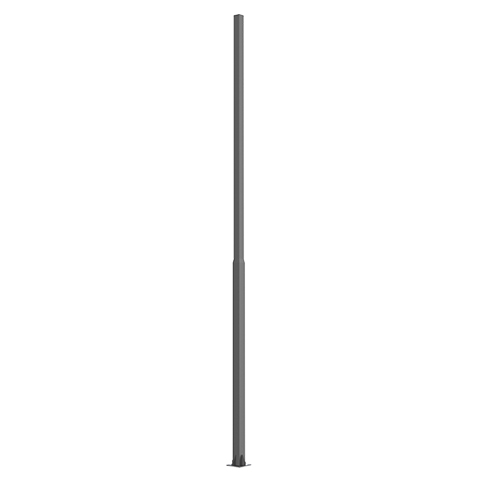

8M Galvanized Square Light Pole Heavy Duty 3.5mm Wall SHS
| Dimensions | Top: 120x120mm / Bottom: 150x150mm (Square) |
| Wall Thickness | 3.5mm (Heavy Duty) |
| Foundation | 350x350x14mm Flange / 4-M18 (H800mm) Bolts |
Talk to Our Engineer Now 1. Extreme Torsional Rigidity (3.5mm Wall & 150mm Base)
At an 8-meter (26ft) elevation, lighting poles acting as mounting points for multi-directional area lights face extreme wind shear. This Square Hollow Section (SHS) mast is structurally reinforced with a massive 3.5mm wall thickness. Combined with the heavy 150x150mm base geometry, it provides unparalleled torsional rigidity, ensuring the flat architectural faces will never twist or deflect under dynamic typhoon-level wind loads.
2. Enlarged 120x120mm Top Tenon for Heavy Payloads
Unlike standard poles that taper sharply, this model maintains a remarkably robust 120x120mm square cross-section at the very top. This oversized upper tenon is specifically engineered to safely support the extreme weight and aerodynamic drag of triple or quad-arm LED shoebox fixture arrays used in expansive commercial parking lots.

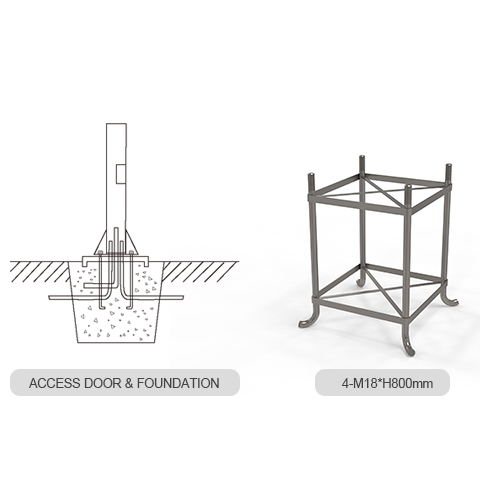

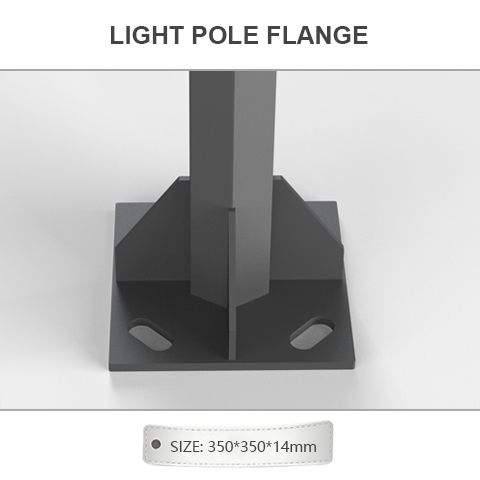

3. Oversized 350mm Flange & Deep M18 Anchoring
Maintaining absolute vertical plumbness is critical for the visual appeal of geometric square lighting grids. To safely transfer elevated 8M overturning moments, the foundation utilizes a significantly widened 350x350mm square flange plate with an upgraded 14mm thickness. The anchoring kit includes four heavy-duty M18 foundation bolts with an extended 800mm embedment depth.

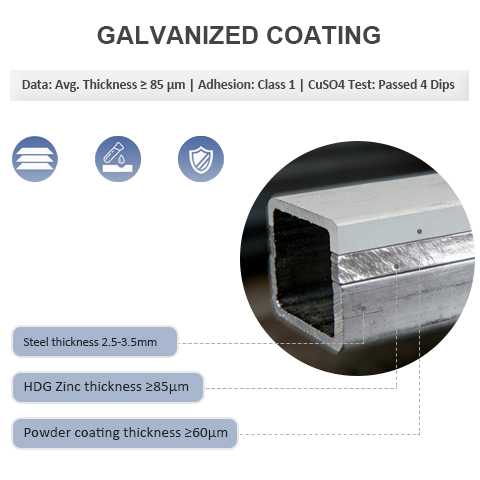

4. HDG (≥85μm) Edge Protection & Powder Coating
The sharp 90-degree corners of square poles are historically vulnerable to premature coating wear. To completely eliminate this risk, the entire column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy, metallurgical zinc barrier of ≥85μm. This is followed by an electrostatically applied architectural powder coating (≥60μm), guaranteeing superior edge protection and decades of rust-free service.
| Model Reference | DL01-A01A03-012 |
| Pole Height | 8M (Approx. 26.24FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Square Hollow Section (SHS) / Stepped |
| Top Shaft Dimension | 120 x 120mm (Heavy Payload Square Tenon) |
| Bottom Shaft Dimension | 150 x 150mm (Heavy Duty Square Base) |
| Structural Wall Thickness | 3.5mm (Upgraded for Multi-Arm Stability) |
| Base Flange Dimensions | 350 * 350 * 14mm |
| Anchor Bolt Spec | 4 Pieces – M18 (H800mm Embedment) |

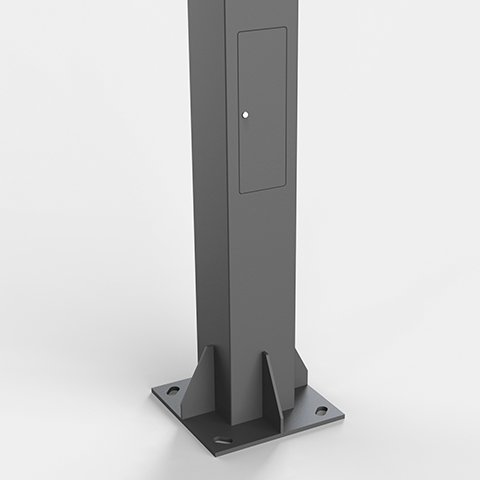

| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Mega-Commercial & Municipal Applications for 8M Square Poles
Operating at the optimal 8-meter (26ft) elevation, the massive 150x150mm base and extreme 3.5mm wall of this SHS mast make it the ultimate choice for mounting heavy, multi-directional fixture arrays in wide-open commercial spaces.
Auto Dealerships & Mega-Retail Lots
Design Strategy: Auto dealerships and massive retail plazas require intensely bright, overlapping light grids to showcase inventory and ensure safety. The 8M height is perfect for casting massive light cones.
Structural Benefit: The unusually large 120x120mm top tenon and 3.5mm wall thickness are specifically designed to support 3-way or 4-way heavy LED shoebox arrays without suffering from structural whipping during high crosswinds.

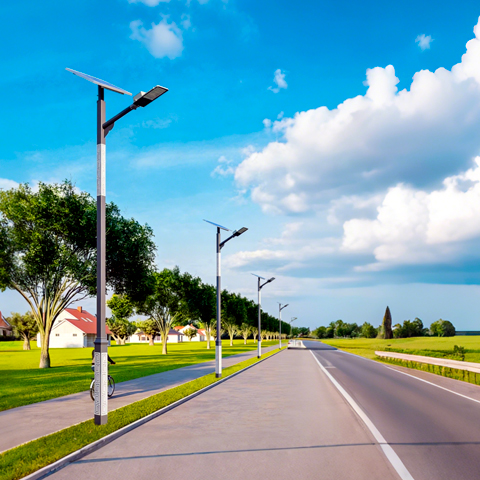

Primary Urban Roadways
Design Strategy: Contemporary city planning often replaces traditional round street lights with sleek square profiles to modernize the cityscape, providing excellent downward lux across 4-lane arterial roads.
Structural Benefit: The heavy-duty 350x350x14mm flange and deep 800mm M18 anchors keep the mast flawlessly vertical, easily resisting the continuous aerodynamic buffeting generated by passing commercial truck traffic.
Logistics Hubs & Port Terminals
Design Strategy: Industrial freight zones demand infrastructure that is as indestructible as it is functional, requiring wide-area illumination to guide 24/7 operations.
Structural Benefit: The massive square profile provides an exceptionally stable surface for mounting heavy PTZ security cameras or directional signage. The ≥85μm HDG zinc coating guarantees immunity to harsh industrial emissions and coastal salt spray.
