High Output 200W Epistar COB Flood Light Outdoor Wall Mount Luminaire 5-Year Warranty
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
| Material | Die-cast Aluminum + Tempered Glass |
Talk to Our Engineer Now

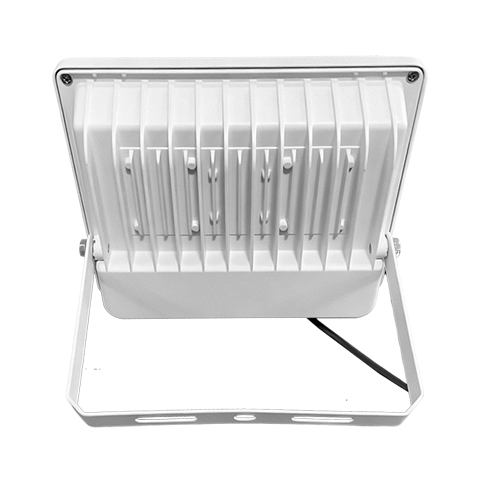

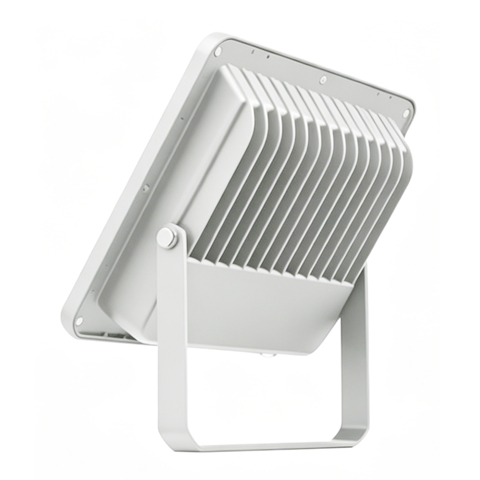

1. Industrial-Grade Thermal Management (200W)
Pushing 200W requires serious cooling. We bypassed standard thin housings and engineered a thickened die-cast aluminum body with prominent striped heat sinks. This robust thermal structure instantly pulls heat away from the quad-COB array, preventing thermal throttling and maintaining optimal brightness over its 50,000-hour lifespan.

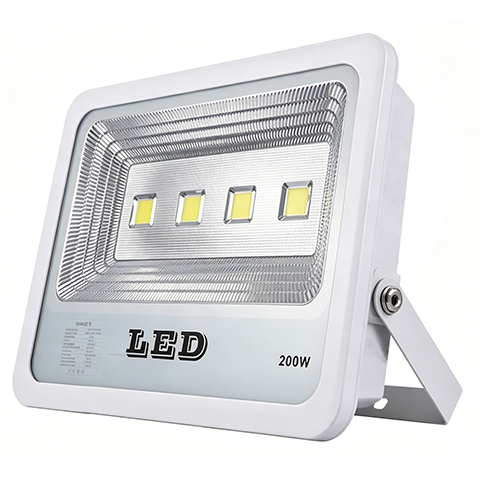

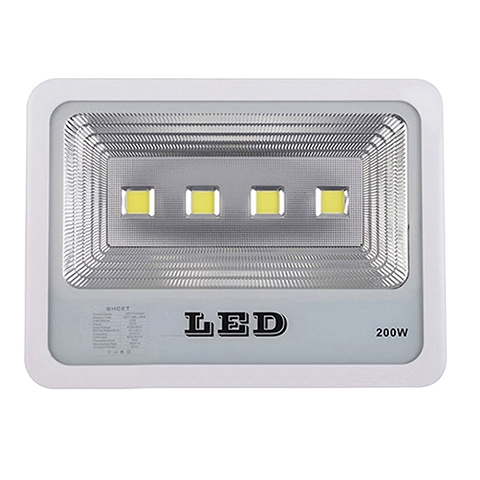

2. Quad Epistar COB Engine
Instead of using hundreds of small SMD chips that can create a distracting “multi-shadow” effect, this model utilizes four concentrated Chip-on-Board (COB) LEDs from Epistar. This quad layout provides a highly uniform, intense beam with superior center-beam punch, making it exceptional for throwing light across massive sports fields or logistics yards.
3. Tier-1 Drivers & Extreme 10KV Surge Protection
Fixtures mounted on high masts are prime targets for lightning strikes and grid voltage spikes. To prevent catastrophic power supply failure, we integrate Tier-1 drivers (Meanwell or Inventronics), paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits from 2.5KV up to a massive 10KV.

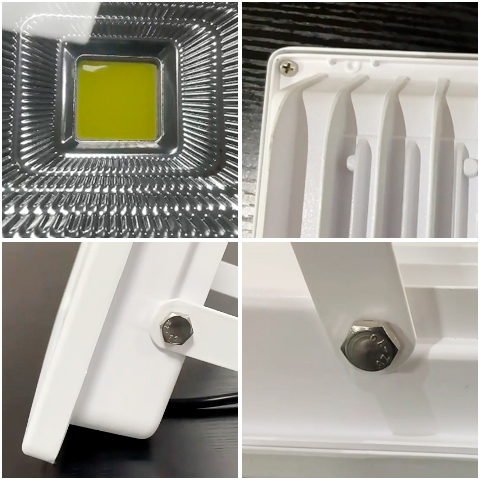

4. IP66 Dust & Waterproof Construction
Engineered for the harshest outdoor realities. The tempered glass face and waterproof silicon rubber gaskets are tightly compressed into the aluminum frame, achieving a strict IP66 rating. It is completely dust-tight and easily withstands high-pressure water jets during severe coastal storms or industrial facility washdowns.
| Model Number | DL01-A07A10-004 |
| Power Consumption | 200W |
| LED Chip Type | COB (Epistar) – Quad Array |
| Luminous Efficacy | 80-85 LM/1W ; 90-100 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70 |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Thickened Die-cast Aluminium + Tempered Glass, AL diffuser |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Product Dimensions | 428 x 328 x 65 mm |
| Installation Mounts | Wall, Ceiling, or Floor Mounted via Adjustable U-Bracket |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 200W COB Flood Light Excel?
At 200W, this fixture is designed to throw massive amounts of light over long distances. The extreme brightness and 10KV surge protection make it an absolute necessity for high-mast infrastructure and heavy industrial applications.
Sports Courts & Stadiums
Perfect for illuminating tennis courts, basketball courts, and football training pitches. The high lumen output of the four COB chips allows you to aim the light precisely across the playing field, while the 10KV SPD protects against lightning strikes on tall lighting masts.
Port Terminals & Logistics Hubs
Industrial freight zones demand uninterrupted lighting. The IP66 die-cast aluminum housing ensures the lights keep performing despite coastal salt spray, heavy rain, and direct exposure to the elements in open shipping yards.
Large Architectural Facades
Architects use this 200W fixture to uplight massive building exteriors or historical monuments from a significant distance. The pure COB light source provides a powerful, clean wash of light that highlights structural details beautifully without multi-shadow distortion.
