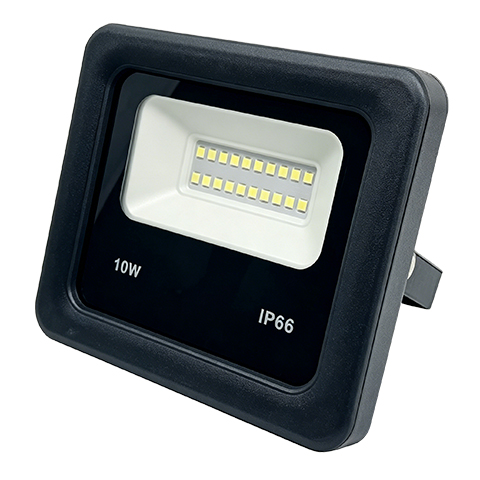

10W Outdoor LED Flood Light IP66 Waterproof SMD Fixture for Landscape
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
| Dimensions | 124 x 110 x 37 mm |

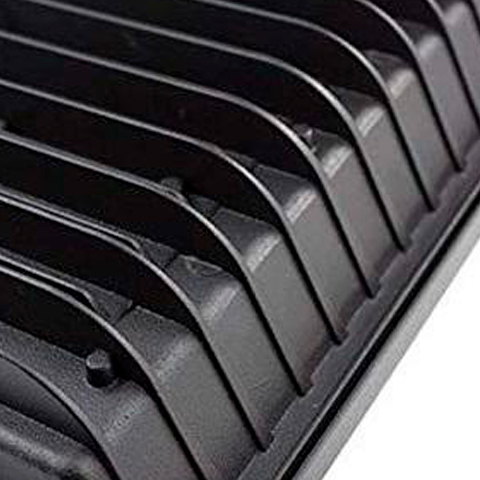

Talk to Our Engineer Now 1. Advanced Thermal Air Convection Design
Proper heat dissipation is crucial, even for 10W fixtures. This model features a thickening die-cast aluminum housing with a striped heat sink engineered for optimal thermal air convection. This scientific thermal management rapidly dissipates heat into the air, preventing LED degradation and ensuring the promised 50,000-hour lifespan.

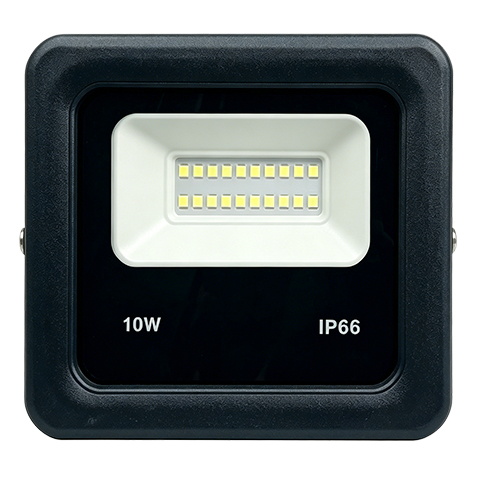

2. High-Efficiency SMD2835 LED Array
Unlike focused COB chips used for long-distance projection, this 10W fixture utilizes an advanced SMD2835 LED chip array. This layout produces a softer, highly uniform wash of light with high brightness (up to 120lm/W). It is perfect for close-range landscape illumination where harsh center-beam glare is undesirable.
3. Industrial-Grade Drivers & Surge Protection
We do not compromise on electrical components for lower wattage models. This 10W flood light integrates Tier-1 CE-EMC certified power supplies (Meanwell or Inventronics). Furthermore, it is paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits from 2.5KV up to a massive 10KV, guaranteeing stability in unstable grids.
4. Ultra-Compact IP66 Construction
Measuring only 124x110x37mm, this highly compact fixture can be hidden easily within landscaping or mounted discreetly on walls. The tempered glass and die-cast housing are completely sealed to a strict IP66 dustproof and waterproof rating, easily surviving heavy rain and automated garden sprinklers.
| Model Number | DL01-A07B10-001 |
| Power Consumption | 10W |
| LED Chip Type | SMD2835 (Uniform Surface Wash) |
| Luminous Efficacy | 90-100 LM/1W ; 110-120 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70 |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Die-cast Aluminium + Glass; PC diffuser or AL diffuser |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Product Dimensions | 124 x 110 x 37 mm |

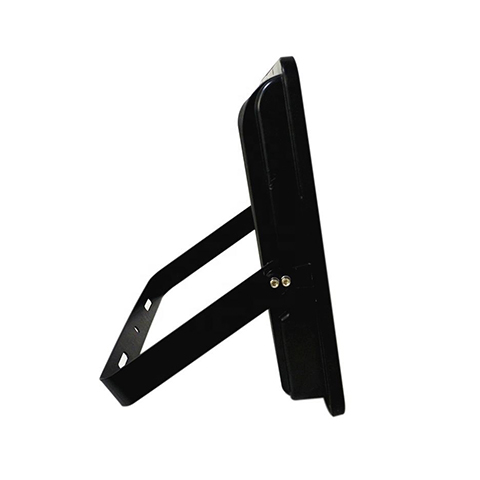

| Installation Mounts | Wall mounted, Ceiling mounted, Floor mounted via bracket |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 10W SMD Flood Light Excel?
The compact size, uniform SMD2835 light distribution, and industrial-grade surge protection make this 10W fixture the ultimate choice for precise, close-range illumination where bulky fixtures would ruin the aesthetic.
Landscape & Garden Uplighting
Measuring just 124mm wide, this fixture is easily hidden behind shrubs or rocks. The SMD2835 array provides a soft, wide wash of light perfect for uplighting trees, statues, or architectural features without blinding pedestrians. The IP66 rating easily handles automated garden sprinklers.
Commercial Signage & Storefronts

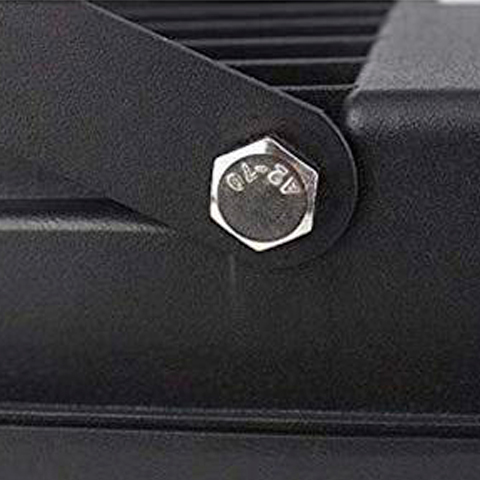

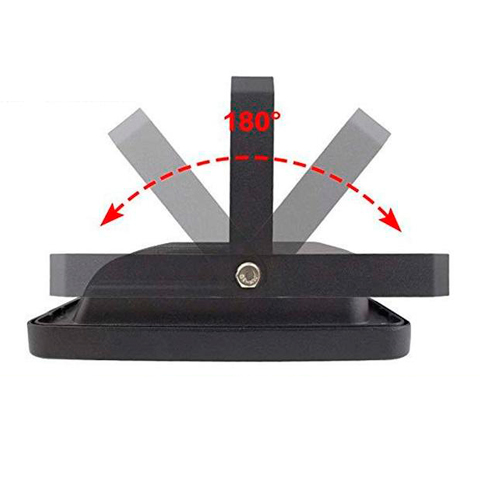

For small to medium-sized retail signs, 10W of high-efficacy LED light is often all that is needed. The included adjustable bracket allows for precise aiming to eliminate shadows, making logos pop clearly at night.
Residential Security & Pathways
Mounted under eaves or above garage doors, this 10W fixture offers brilliant security lighting. The industrial-grade 10KV SPD option ensures that standard residential grid fluctuations won’t cause premature driver burnouts, providing true “install and forget” peace of mind.
