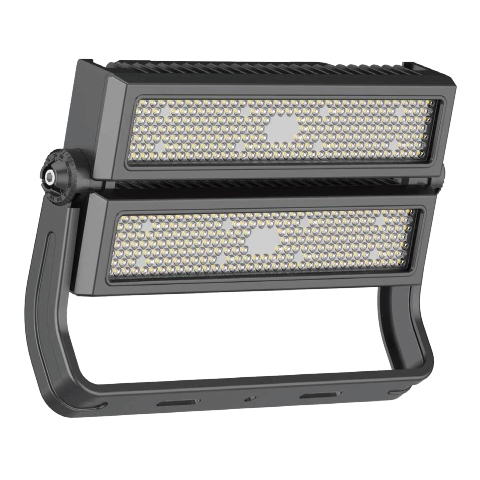

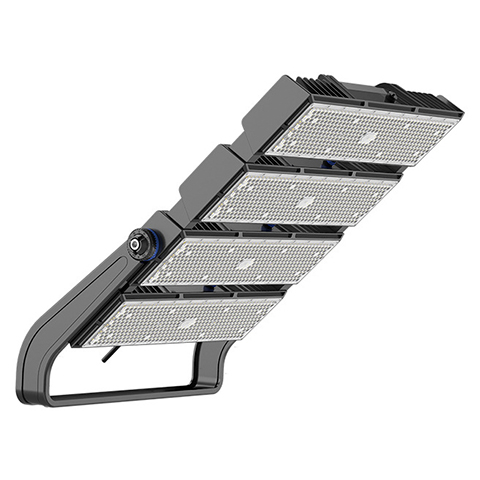

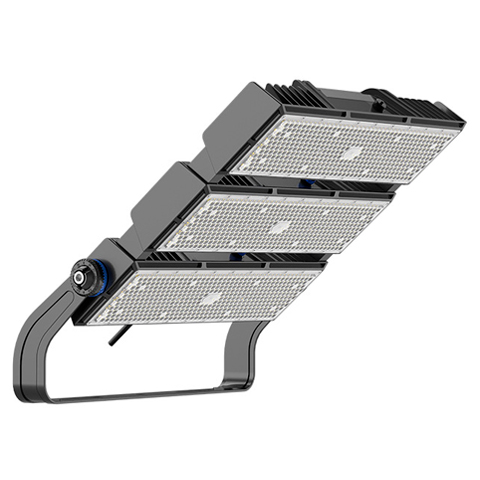

180lm W High Efficacy LED Stadium Light WF2 Anti Corrosion
| Max Efficacy | Up to 180 lm/W |
| Beam Angle | Symmetrical & Asymmetrical |
| Installation | 10° Steps, 270° Adjustable |
Talk to Our Engineer Now 1. High Efficacy Lighting Output
The fixture utilizes high-brightness 3030 and 5050 LED chip options, allowing the system to achieve a luminous efficacy of up to 180 lm/W. This high output capability significantly reduces energy consumption for facilities requiring 1000W to 1200W HID replacements.
2. WF2 Grade Coastal Protection

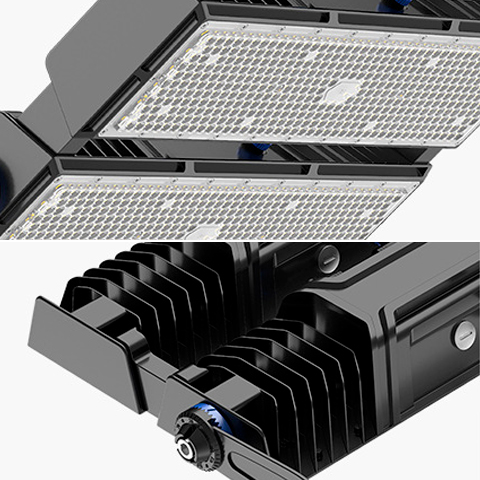

Constructed with an ADC12 aluminum die-casting housing and a high-strength cold-rolled plate bracket. The exterior undergoes a special corrosion treatment to reach the WF2 standard. An optional 4mm high-strength tempered glass cover is available to further reduce UV degradation and rust in harsh coastal areas.
3. Symmetrical & Asymmetrical Optics
Equipped with an IK08 rated polycarbonate lens, the light offers versatile distribution patterns. Options include symmetrical beams (30°/45°/60°/90°) and advanced asymmetrical profiles (140*80° / 120*40*60°), which are essential for minimizing light trespass and improving uniformity on sports fields.
4. Embedded Raceway & Racked Angle

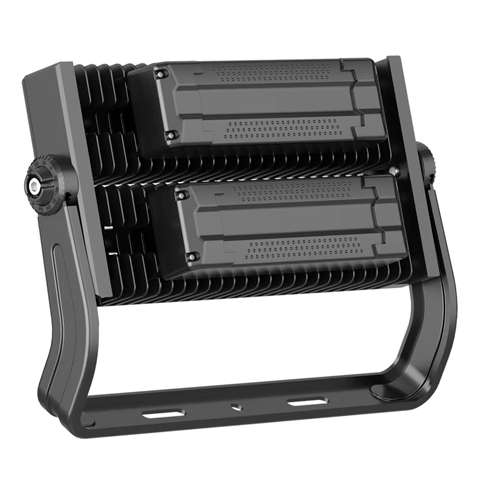

To optimize cable layout and protect wiring from environmental exposure, the design incorporates an embedded cable raceway. The mounting bracket features a racked angle mechanism with 10° steps, allowing for up to 270° of secure installation adjustment.
| Model Series | SPORTLUX™ Die-Casting Series |
| Available Wattage | 200W, 400W, 600W, 800W, 1000W, 1200W |
| Luminous Efficacy | Up to 180 lm/W (Based on 3030/5050 Chip Options) |
| Housing Material | ADC12 Aluminum Die-Casting |
| Anti-Corrosion Standard | WF2 (Suitable for coastal environments) |
| Beam Angle | Symmetrical: 30°/45°/60°/90° Asymmetrical: 140*80° / 120*40*60° |
| Lens Cover Options | Polycarbonate (IK08) / 4mm Tempered Glass |
| Input Voltage | AC100~277V |
| IP Rating | IP66 |
| Certifications | CE, CB, SAA, DLC |

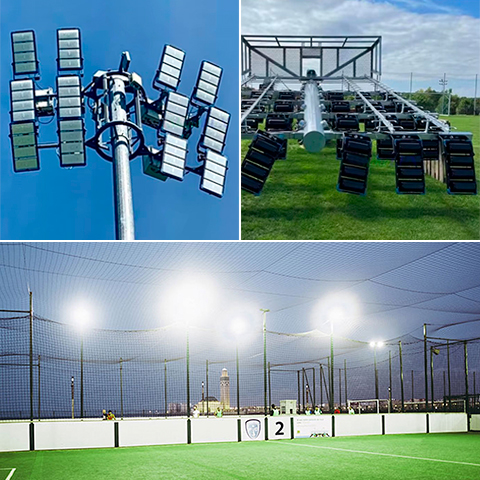

Ideal Applications & Optical Performance
Engineered for heavy-duty performance, this 180lm/W LED stadium light is the ultimate solution for large-scale and harsh environment illumination.
Coastal Seaports & Terminals
Thanks to the WF2 Anti-Corrosion treatment and ADC12 die-cast housing, this fixture easily withstands heavy salt spray and high humidity. It is the standard choice for port terminals, shipping yards, and coastal high mast lighting.
Professional Sports Arenas
Utilizing the Asymmetrical Lens (140*80° / 120*40*60°), it directs light precisely onto the playing field while minimizing glare and light trespass into spectator areas or adjacent residential zones. Perfect for football, cricket, and tennis courts.
Airport Aprons & Interchanges
For extremely large areas requiring high lumen output, the 180 lm/W efficacy ensures maximum ground illuminance from high mast poles (up to 1200W), drastically reducing the total number of fixtures needed and cutting energy costs.
