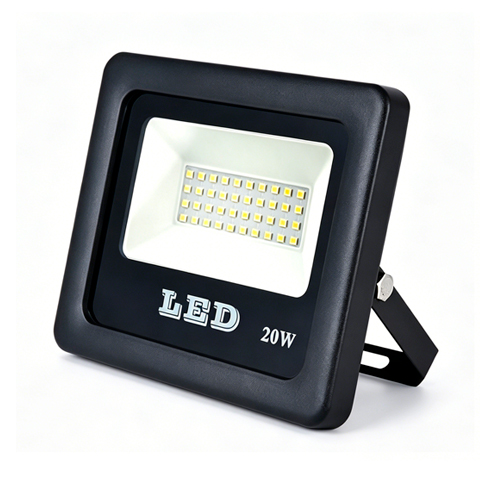

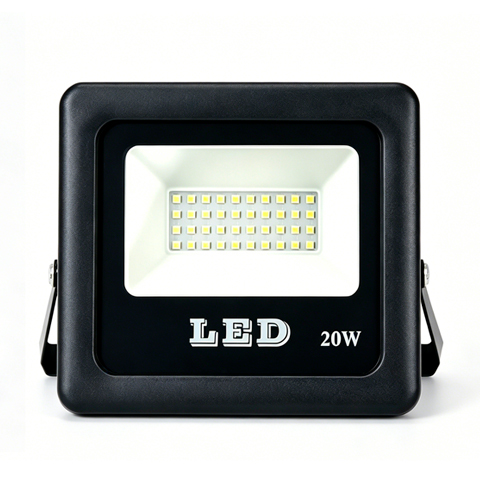

20W Outdoor LED Flood Light IP66 Waterproof SMD Fixture for Security
| LED Chip | SMD2835 |
| Driver | Meanwell / Inventronics / Dawn |
| Dimensions | 146 x 126 x 37 mm |

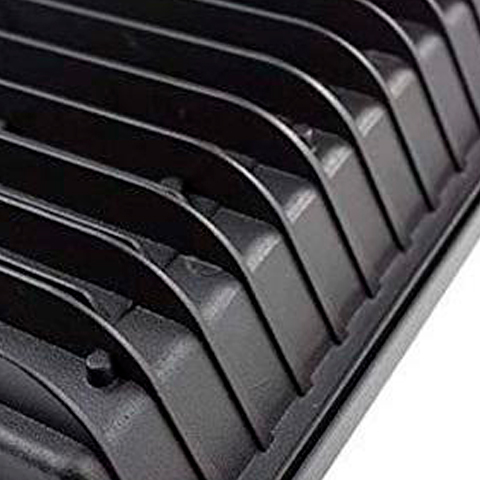

Talk to Our Engineer Now 1. Advanced Thermal Air Convection Design
Proper heat dissipation is crucial to LED longevity. This model features a thickening die-cast aluminum housing with a striped heat sink engineered for optimal thermal air convection. This scientific thermal management rapidly dissipates heat into the surrounding air, preventing LED degradation and ensuring the promised 50,000-hour lifespan.
2. High-Efficiency SMD2835 LED Array
Unlike highly focused COB chips, this 20W fixture utilizes an advanced SMD2835 LED chip array. This layout produces a softer, highly uniform wash of light with high brightness (up to 120lm/W). It is perfect for close-to-medium range architectural or landscape illumination where harsh center-beam glare is undesirable.
3. Industrial-Grade Drivers & Surge Protection
We do not compromise on electrical components for lower wattage models. This 20W flood light integrates Tier-1 CE-EMC certified power supplies (Meanwell, Inventronics, or Dawn). Furthermore, it is paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits from 2.5KV up to a massive 10KV, guaranteeing stability in unstable grids.
4. Ultra-Compact IP66 Construction
Measuring only 146x126x37mm, this highly compact fixture can be hidden easily within landscaping or mounted discreetly on eaves. The tempered glass and die-cast housing are completely sealed to a strict IP66 dustproof and waterproof rating, easily surviving heavy rain and automated garden sprinklers.
| Model Number | DL01-A07B10-002 |
| Power Consumption | 20W |
| LED Chip Type | SMD2835 (Uniform Surface Wash) |
| Luminous Efficacy | 90-100 LM/1W ; 110-120 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70 |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Die-cast Aluminium + Glass; PC diffuser or AL diffuser |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Product Dimensions | 146 x 126 x 37 mm |

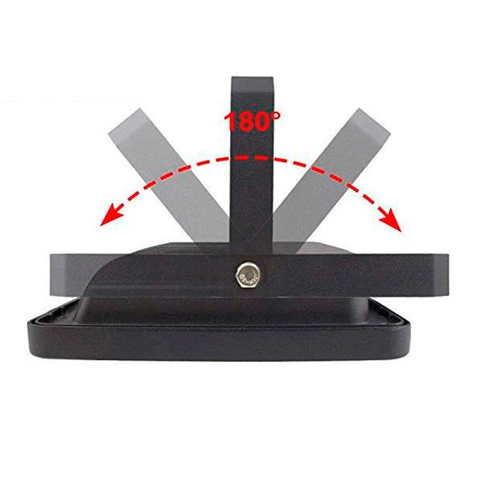

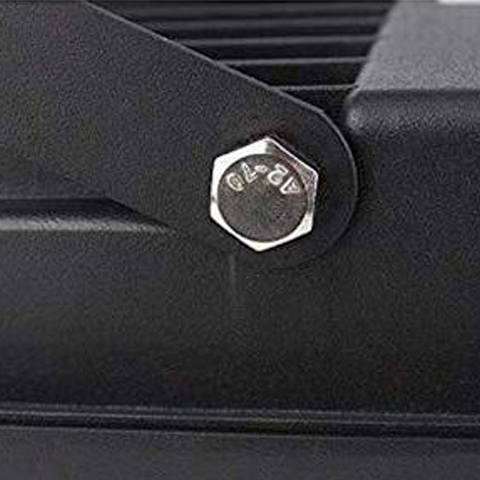

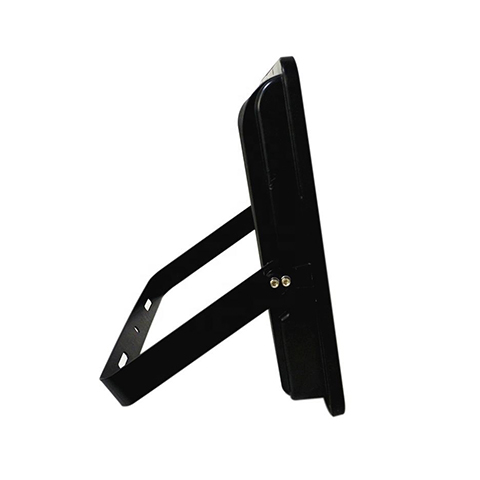

| Installation Mounts | Wall mounted, Ceiling mounted, Floor mounted via adjustable bracket |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 20W SMD Flood Light Excel?
The compact 146mm size, uniform SMD2835 light distribution, and industrial-grade surge protection make this 20W fixture the ultimate choice for precise, close-to-medium range illumination where bulky fixtures would disrupt the aesthetic.
Residential Security & Driveways
Mounted under eaves or above garage doors, this 20W fixture offers brilliant security lighting without blinding neighbors. The industrial-grade 10KV SPD option ensures that standard residential grid fluctuations won’t cause premature driver burnouts.
Commercial Signage & Storefronts
For small to medium-sized retail signs and boutique storefronts, 20W of high-efficacy SMD LED light is perfect. The even light distribution eliminates harsh hot spots, making logos and architectural textures pop clearly at night.
Landscape & Garden Uplighting
Measuring just 146mm wide, this fixture is easily hidden behind shrubs or retaining walls. The SMD array provides a soft, wide wash of light perfect for uplighting trees or monuments, while the IP66 rating easily handles automated garden sprinklers and heavy rain.
