3M Decorative Aluminum Pole 60mm Top Diameter 2.0mm Thickness

Manufactured for durability and modern aesthetics, this 3M Aluminum Tapered Light Pole is an ideal structural support for residential, pathway, and landscape lighting. Measuring 3 meters in height, the pole features a seamless conical design with a top diameter of Ø60mm and a robust bottom diameter of Ø120mm. Fabricated with a 2.0mm wall thickness and finished with a high-quality powder coating, it guarantees exceptional corrosion and rust resistance for over 25 years. The pole includes a welded flange plate and anchor bolts for secure and straightforward ground installation.

Diameters	Top: Ø60mm / Bottom: Ø120mm
Wall Thickness	2.0mm
Flange Plate	230 x 230 x 8mm

View Features

Data Sheet:

3M Decorative Aluminum Pole 60mm Top Diameter 2.0mm Thickness-DL01-A01D03-001

Talk to Our Engineer Now

*Motor detailed config can be customized according to customer's requests, like voltage, speed, as well as shaft length and shape...

Features

Specifications

Applications

Features

1. Precision Tapered Design (3M)

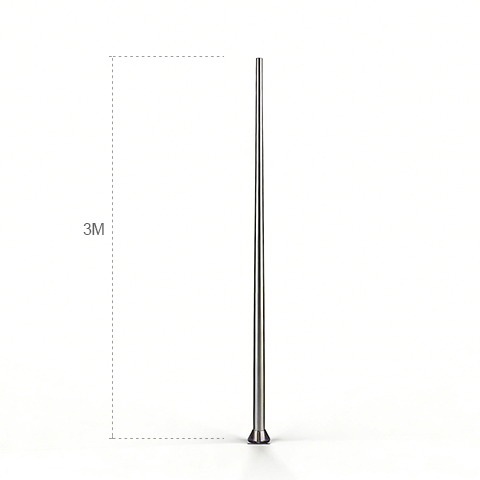

This 3-meter (approx. 10ft) light pole utilizes a refined tapered structure, gradually reducing from a Ø120mm bottom base to a standard Ø60mm top tenon. This aerodynamic conical shape significantly reduces wind load while providing a sleek, modern appearance suitable for diverse architectural styles.

2. >25 Years Exceptional Rust Resistance

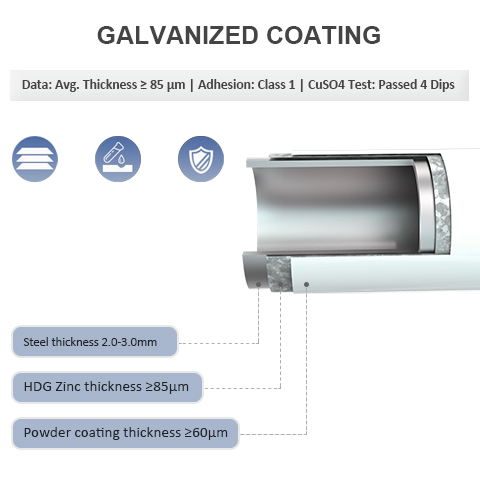

Engineered for long-term outdoor deployment, the pole undergoes a rigorous surface finishing process including a premium powder coating exceeding 60um in thickness. This advanced treatment ensures exceptional corrosion and rust resistance, guaranteeing a service life of over 25 years even in challenging weather conditions.

3. Secure Flange Base Mounting

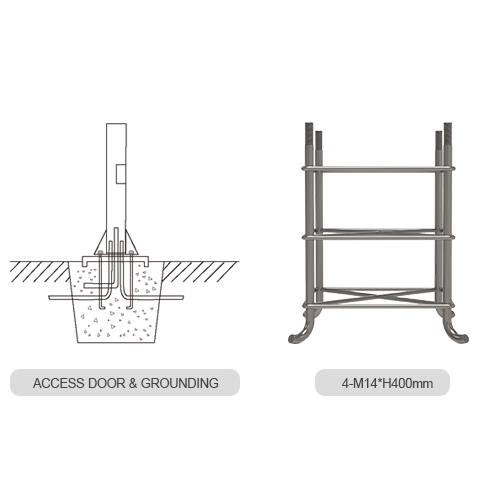

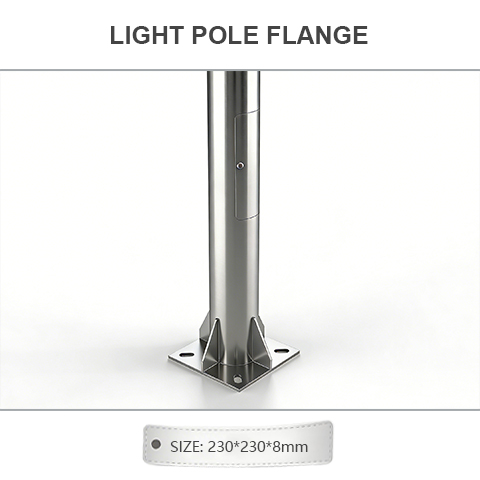

Installation is made reliable and straightforward via a heavy-duty 230*230*8mm flange plate seamlessly welded to the pole’s base. The package includes four M14 (H400mm) anchor bolts, providing maximum structural stability against dynamic wind loads.

4. Advanced Spinning Production Process

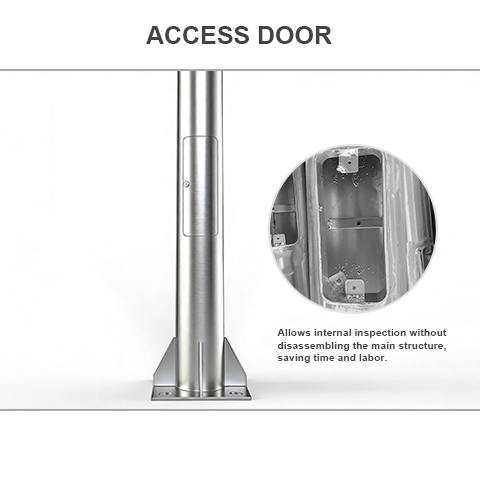

Manufactured through an advanced spinning process and subsequent heat treatment, the 2.0mm thick wall maintains uniform density and high tensile strength. An integrated access door is also included for convenient electrical wiring and maintenance.

Specifications

Model No.	DL01-A01D03-001
Pole Height	3M
Top Diameter	Ø60mm
Bottom Diameter	Ø120mm
Wall Thickness	2.0mm
Flange Plate Size	230 * 230 * 8mm
Anchor Bolts	4-M14 H400mm
Surface Finishing	Powder Coating (>60um thickness)
Color	Customization Available
Warranty	> 20 Years

Applications

Ideal Applications for 3M Lighting Poles

At a height of 3 meters, this tapered pole is perfectly scaled for pedestrian-centric environments, offering structural integrity without dominating the landscape.

Pedestrian Pathways & Sidewalks

The 3-meter height is ideal for mounting post-top luminaires along walkways. It provides sufficient downward illumination for pedestrian safety while maintaining a human-scale architectural presence in urban environments.

Residential Gardens & Courtyards

Featuring a modern tapered conical design, this pole blends seamlessly into high-end residential landscaping. The customizable powder coating ensures the pole matches the specific color scheme of private driveways and courtyards.

Public Parks & Plazas

Public spaces require low-maintenance infrastructure. Supported by dynamic wind load analysis and offering >25 years of corrosion resistance, this pole guarantees decades of safe and rust-free performance in community parks.
