3M Straight Round Light Pole 76mm Uniform Diameter Steel
| Diameter | Constant Ø76mm (Straight Tube) |
| Wall Thickness | 2.0mm Standard |
| Foundation | 200x200x8mm Flange / 4-M14 (H400mm) Bolts |

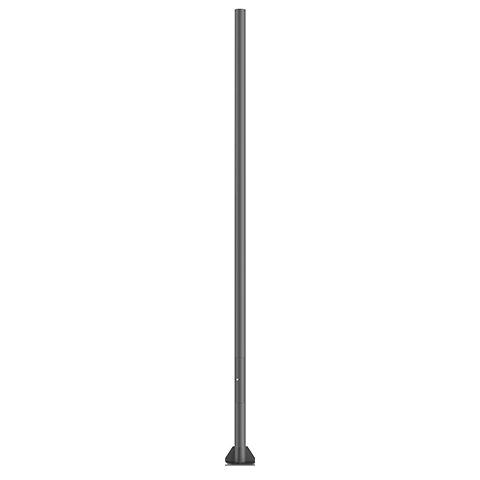

Talk to Our Engineer Now 1. Minimalist Straight Round Profile (Constant Ø76mm)
Diverging from traditional stepped or tapered designs, this architectural mast features a completely straight, uniform profile. The continuous Ø76mm diameter from base to finial delivers an ultra-clean, minimalist aesthetic favored by contemporary landscape architects. Fabricated from Q235B steel with a 2.0mm wall thickness, it provides optimal structural integrity for low-elevation, post-top luminaires without visual clutter.

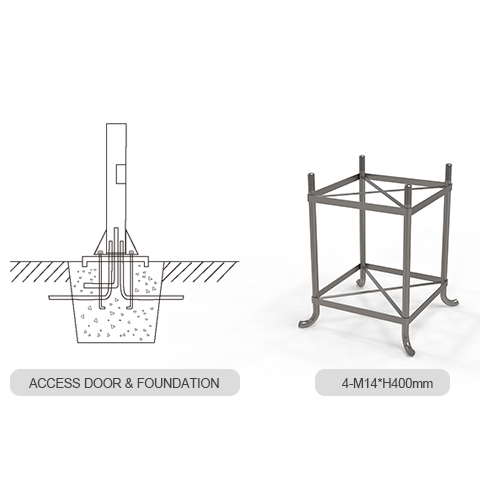

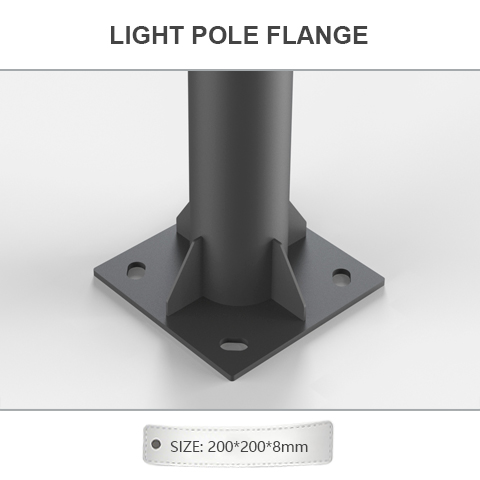

2. Concealed 200mm Flange Anchoring
At a pedestrian-scale height of 3 meters, stability is achieved without oversized, unsightly foundations. The base relies on a perfectly proportioned 200x200mm square flange plate (8mm thick). The anchoring system includes four M14 foundation bolts with a 400mm embedment depth, allowing for a highly secure installation that can be easily concealed beneath pavers or landscaping.

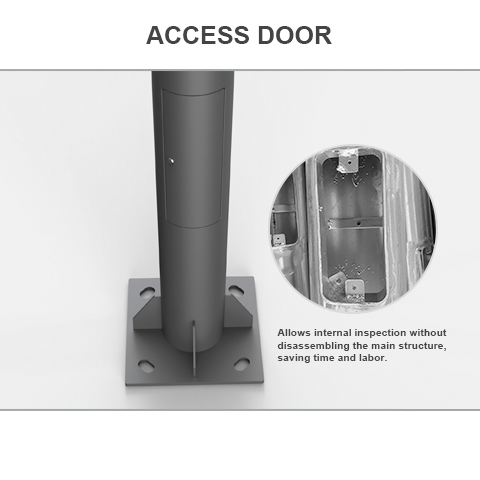

3. Flush Electrical Access Compartment
To maintain the uninterrupted cylindrical flow of the pole, it is equipped with a precision laser-cut flush access door. This highly weatherproof compartment provides safe housing for electrical terminal blocks and miniature circuit breakers (MCBs). An internal grounding lug is welded directly to the steel core, ensuring full compliance with international pedestrian safety and earth bonding codes.

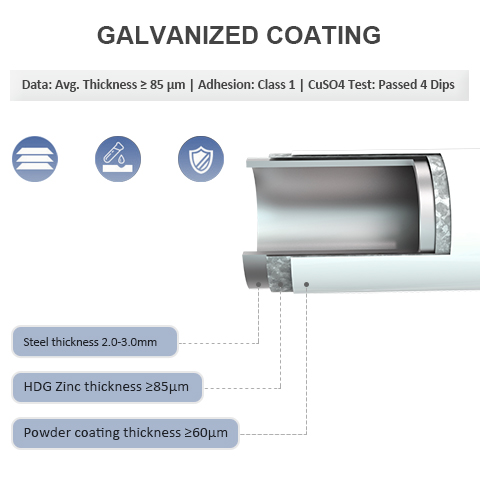

4. HDG (≥85μm) & Architectural Powder Coating
To protect against soil moisture, irrigation spray, and humidity, the entire steel column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy metallurgical zinc barrier of ≥85μm. A secondary electrostatically applied architectural powder coating (≥60μm) seals the surface, offering superior UV resistance and guaranteeing a rust-free lifespan exceeding 25 years.
| Model Reference | DL01-A01A03-013 |

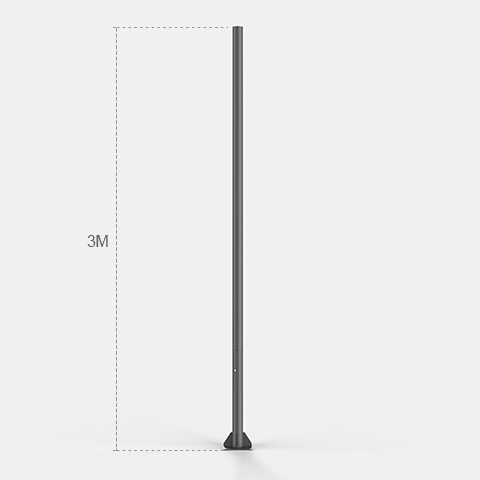

| Pole Height | 3M (Approx. 9.84FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Straight Round Tubular (Non-Tapered) |
| Pole Diameter | Constant Ø76mm (Top to Bottom) |
| Structural Wall Thickness | 2.0mm Standard |
| Base Flange Dimensions | 200 * 200 * 8mm |
| Anchor Bolt Spec | 4 Pieces – M14 (H400mm Embedment) |
| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Architectural Landscape Applications for 3M Straight Poles
At a pedestrian-scale height of 3 meters (10ft), the sleek, uninterrupted cylinder of this straight round mast is explicitly chosen by landscape architects who demand geometric purity. It serves as a subtle architectural element rather than a pure utility fixture.
Architectural Courtyards & Museums
Design Strategy: Cultural institutions and modern office courtyards favor straight poles over tapered ones because the uniform Ø76mm cylinder perfectly matches the diameter of many high-end cylindrical LED post-top fixtures, creating a seamless, one-piece luminaire aesthetic without any “necking” transition.
Structural Benefit: The flush access door hides wiring completely, ensuring the pure cylindrical geometry is never visually disrupted by external junction boxes.
Luxury Residential Pathways
Design Strategy: A 3-meter elevation provides intimate, low-glare pathway illumination that safely guides pedestrians without causing light trespass into the ground-floor bedroom windows of adjacent luxury homes.
Structural Benefit: The strictly enforced ≥85μm HDG zinc coating guarantees the pole will not suffer from rust blooming at the base, even with daily exposure to highly acidic fertilizer and automated lawn sprinkler systems.
Premium Public Parks & Promenades
Design Strategy: Parks require robust lighting that blends into the natural canopy. The slender 76mm profile virtually disappears against tree trunks during the day, maintaining the organic feel of the park.
Structural Benefit: The Q235B steel construction and deep 400mm M14 anchor bolts ensure the pole can withstand minor impacts from landscaping equipment and heavy public foot traffic without leaning or failing.
