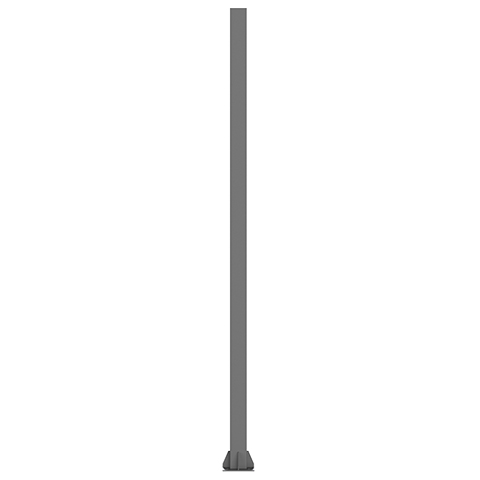

3M Straight Square Light Pole 80mm Uniform SHS Steel
| Dimension | Constant 80x80mm (Straight Square) |
| Wall Thickness | 2.0mm Standard |
| Foundation | 200x200x8mm Flange / 4-M14 (H400mm) Bolts |
Talk to Our Engineer Now 1. Pure Linear Aesthetic (Constant 80x80mm SHS)
Diverging from both tapered and round profiles, this architectural mast utilizes a completely straight Square Hollow Section (SHS). The uniform 80x80mm dimension from base to finial delivers an ultra-clean, geometric aesthetic that mirrors the linear language of modern building facades. The flat planes also offer exceptional torsional rigidity compared to round poles.

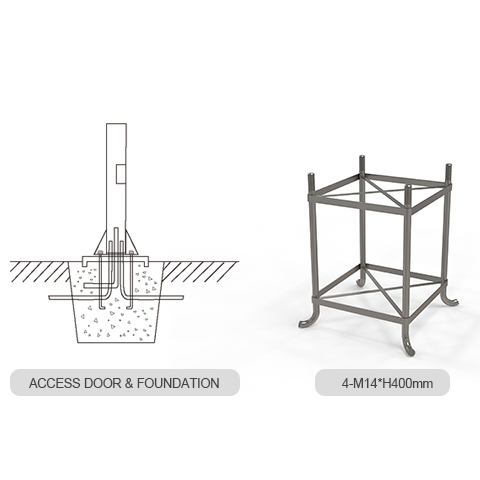

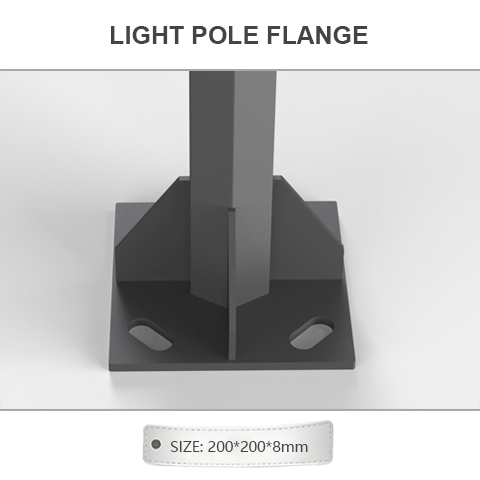

2. Unobtrusive 200mm Flange Anchoring
At a pedestrian-scale height of 3 meters, visual purity is paramount. The base relies on a tightly proportioned 200x200mm square flange plate (8mm thick) that aligns perfectly with the pole’s geometry. The anchoring system includes four M14 foundation bolts with a 400mm embedment depth, allowing for a highly secure installation that can easily be concealed beneath plaza pavers.

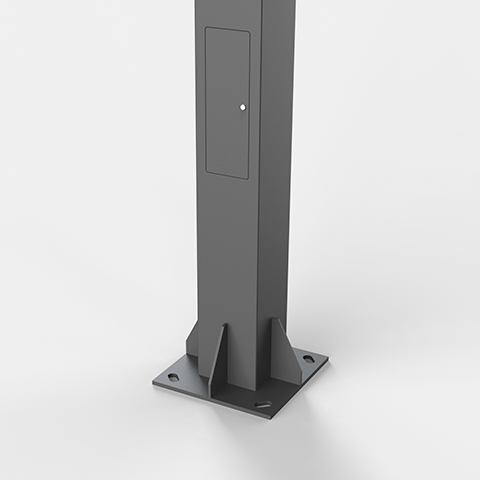

3. Precision Flush Access Compartment
To maintain the uninterrupted flat surfaces of the square mast, it is equipped with a precision laser-cut flush access door. This highly weatherproof compartment provides safe housing for electrical terminal blocks and miniature circuit breakers (MCBs). An internal grounding lug is welded directly to the steel core, ensuring full compliance with pedestrian safety codes.

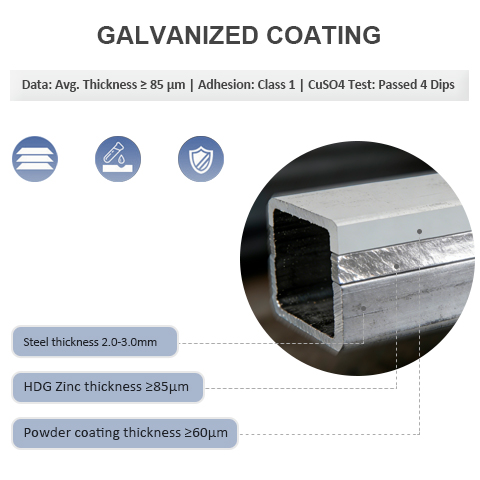

4. Superior Edge Protection (HDG ≥85μm)
The sharp 90-degree corners of square poles are historically vulnerable to premature coating wear. To completely eliminate this risk, the entire column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy, metallurgical zinc barrier of ≥85μm. This is followed by an architectural powder coating (≥60μm), guaranteeing superior edge protection and decades of rust-free service.
| Model Reference | DL01-A01A03-020 |

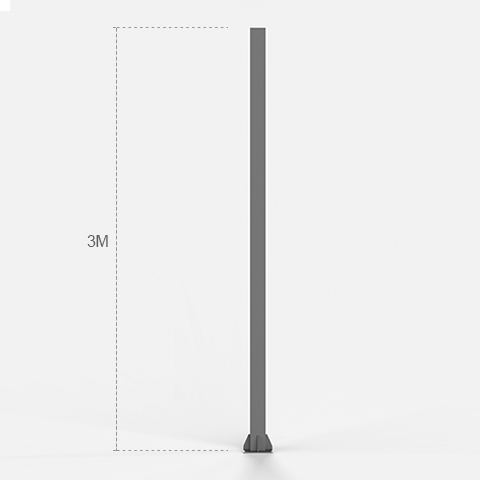

| Pole Height | 3M (Approx. 9.84FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Straight Square Hollow Section (Non-Tapered SHS) |
| Pole Dimension | Constant 80 x 80mm (Top to Bottom) |
| Structural Wall Thickness | 2.0mm Standard |
| Base Flange Dimensions | 200 * 200 * 8mm |
| Anchor Bolt Spec | 4 Pieces – M14 (H400mm Embedment) |
| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Architectural Landscape Applications for 3M Straight Square Poles
At an intimate pedestrian height of 3 meters (10ft), the sharp, uninterrupted 80x80mm lines of this straight square mast are chosen by landscape architects to deliberately echo the geometry of modern architecture, creating a cohesive visual environment.
Modern Retail & Civic Plazas
Design Strategy: Contemporary plazas favor straight square poles because the 80x80mm uniform dimension perfectly aligns with modern rectangular LED luminaires. It creates a striking, continuous “T” or “L” shape without any stepped transitions.
Structural Benefit: The flat planes of the square mast provide an ideal, level surface for seamlessly mounting security cameras or directional signage, ensuring perfectly parallel alignments with walkways.
Luxury Residential Pathways
Design Strategy: A 3-meter elevation provides subtle, low-glare illumination that guides pedestrians while maintaining the privacy of ground-floor residents.
Structural Benefit: The heavily protected HDG zinc coating (≥85μm) ensures that the pole’s sharp geometric corners will not succumb to rust, even with daily exposure to highly acidic fertilizer and automated lawn sprinkler systems in manicured gardens.
Museums & Architectural Parks
Design Strategy: Cultural institutions demand lighting hardware that acts as minimalist modern art. The straight square profile removes all visual clutter.
Structural Benefit: The compact 200x200mm base is easily hidden below decorative stone pavers, while the flush access door keeps electrical components completely out of sight.
