400W Outdoor LED Flood Light IP66 Waterproof COB Fixture for Stadiums and Ports

Model: DL01-A07A10-011 When scaling to a massive 400W output for professional stadium and deep-water port illumination, superior thermal management is absolutely mandatory. The DL01-A07A10-011 is our ultra-high-power LED flood light, engineered with a colossal 651x400x70mm thickened die-cast aluminum housing. This dense thermal mass uses deep striped heat sinks to rapidly cool the 8-array Epistar COB engine, guaranteeing zero thermal throttling and up to 100lm/W efficacy over a 50,000-hour lifespan. It requires no warm-up time, providing instant-start brilliance. Sealed to a strict IP66 waterproof rating, it easily survives coastal typhoons. To ensure flawless electrical stability on 30-meter high masts, it integrates Tier-1 drivers (Meanwell or Inventronics) with robust 10KV Surge Protection Devices (SPD).

Driver	Meanwell / Inventronics / Dawn
IP Rating	IP66 Waterproof
Dimensions	651 x 400 x 70 mm

View Features

Data Sheet:

400W LED Flood Light

Talk to Our Engineer Now

*Motor detailed config can be customized according to customer's requests, like voltage, speed, as well as shaft length and shape...

Features

Specifications

Applications

Features

1. Extreme Thermal Mass for 400W Output

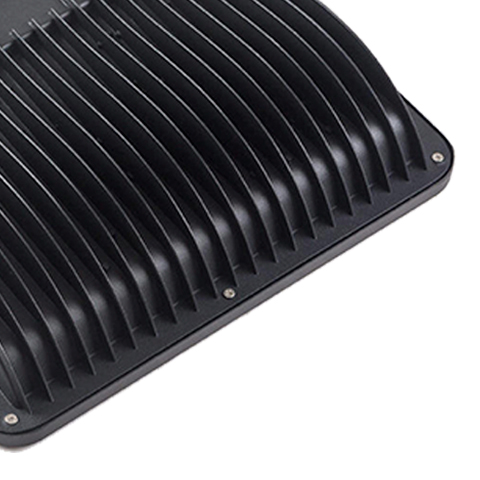

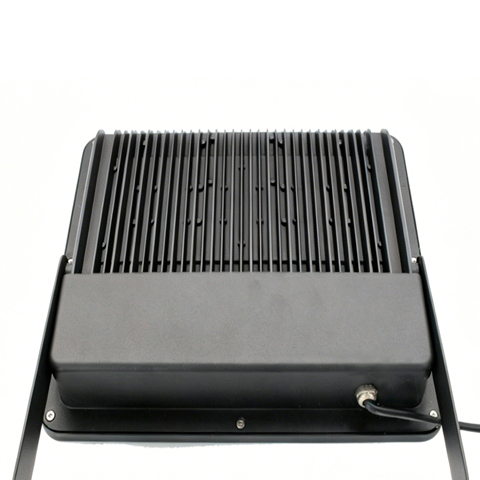

Pushing 400W creates brutal thermal loads. We engineered this fixture with a colossal 651x400mm thickened die-cast aluminum body featuring aggressive striped heat sinks[cite: 5]. This massive thermal structure instantly pulls heat away from the COB array, entirely preventing LED degradation and ensuring zero light decay over its 50,000-hour rated lifespan.

2. 8-Array Epistar COB Engine & Instant Start

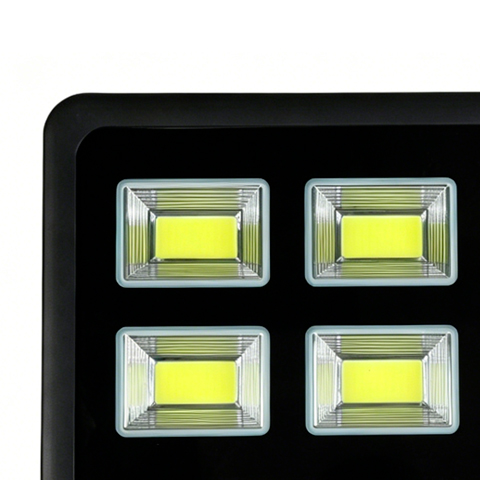

This model utilizes an 8-array of concentrated Chip-on-Board (COB) LEDs from Epistar. Unlike 1000W+ metal halide lamps that require a 15-minute warm-up, this 400W LED fixture starts and restarts immediately at full brightness. It delivers up to 75% energy savings while throwing a highly uniform, intense beam across massive distances.

3. Tier-1 Drivers & 10KV High-Mast Protection

Replacing a 400W fixture on a 30-meter mast is incredibly expensive. To prevent catastrophic power supply failures from lightning strikes, we integrate Tier-1 power supplies (Meanwell or Inventronics). These are paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits up to a massive 10KV.

4. IP66 Dust & Waterproof Construction

Engineered for the absolute harshest outdoor realities. The tempered glass face and waterproof silicon rubber gaskets are tightly compressed into the aluminum frame, achieving a strict IP66 rating. It is completely dust-tight and easily withstands high-pressure water jets during severe coastal typhoons.

Specifications

Model Number	DL01-A07A10-011
Power Consumption	400W (Ultra-Heavy Duty)
LED Chip Type	COB (Epistar) – 8-Chip Array
Luminous Efficacy	80-85 LM/1W ; 90-100 LM/1W Options
Driver Options	Meanwell / Inventronics / Dawn (CE-EMC)
Input Voltage	AC85-305V / AC165-277V
Power Factor (PF) & Ra	PF > 0.90 / Ra > 70
Surge Protection (SPD)	2.5KV / 4KV / 6KV / 10KV Options
Housing Material	Thickened Die-cast Aluminium + Tempered Glass, PC diffuser
IP Rating	IP66 (Dustproof & Waterproof)
Product Dimensions	651 x 400 x 70 mm
Installation Mounts	Wall mounted, Ceiling mounted, Floor mounted via heavy bracket
Lifespan & Warranty	50,000 Hours / 3-5 Years Warranty

Applications

Where Does This 400W COB Flood Light Excel?

At a massive 400W, this fixture is designed purely for extreme projection and high-mast infrastructure. The intense brightness, 8-COB array punch, and 10KV surge protection make it an absolute necessity for mega-industrial and professional stadium applications.

Professional Sports Stadiums

Engineered for illuminating full-size soccer pitches, athletic tracks, and major arenas. The massive lumen output allows you to mount the lights on 30-40 meter masts and still aim the light precisely across the playing field, while the 10KV SPD protects against direct lightning strikes.

Deep Water Ports & Rail Yards

Heavy industrial freight zones demand intense, uninterrupted lighting to operate heavy machinery safely at night. The IP66 die-cast aluminum housing ensures the lights keep performing despite coastal salt spray and direct exposure to the elements.

Airport Tarmacs & Mega-Parking

Aviation and civil engineers specify this 400W fixture to wash massive expanses of concrete from a significant distance. The 8-COB light source provides a powerful, clean wash of light that highlights ground-level logistics activities safely and restarts instantly if grid power fluctuates.
