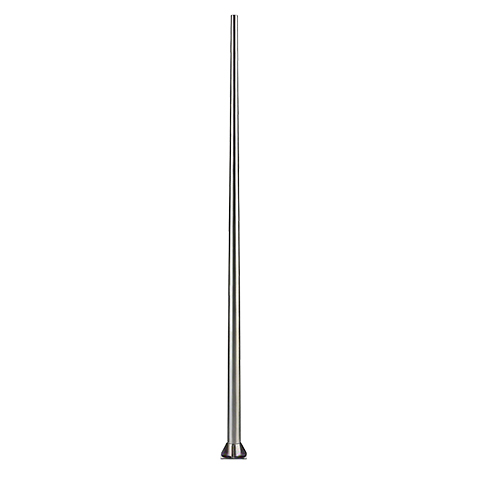

4M Aluminum Tapered Light Pole Manufacturer Powder Coated
| Diameters | Top: Ø60mm / Bottom: Ø120mm |
| Wall Thickness | 2.0mm |
| Warranty | >20 Years |
Talk to Our Engineer Now 1. Professional 4M Tapered Design

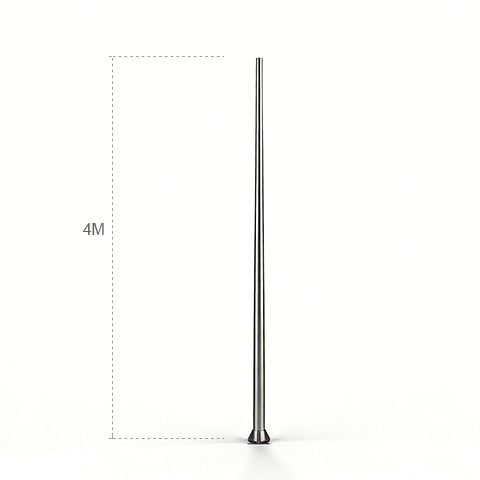

Standing at 4 meters (approx. 13ft), this light pole utilizes a refined tapered structure, reducing from a Ø120mm bottom base to a standard Ø60mm top tenon. This aerodynamic conical shape significantly reduces wind load while providing the perfect height for illuminating wider pathways and community roads.
2. >25 Years Exceptional Rust Resistance

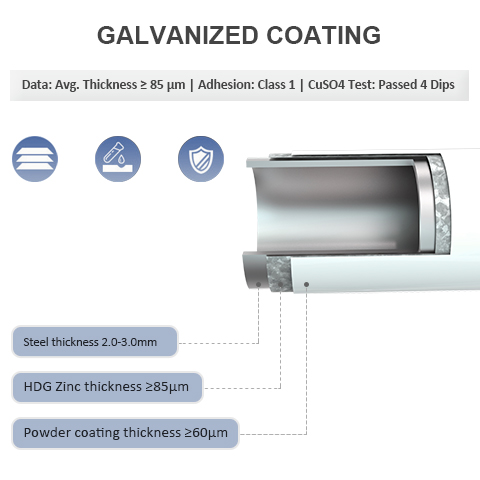

Engineered for long-term outdoor deployment, the pole undergoes a rigorous surface finishing process including a premium powder coating exceeding 60um in thickness. This advanced treatment ensures exceptional corrosion and rust resistance, guaranteeing a service life of over 25 years.
3. Secure Flange Base Mounting

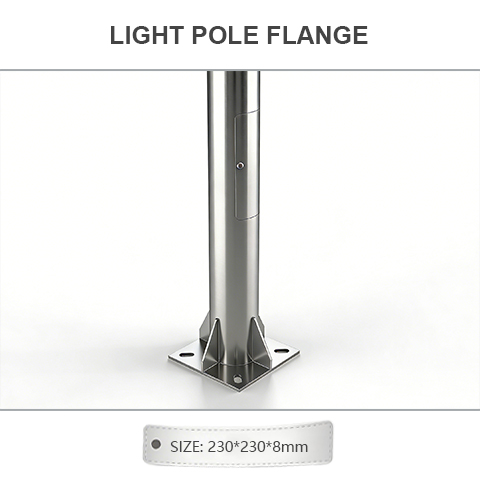

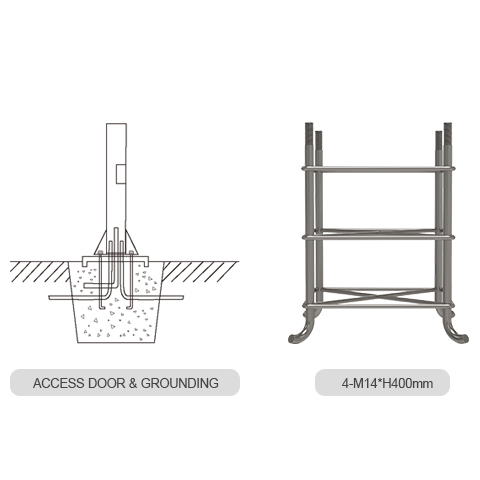

Installation is made reliable and straightforward via a heavy-duty 230*230*8mm flange plate seamlessly welded to the pole’s base. The package includes four M14 (H400mm) anchor bolts, providing maximum structural stability against dynamic wind loads.
4. Advanced Spinning Production Process

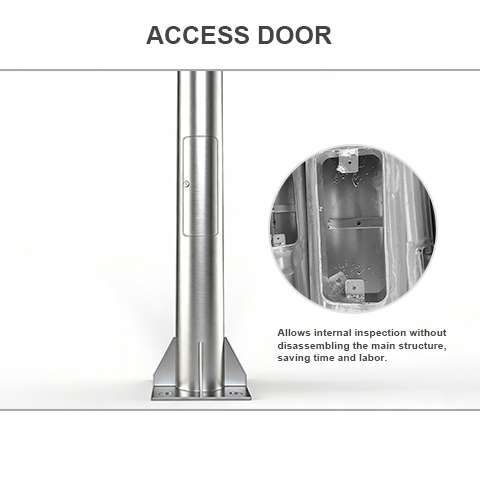

Manufactured through an advanced spinning process and subsequent heat treatment, the 2.0mm thick wall maintains uniform density and high tensile strength. An integrated access door is also included for convenient electrical wiring and maintenance.
| Model No. | DL01-A01D03-002 |
| Pole Height | 4M |
| Top Diameter | Ø60mm |
| Bottom Diameter | Ø120mm |
| Wall Thickness | 2.0mm |
| Flange Plate Size | 230 * 230 * 8mm |
| Anchor Bolts | 4-M14 H400mm |
| Surface Finishing | Powder Coating (>60um thickness) |
| Color | Customization Available |
| Warranty | > 20 Years |
Ideal Applications for 4M Lighting Poles
At a height of 4 meters (13ft), this tapered pole offers the perfect balance between broad illumination coverage and landscape integration, making it ideal for light-traffic and commercial areas.

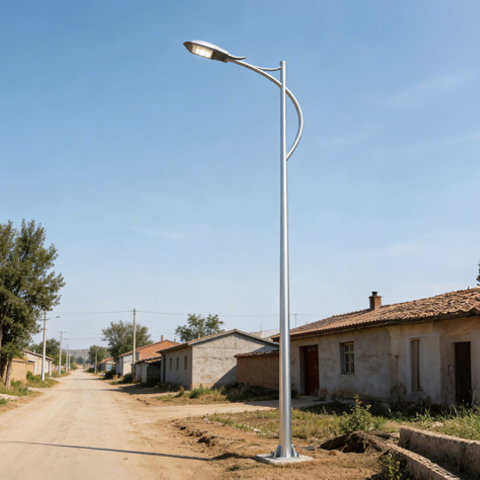

Community & Residential Roads
The 4-meter height is the standard choice for secondary residential roads. It provides sufficient height for LED post-top fixtures to cast a wide, uniform beam across both the sidewalk and the street, ensuring driver and pedestrian safety.
Commercial Plazas & Small Parking Lots
Built to withstand dynamic wind loads, this robust 2.0mm thick aluminum pole serves as a reliable foundation for illuminating commercial building perimeters, retail plazas, and boutique parking areas.
Public Parks & Campuses
For universities and large parks, minimizing maintenance is crucial. Thanks to the high-quality powder coating and >25 years of rust resistance, these poles drastically lower infrastructure upkeep costs over their lifespan.
