50W Outdoor LED Flood Light IP66 Anti-Corrosion COB Security Fixture
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
| Material | Die-cast Aluminum + Professional Powder Coating |
Talk to Our Engineer Now 1. Professional Anti-Corrosion Coating

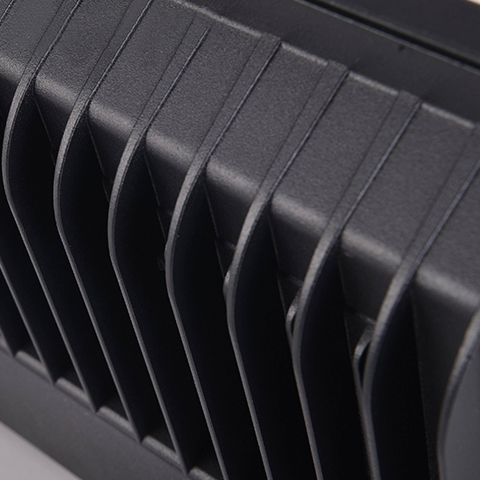

Outdoor fixtures are constantly attacked by rain, humidity, and pollution. This model utilizes a thickened die-cast aluminum housing finished with a professional outdoor powder coating. This provides superior corrosion and rusting resistance, keeping the fixture looking pristine while protecting internal components.
2. Instant Start & Massive Energy Savings
Unlike traditional electrified discharge lamps that suffer from light fading and delays, this LED flood light requires absolutely no warm-up time. It starts and restarts immediately. By utilizing high-brightness Epistar COB chips, it achieves energy savings of up to 75% compared to standard incandescent lamps.
3. Tier-1 Drivers & Extreme 10KV Surge Protection
To prevent catastrophic power supply failure caused by lightning strikes or grid voltage spikes, we integrate Tier-1 power supplies (Meanwell or Inventronics). These are paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits from 2.5KV up to a massive 10KV.
4. High Visible Light Ratio & IP66 Rating
Equipped with an advanced optical lens and PC diffuser, the emitted light boasts a visible light ratio of over 80% for excellent visual clarity. The entire assembly is tightly sealed to achieve a strict IP66 dustproof and waterproof rating, allowing it to be used in various harsh environments.
| Model Number | DL01-A07A10-006 |
| Power Consumption | 50W |
| LED Chip Type | COB (Epistar) |
| Luminous Efficacy | 80-85 LM/1W ; 90-100 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70 (Option for Ra > 80) |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Die-cast Aluminium + Glass, PC diffuser |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Product Dimensions | 230 x 195 x 57 mm |

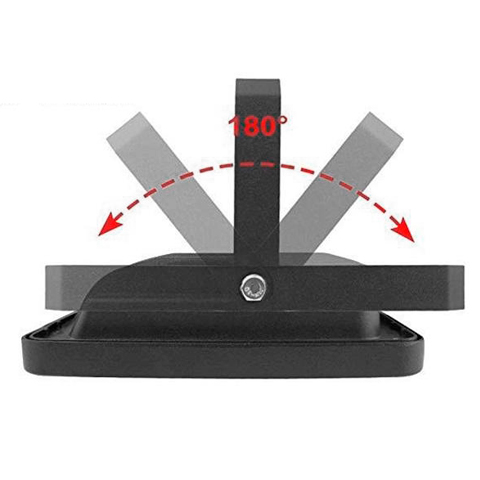

| Installation Mounts | Wall mounted, Ceiling mounted, Floor mounted |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 50W Anti-Corrosion Flood Light Excel?
The professional outdoor powder coating and instant-start capability make this 50W fixture highly versatile. It is built to withstand harsh weather while providing immediate, reliable illumination for both security and architectural enhancement.
Perimeter Security Lighting
Because it requires zero warm-up time and restarts immediately, it is perfect for integrating with motion sensors in residential backyards or factory perimeters, instantly flooding the area with light when triggered.
Coastal & Industrial Exteriors
The specialized outdoor powder coating provides high resistance to rust and corrosion. This makes it an ideal solution for mounting on exterior walls in high-humidity areas, near coastlines, or in heavily polluted industrial zones.
Signage & Landscape Wash
With a high visible light ratio (over 80%) and excellent color rendering, this fixture shows the natural colors of objects beautifully. It is excellent for uplighting architectural features, monuments, or commercial signage.
