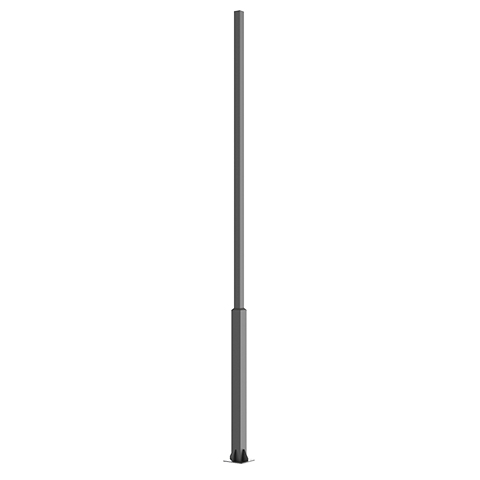

5M Galvanized Square Light Pole Commercial Parking Lot SHS
| Dimensions | Top: 80x80mm / Bottom: 120x120mm (Square) |
| Wall Thickness | 2.5mm (Upgraded) |
| Foundation | 280x280x10mm Flange / 4-M16 (H500mm) Bolts |
Talk to Our Engineer Now 1. Upgraded 2.5mm Wall & SHS Architecture
At a 5-meter (16.4ft) elevation, lighting poles are exposed to higher wind shear and often support dual-arm commercial fixtures. This Square Hollow Section (SHS) mast is structurally upgraded with a 2.5mm wall thickness. Combined with the massive 120x120mm base geometry, it provides exceptional torsional rigidity (twisting resistance), ensuring the flat architectural faces remain perfectly aligned under dynamic loads.

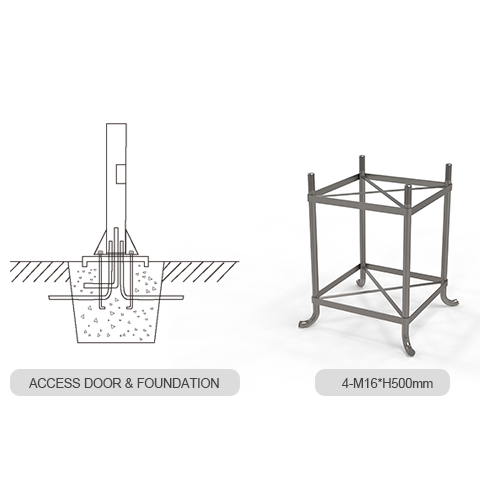

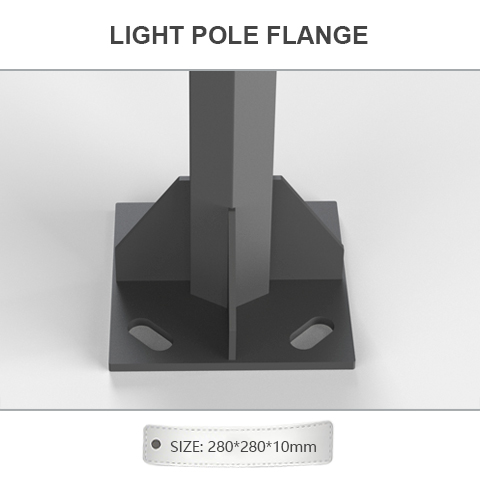

2. Enlarged 280mm Flange & Deep M16 Anchoring
Maintaining absolute vertical plumbness is critical for the visual appeal of square lighting designs. To safely transfer elevated overturning moments, the foundation utilizes a significantly widened 280x280mm square flange plate with an upgraded 10mm thickness. The anchoring kit includes four heavy-duty M16 foundation bolts with a 500mm embedment depth.

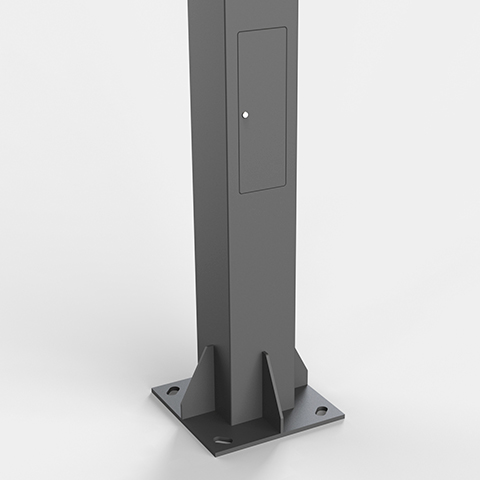

3. Concealed Flush Access Compartment
To maintain the uninterrupted geometric flow of the square mast, the lower 120x120mm section features a precision laser-cut flush access door. This weatherproof and vandal-resistant compartment provides spacious housing for DIN rails, standard terminal blocks, and MCBs. An internal M8/M10 grounding lug is welded directly inside the cavity to comply with international electrical safety codes.

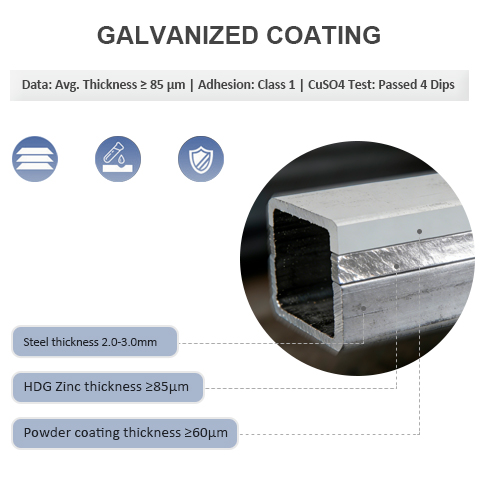

4. HDG (≥85μm) Edge Protection & Powder Coating
The sharp 90-degree corners of square poles are historically vulnerable to premature coating wear. To completely eliminate this risk, the entire column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy, metallurgical zinc barrier of ≥85μm. This is followed by an electrostatically applied architectural powder coating (≥60μm), guaranteeing superior edge protection and decades of rust-free service.
| Model Reference | DL01-A01A03-009 |

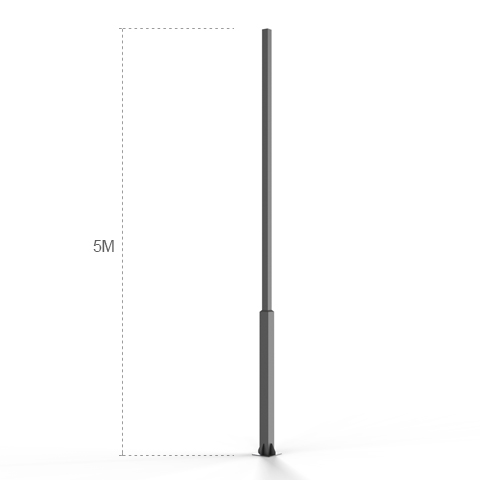

| Pole Height | 5M (Approx. 16.40FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Square Hollow Section (SHS) / Stepped |
| Top Shaft Dimension | 80 x 80mm (Square) |
| Bottom Shaft Dimension | 120 x 120mm (Square Base) |
| Structural Wall Thickness | 2.5mm (Upgraded for 5M Stability) |
| Base Flange Dimensions | 280 * 280 * 10mm |
| Anchor Bolt Spec | 4 Pieces – M16 (H500mm Embedment) |
| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Commercial & Architectural Applications for 5M Square Poles
Operating at the highly versatile 5-meter (16.4ft) elevation, the bold 120x120mm base of this stepped SHS mast is the preferred choice for illuminating high-end commercial spaces, seamlessly blending robust structural engineering with modern linear aesthetics.
Modern Commercial Parking Lots
Design Strategy: High-end retail centers and corporate headquarters use 5M square poles to mount dual or quad LED shoebox fixtures. This height ensures broad, secure light distribution across parking zones without dominating the skyline.
Structural Benefit: The upgraded 2.5mm wall thickness and the torsional rigidity of the square geometry prevent the heavy luminaire heads from twisting or shaking in high winds, ensuring the lighting grid remains perfectly aligned.
Luxury Residential Streets & Subdivisions
Design Strategy: Premium gated communities utilize square mast designs to echo the modern architectural lines of the residential buildings, creating a cohesive neighborhood identity.
Structural Benefit: The heavy-duty 280x280x10mm flange and deep M16 anchors keep the mast flawlessly vertical. The dual-layer HDG finish guarantees zero rust stains on the manicured concrete pathways over decades of use.
High-Tech Campuses & Plazas
Design Strategy: Innovative tech hubs demand infrastructure that feels cutting-edge. The stepped SHS transition from 120mm to 80mm adds striking geometric interest.
Structural Benefit: The flat faces of the 120x120mm base provide an exceptionally stable and aesthetically pleasing surface for mounting smart-city modules, EV charging signs, or security cameras.
