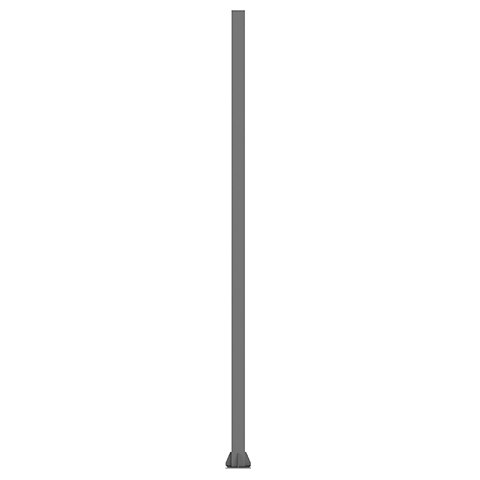

5M Straight Square Light Pole 100mm Uniform
| Dimension | Constant 100x100mm (Straight Square) |
| Wall Thickness | 2.5mm (Upgraded) |
| Foundation | 230x230x10mm Flange / 4-M16 (H500mm) Bolts |
Talk to Our Engineer Now 1. Bold Linear Aesthetic (Constant 100x100mm SHS)
Diverging from traditional tapered profiles, this architectural mast utilizes a completely straight, non-tapered Square Hollow Section (SHS). The expanded, uniform 100x100mm dimension acts as a deliberate architectural statement, perfectly mirroring the linear language of modern commercial buildings while offering superior torsional rigidity against wind drag.
2. Enhanced Anchoring (2.5mm Wall & 10mm Flange)

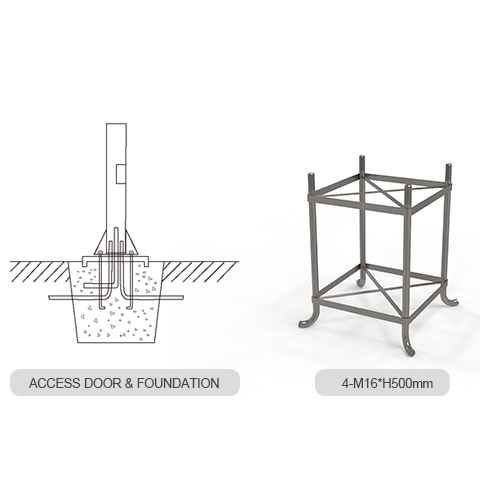

At a 5-meter elevation, precise anchoring is vital to maintain the strict vertical lines inherent to square designs. This pole is upgraded with a 2.5mm structural wall thickness and a robust 230x230mm square flange plate featuring an increased 10mm thickness to prevent base cupping. The system includes four deep M16 (500mm) anchor bolts.

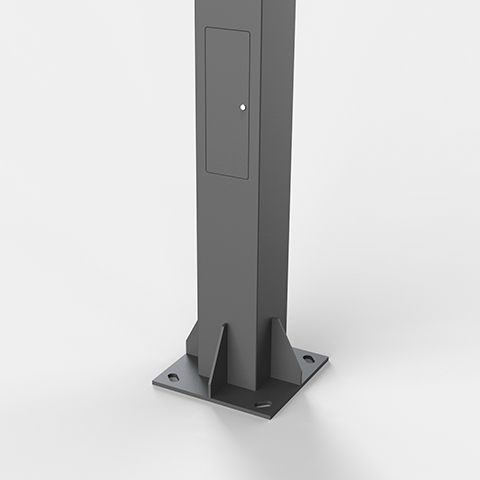

3. Precision Flush Access Compartment
To maintain the uninterrupted flat surfaces of the square mast, it is equipped with a precision laser-cut flush access door. This highly weatherproof compartment provides safe, spacious housing for electrical terminal blocks and circuit breakers (MCBs). An internal grounding lug is welded directly to the steel core, ensuring full compliance with pedestrian safety codes.

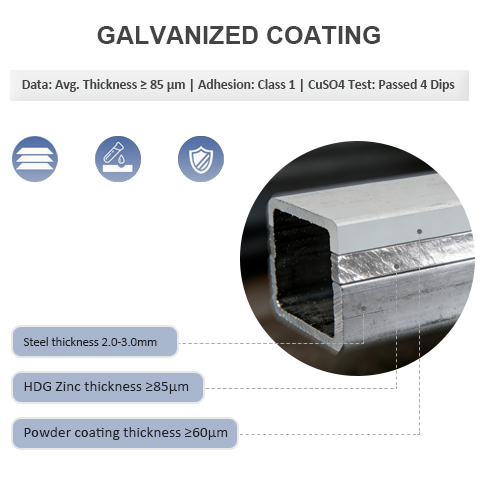

4. Superior Edge Protection (HDG ≥85μm)
The sharp 90-degree corners of square poles are historically vulnerable to premature coating wear. To completely eliminate this risk, the entire column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy, metallurgical zinc barrier of ≥85μm. This is followed by an architectural powder coating (≥60μm), guaranteeing superior edge protection and decades of rust-free service.
| Model Reference | DL01-A01A03-022 |

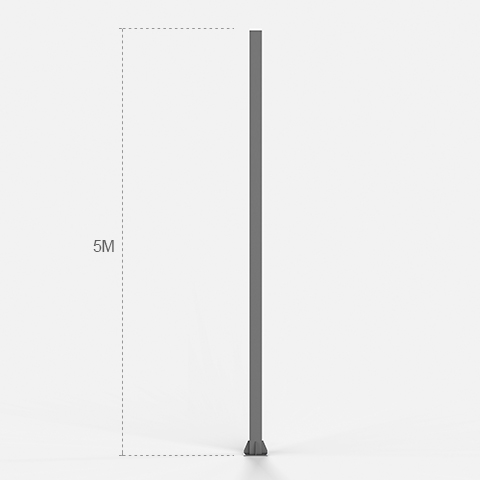

| Pole Height | 5M (Approx. 16.40FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Straight Square Hollow Section (Non-Tapered SHS) |
| Pole Dimension | Constant 100 x 100mm (Top to Bottom) |
| Structural Wall Thickness | 2.5mm (Upgraded) |

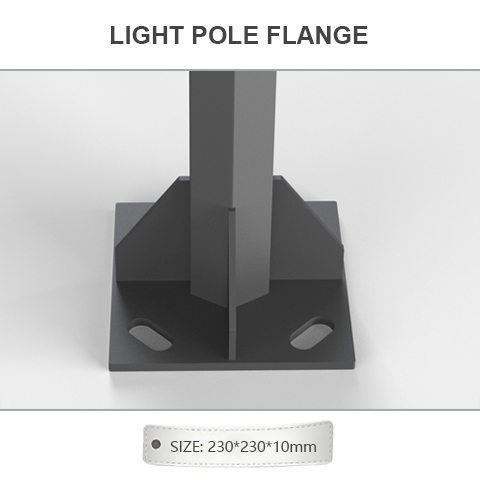

| Base Flange Dimensions | 230 * 230 * 10mm (Upgraded Thickness) |
| Anchor Bolt Spec | 4 Pieces – M16 (H500mm Embedment) |
| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |

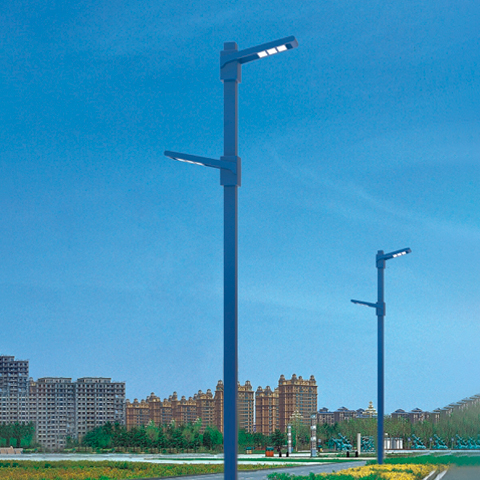

Architectural Landscape Applications for 5M Straight Square Poles
At a versatile height of 5 meters (16.4ft), the bold, uninterrupted 100x100mm lines of this straight square mast serve as the ultimate bridge between human-scale pedestrian lighting and wide-area commercial illumination.
Mid-Scale Commercial Plazas
Design Strategy: Contemporary plazas favor straight square poles because the 100x100mm uniform dimension can flush-mount with larger commercial LED area luminaires, creating a striking, continuous geometric profile.
Structural Benefit: The broad, flat planes of the 100mm mast provide an incredibly stable, level surface for seamlessly mounting heavy security cameras, public PA speakers, or directional signage without causing the pole to twist.
Luxury Residential Arterials
Design Strategy: A 5-meter elevation is ideal for illuminating the main driving arterials of high-end subdivisions. It pushes the light high enough to cover two traffic lanes efficiently while maintaining a highly aesthetic, modern appearance.
Structural Benefit: The upgraded 10mm thick flange and deep M16 anchor bolts ensure the mast remains flawlessly vertical, maintaining the high property value aesthetics over decades.
Corporate Campuses & Tech Hubs
Design Strategy: Modern office parks demand lighting hardware that feels like high-tech architectural infrastructure. The straight square profile removes all visual clutter and stepped transitions.
Structural Benefit: The flush access door keeps electrical components and heavy-duty breakers completely concealed, ensuring the pure geometric design is never visually compromised.
