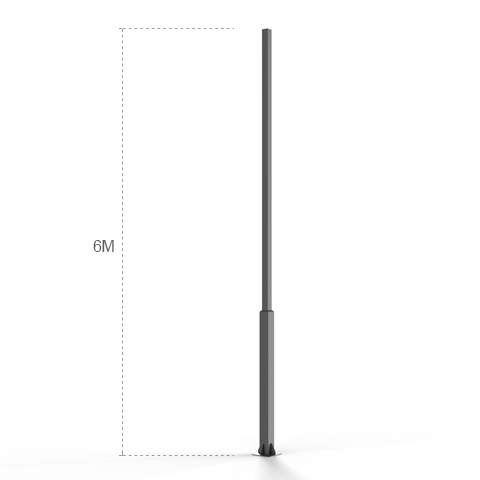

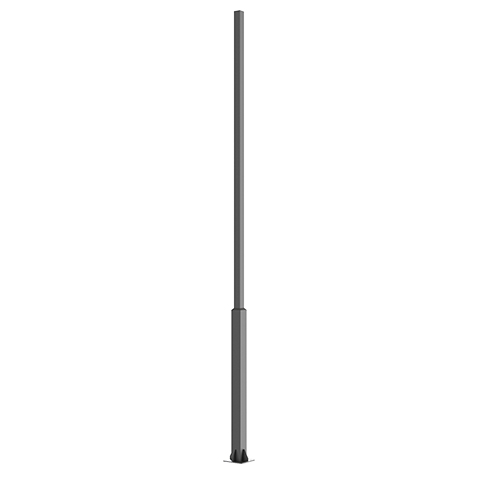

6M Galvanized Square Light Pole Commercial Parking Lot SHS
| Dimensions | Top: 100x100mm / Bottom: 150x150mm (Square) |
| Wall Thickness | 2.75mm (Heavy Duty) |
| Foundation | 300x300x10mm Flange / 4-M16 (H600mm) Bolts |
Talk to Our Engineer Now 1. Extreme Torsional Rigidity (150x150mm Base)
At a 6-meter (20ft) elevation, lighting poles face significant wind shear, particularly when supporting dual or quad-arm shoebox fixtures. This Square Hollow Section (SHS) mast is structurally reinforced with a 2.75mm wall thickness. Combined with the massive 150x150mm base geometry and 100x100mm top, it provides exceptional torsional rigidity, ensuring the flat architectural faces will not twist or deflect under dynamic wind loads.
2. Enlarged 300mm Flange & Deep M16 Anchoring
Maintaining absolute vertical plumbness is critical for the visual appeal of geometric square lighting grids. To safely transfer elevated overturning moments, the foundation utilizes a widened 300x300mm square flange plate with an upgraded 10mm thickness. The anchoring kit includes four heavy-duty M16 foundation bolts with an extended 600mm embedment depth.
3. Concealed Flush Access Compartment
To maintain the uninterrupted, sleek lines of the square mast, the lower 150x150mm section features a precision laser-cut flush access door. This weatherproof and vandal-resistant compartment provides spacious housing for DIN rails, heavy-duty breakers, and terminal blocks. An internal M8/M10 grounding lug is welded directly inside the cavity to comply with international electrical safety codes.
4. HDG (≥85μm) Edge Protection & Powder Coating
The sharp 90-degree corners of square poles are historically vulnerable to premature coating wear. To completely eliminate this risk, the entire column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy, metallurgical zinc barrier of ≥85μm. This is followed by an electrostatically applied architectural powder coating (≥60μm), guaranteeing superior edge protection and decades of rust-free service.
| Model Reference | DL01-A01A03-010 |
| Pole Height | 6M (Approx. 19.68FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Square Hollow Section (SHS) / Stepped |
| Top Shaft Dimension | 100 x 100mm (Square) |
| Bottom Shaft Dimension | 150 x 150mm (Heavy Duty Square Base) |
| Structural Wall Thickness | 2.75mm (Upgraded for 6M Stability) |
| Base Flange Dimensions | 300 * 300 * 10mm |
| Anchor Bolt Spec | 4 Pieces – M16 (H600mm Embedment) |
| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Commercial & Municipal Applications for 6M Square Poles
Operating at the optimal 6-meter (20ft) elevation, the bold 150x150mm base of this stepped SHS mast is the undisputed choice for illuminating modern commercial parking lots and secondary urban roadways, seamlessly blending heavy-duty engineering with linear architecture.
Mega-Retail Parking Lots
Design Strategy: Large retail centers and corporate headquarters use 6M square poles to mount dual or quad LED shoebox fixtures. This height ensures broad, secure light distribution across acres of pavement to maximize security camera visibility.
Structural Benefit: The upgraded 2.75mm wall thickness and the immense torsional rigidity of the 150mm square base prevent the heavy luminaire heads from twisting or whipping in open-area crosswinds.
Modern Urban Roadways
Design Strategy: Contemporary city planning often replaces traditional round street lights with sleek square profiles to modernize the cityscape. The 100x100mm top tenon aligns perfectly with modern linear LED cobra-head fixtures.
Structural Benefit: The heavy-duty 300x300x10mm flange and deep 600mm M16 anchors keep the mast flawlessly vertical, easily resisting the continuous vibration generated by passing commercial traffic.
Corporate Plazas & Hubs
Design Strategy: Innovative tech hubs demand infrastructure that feels cutting-edge. The stepped SHS transition from 150mm to 100mm adds striking, monolithic geometric interest.
Structural Benefit: The wide, flat faces of the 150x150mm base provide an exceptionally stable and aesthetically pleasing surface for mounting smart-city modules, EV charging signs, or security cameras.
