6M Aluminum Tapered Light Pole Manufacturer 12mm Flange Base
| Diameters | Top: Ø65mm / Bottom: Ø130mm |
| Wall Thickness | 3.0mm (Heavy Duty) |
| Anchor Bolts | 4-M16 H600mm |
Talk to Our Engineer Now 1. 6M (20FT) Urban Road Standard

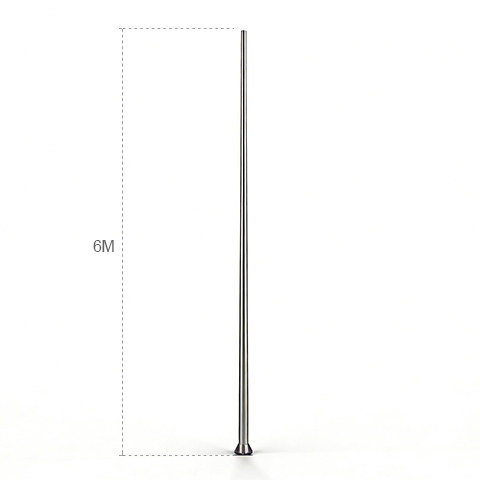

Reaching 6 meters (approx. 20ft) in height, this pole utilizes a smooth tapered conical design (Ø130mm bottom to Ø65mm top). It is the optimal height for illuminating urban main roads, wide boulevards, and large industrial park perimeters.
2. Upgraded 12mm Flange & 3.0mm Wall

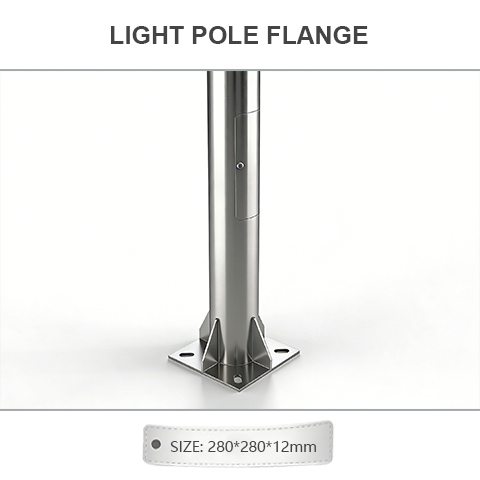

To counter the increased wind moment of a 6-meter structure, the welded flange plate has been upgraded to a massive 12mm thickness (280*280mm). Combined with the 3.0mm aluminum wall thickness, it offers unparalleled structural integrity.
3. >25 Years Rust & Corrosion Resistance

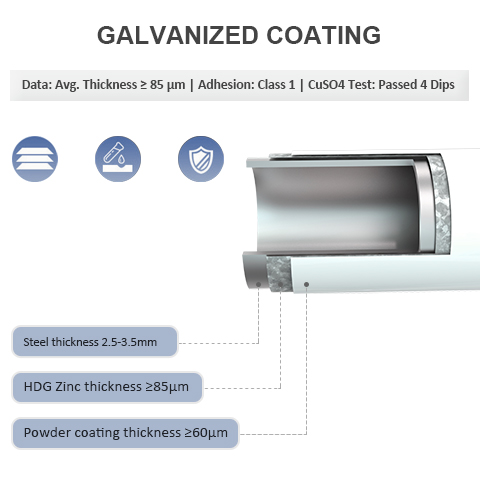

Built to endure harsh outdoor environments, the pole features a premium powder coating exceeding 60um in thickness. This creates a virtually maintenance-free surface that resists rust, fading, and chipping for over 25 years.
4. Complete Installation Kit

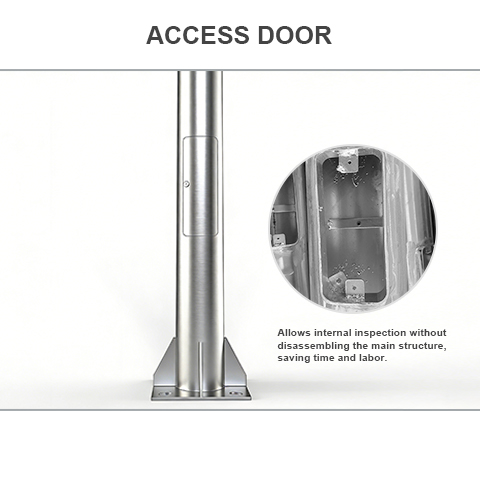

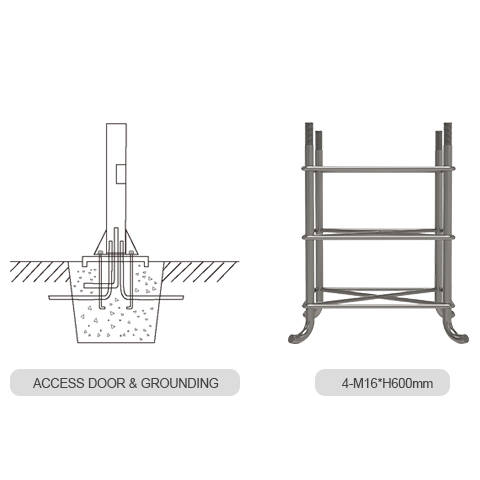

Each pole is shipped with four heavy-duty M16 (H600mm) anchor bolts for secure foundation mounting. The pole also features a flush-mounted access door, providing electricians with easy access to internal wiring.
| Model No. | DL01-A01D03-004 |
| Pole Height | 6M (Approx. 19.7FT) |
| Top Diameter | Ø65mm |
| Bottom Diameter | Ø130mm |
| Wall Thickness | 3.0mm |
| Flange Plate Size | 280 * 280 * 12mm |
| Anchor Bolts | 4-M16 H600mm |
| Surface Finishing | Powder Coating (>60um thickness) |
| Color | Customization Available |
| Warranty | > 20 Years |
Ideal Applications for 6M (20FT) Light Poles
With its 12mm upgraded flange and 3.0mm wall thickness, this 6-meter pole is engineered to meet the stringent safety standards of municipal and industrial lighting projects.

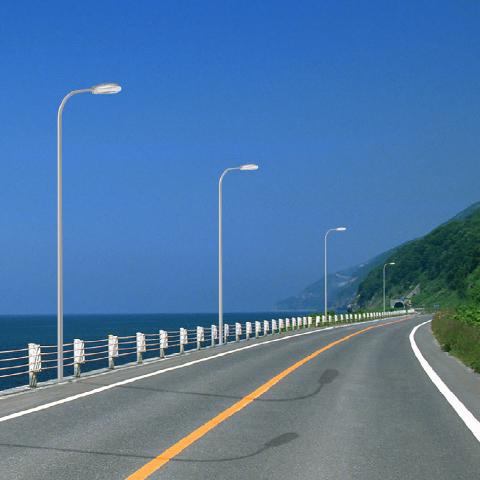

Urban Main Streets & Highways
The 6-meter (20FT) height is the standard specification for primary urban roads. It ensures that LED cobra head or post-top luminaires cast a wide, overlapping beam across multiple traffic lanes, optimizing driver visibility and safety.
Large Commercial Parking Lots
Supermarkets and shopping mall parking lots require broad illumination coverage. The upgraded 12mm flange base provides the critical structural support needed to hold heavy area light fixtures securely against strong wind gusts.
Industrial Parks & Logistics Centers
Industrial areas demand zero-maintenance infrastructure. The pole’s premium powder-coated finish ensures >25 years of rust resistance, effortlessly surviving the harsh, corrosive environments often found in logistics hubs and factories.
