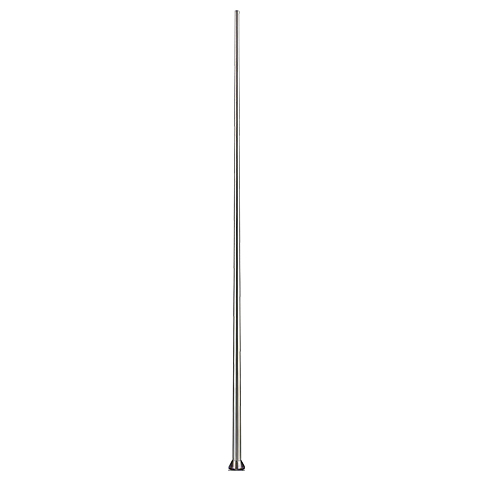

8M Aluminum Tapered Light Pole 4mm Thickness Manufacturer
| Diameters | Top: Ø80mm / Bottom: Ø190mm |
| Wall Thickness | 4.0mm |
| Anchor Bolts | 4-M18 H800mm |
Talk to Our Engineer Now 1. 8-Meter Heavy Duty Conical Structure
The pole reaches 8 meters in height with a continuous tapered profile. To support the increased height, the base diameter is widened to Ø190mm, tapering to a Ø80mm top tenon. This design effectively manages wind resistance while accommodating heavy multi-arm brackets.
2. 4.0mm Wall Thickness
Because bending moments are critical at 8 meters, the aluminum wall thickness is increased to 4.0mm. Formed through a high-pressure spinning process, the metal structure maintains uniform density to support heavy commercial LED fixtures in open areas.
3. 350mm Flange Plate with M18 Bolts
The mounting base utilizes a massive 350x350mm flange plate with a thickness of 16mm, fully welded to the bottom shaft. The installation kit provides four M18 anchor bolts with a depth of 800mm for secure concrete footing.
4. Powder Coated Finish
To ensure longevity in harsh environments, the aluminum receives a standard powder coating treatment exceeding 60um. This finish resists UV degradation and oxidation, providing a service life evaluated at over 20 years without the need for repainting.
| Model No. | DL01-A01D03-006 |
| Pole Height | 8M |
| Top Diameter | Ø80mm |
| Bottom Diameter | Ø190mm |
| Wall Thickness | 4.0mm |
| Flange Plate Size | 350 * 350 * 16mm |
| Anchor Bolts | 4-M18 H800mm |
| Surface Finishing | Powder Coating (>60um thickness) |
| Access Door | Included |
| Warranty | > 20 Years |
Common Applications for 8M Poles
Due to its 4.0mm wall thickness and heavy flange base, the 8-meter specification is reserved for large-scale infrastructure projects requiring high wind resistance.
Highways & Intersections
At 8 meters, the pole provides adequate clearance and light distribution for multi-lane highways and large traffic intersections, supporting heavy multi-arm lighting brackets.
Airports & Seaport Terminals
Open transport hubs face severe wind conditions. The 350x350x16mm flange plate and 800mm deep M18 anchor bolts secure the structure safely in exposed environments.
Heavy Industrial Plants
Industrial sites require high-clearance lighting for large vehicle movement. The powder-coated aluminum material resists chemical corrosion and rust without requiring ongoing maintenance.
