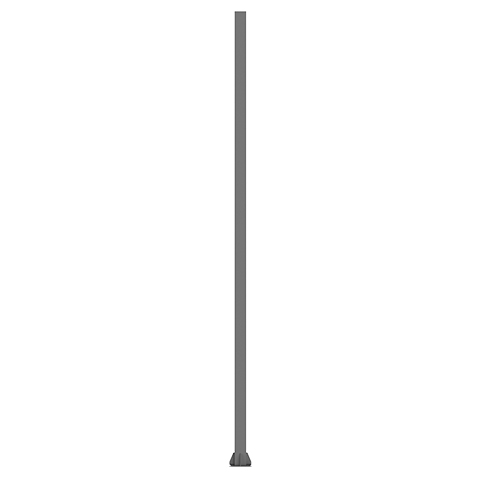

8M Galvanized Straight Square Light Pole 150x150mm Heavy Duty Uniform SHS Steel Column for Commercial Parking Lots
| Dimensions | Constant 150x150mm (Non-tapered) |
| Thickness | 3.0mm |
| Base Plate | 320x320x14mm / 4-M18 (H800mm) |

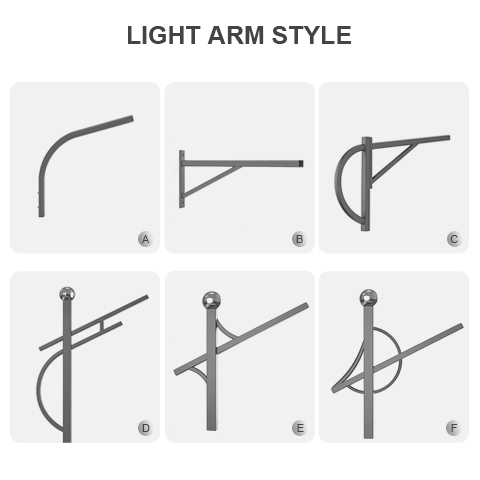

Talk to Our Engineer Now 1. Consistent 150mm Profile for Multi-Arm Mounting
It’s not just about modern aesthetics. Keeping the pole 150x150mm from top to bottom gives you massive torsional strength. If you are planning to hang 3-way or 4-way heavy LED shoebox lights, this wide top section prevents the pole from twisting or swaying in the wind, making installation much easier without needing awkward adapters.
2. Serious Base Anchoring for High Wind Zones

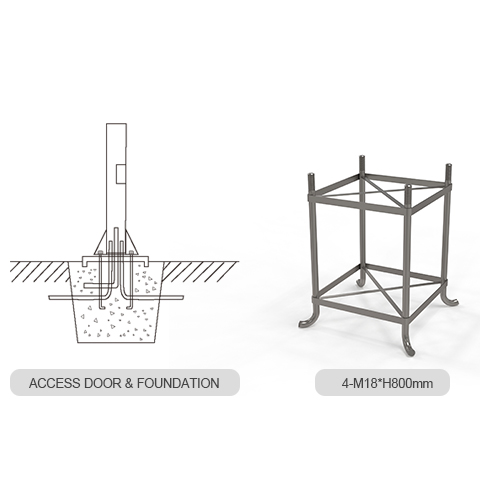

At 8 meters tall, the wind leverage against the base is huge. That’s why we don’t skimp on the foundation. We use a 14mm thick flange plate (320x320mm) backed by a 3.0mm pole wall. The kit also comes with four deep 800mm M18 anchor bolts to keep everything dead straight, even in wide-open parking lots.

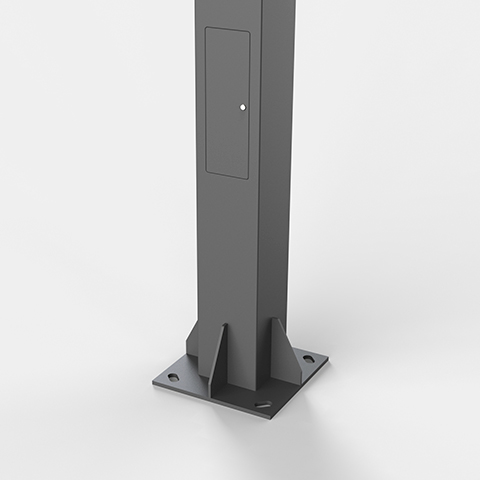

3. Safe and Accessible Wiring
We include a flush-mounted access door that blends right into the flat surface of the pole. It’s weather-resistant, secure, and provides plenty of room for contractors to work with breakers and terminal blocks. It also features a built-in grounding lug to meet site safety and inspection standards.

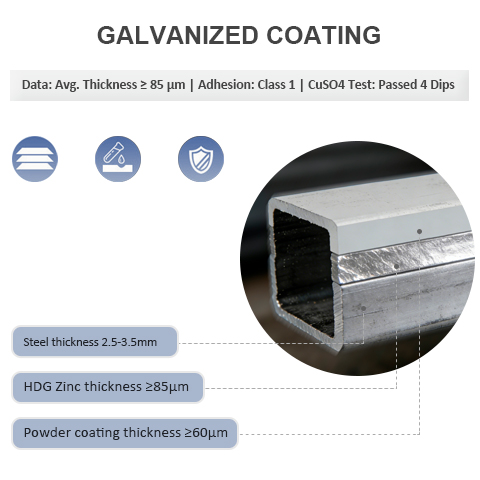

4. Real Rust Protection on Square Corners
Square poles usually start rusting at the 90-degree corners first because paint doesn’t stick well to sharp edges. We solve this by fully dipping the pole in molten zinc (HDG ≥85μm) before baking on a tough powder coat. It’s a two-step process built to survive harsh weather, rain, and road salt.
| Model Number | DL01-A01A03-025 |

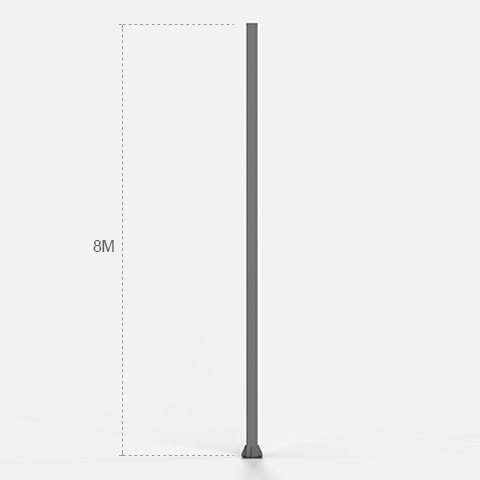

| Pole Height | 8M (Approx. 26.2FT) |
| Material | Q235B Carbon Steel |
| Pole Shape | Straight Square Hollow Section (SHS) |
| Tube Dimensions | 150 x 150mm Constant |
| Wall Thickness | 3.0mm |

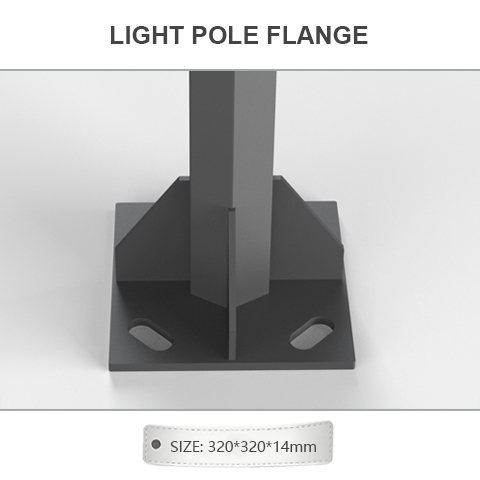

| Base Flange Size | 320 x 320 x 14mm |
| Anchor Bolts | 4 pcs of M18, 800mm length |
| Access Door | Flush design with internal grounding |
| Finish | Hot Dipped Galvanized (≥ 85μm) + Powder Coating |
Where Does This Pole Make Sense?
Because of the heavy 150x150mm profile and 3.0mm wall, this 8-meter pole is over-engineered for basic pathways. It’s meant for wide-area lighting projects where stability and modern design are required.
Large Retail Parking Lots
Big lots need big lights. The 150mm top section is wide enough to easily mount heavy 3 or 4-arm LED brackets. You can cast a wide grid of light for security cameras without worrying about the pole vibrating in winter winds.
Auto Dealerships
Dealerships need intense, overlapping lighting to make their inventory look good at night. This pole gets the lights up to an 8-meter sweet spot and handles the wind drag of large, high-output fixtures perfectly.

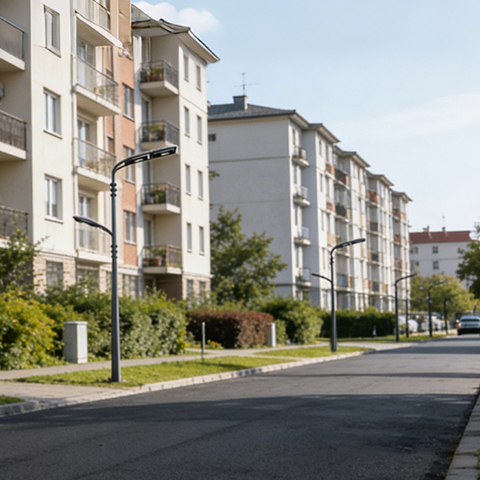

City Plazas and Office Parks
The straight, non-tapered look fits right in with modern glass and steel buildings. It looks like a deliberate architectural column, providing a much cleaner streetscape than traditional tapered light poles.
