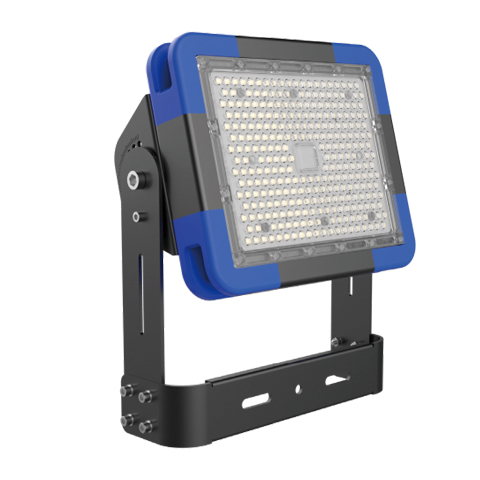

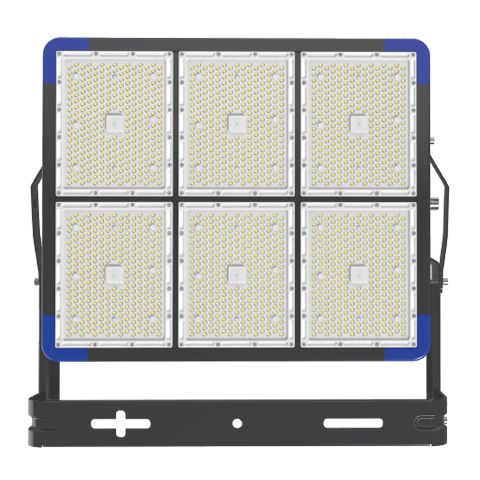

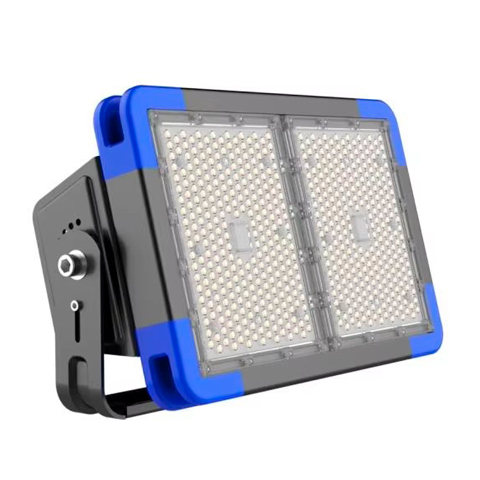

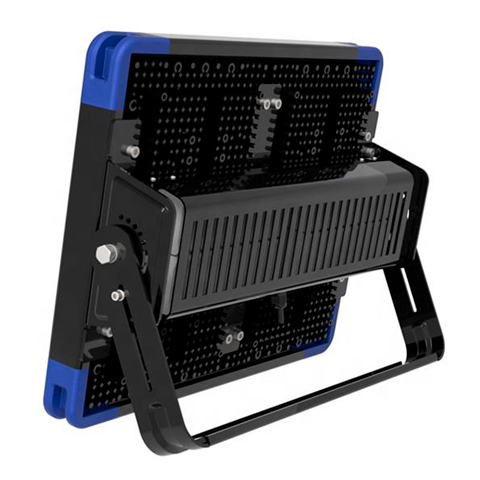

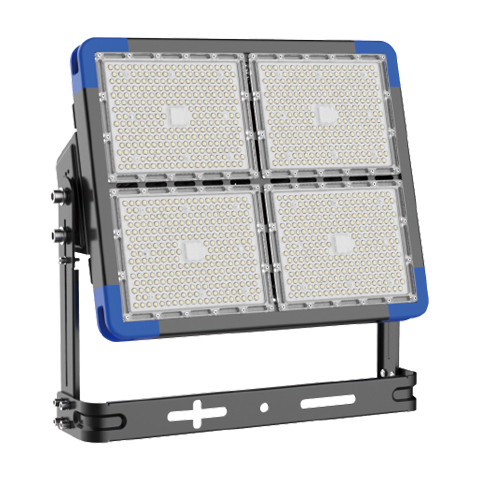

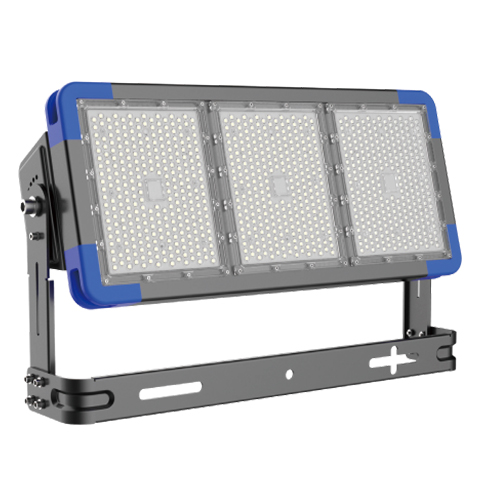

High Power 200W-1440W LED Stadium Light 150lm/W | Modular High Mast Flood light System
| LED Chips | Lumileds / OSRAM |
| Driver Brand | Meanwell / Sosen |
| Beam Angle | 10°/25°/45°/60°/90°/Asymmetric |
Talk to Our Engineer Now 1. Modular Design with 270° Rotation
The fixture features a flexible modular architecture where each module can rotate independently up to 270 degrees. This allows for precise aiming and uniform light distribution, critical for professional stadiums and high mast applications.
2. 150lm/W High Efficacy Performance
Powered by top-tier Lumileds or OSRAM LED chips combined with reliable Meanwell or Sosen drivers. This system achieves a luminous efficacy of up to 150 lm/w, providing ultra-bright illumination while significantly reducing energy costs.
3. Advanced Optics with Spill Shield
Designed to minimize light pollution, the fixture comes with an optional Spill Shield visor. Multiple beam angles including 10, 25, 45, 60, and 90 degrees are available to meet strict lighting standards for HDTV broadcasting.
4. IP66 Heavy Duty Construction
The housing is crafted from robust Die-Cast Aluminum with a distinctive blue corner design. Rated IP66 for waterproof and dustproof performance, it withstands harsh outdoor environments and ensures a lifespan of over 60,000 hours.
| Product Series | SPORTLUX™ High Mast Light [cite: 16] |
| Wattage Options | 200W, 500W, 750W, 1000W, 1250W, 1440W |
| Luminous Efficiency | 150 lm/w |
| Input Voltage | AC100-277V |
| LED Chips | Lumileds / OSRAM |
| Driver Brand | Meanwell / Sosen |
| Beam Angle | 10° / 25° / 45° / 60° / 90° / Asymmetric |
| Housing Material | Die-Cast Aluminum |
| IP Rating | IP66 Waterproof |
| Certifications | CE, CB, SAA, ROHS, UL [cite: 25] |
