Exterior LED Lighting Systems for a Namibia Loading Yard
Get Free Quote
Exterior LED lighting systems for an off-grid Namibian loading yard need separate solar collection, reliable weather protection and controlled light on the working apron. This Lighting Design Reference uses the 120W option of Dawn Lighting’s IP67 Waterproof Solar LED Flood Light with Remote Control, mounted at a selected 5m height along a 36m canopy. Final panel sizing, battery capacity, cable length and operating schedule must be confirmed for the local lowest-sun period.
Exterior LED Lighting Systems for Off Grid Work Areas

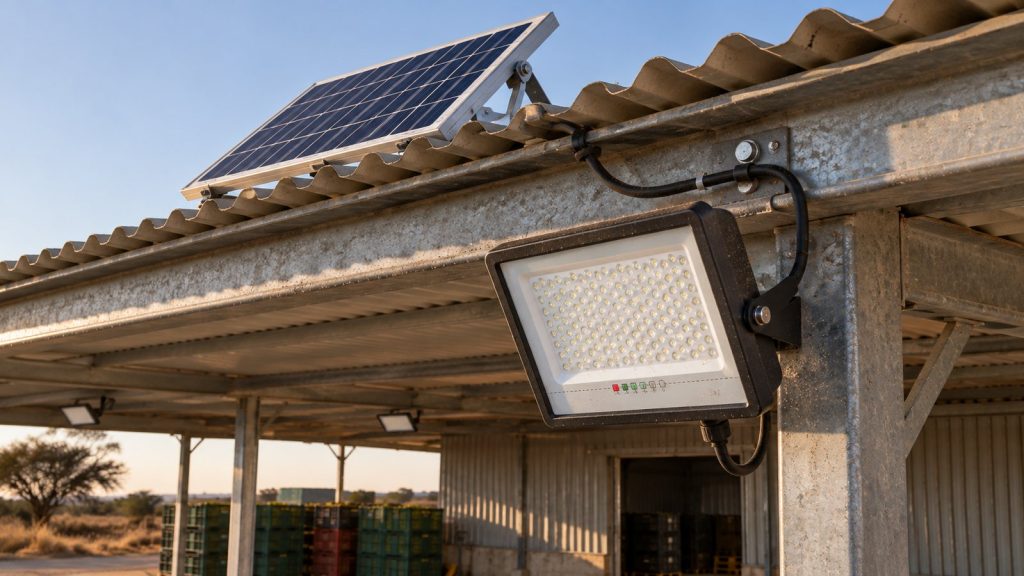

A produce packing shed needs clear visibility at pallets, door thresholds and vehicle approach zones, but grid trenching may be impractical. A separated solar system allows the floodlight to sit under the shaded canopy while the panel is placed higher on the roof where it can receive unobstructed sun.
The layout should avoid a single high-output fixture that creates hard shadows. Several lower-mounted luminaires can produce overlapping pools across the loading apron while limiting spill into surrounding scrubland and the night sky.
Selected 120W IP67 Solar Flood Light Layout
The product series offers 10W, 50W, 120W, 200W, 300W, 400W and 500W options. Dawn Lighting publishes a high-conversion polycrystalline panel, individual spotlight-effect reflectors, IP67 protection, a 180-degree adjustable bracket, automatic dusk-to-dawn operation, wireless remote control, 3H, 5H and 8H timer modes, plus 25%, 50%, 75% and 100% power indicators.

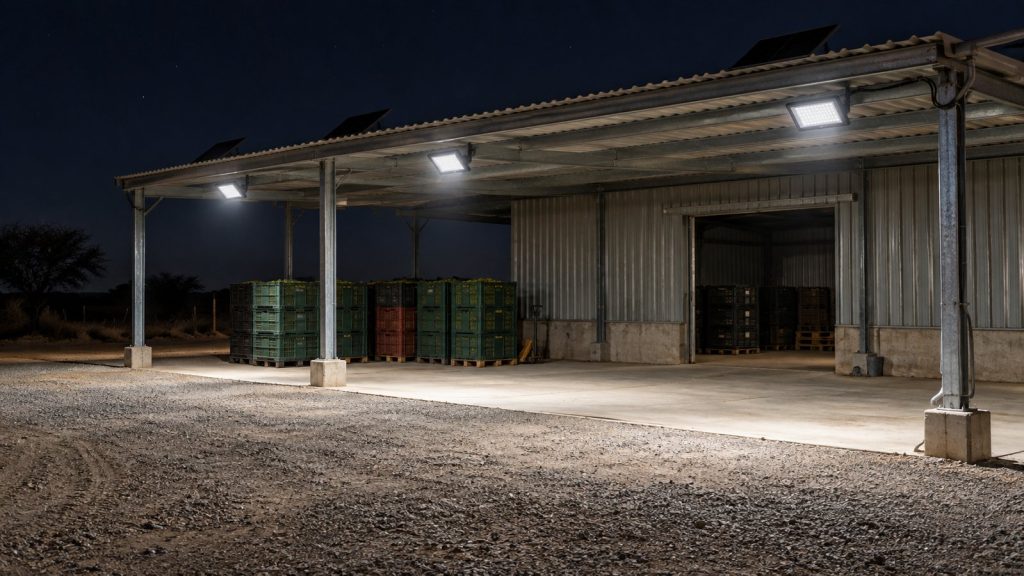

This reference selects three 120W fixtures mounted about 5m high along a 36m canopy. Their brackets aim the center of each beam at the loading apron and doorway thresholds. The separate panels are located on the roof with a clear northern solar window appropriate to the southern hemisphere.
The arrangement is illustrative. Final fixture quantity depends on the actual optical file, yard dimensions and target illuminance. The product page does not publish battery capacity or panel wattage for each power option, so these values must be confirmed in the quotation and energy calculation.
Solar Energy and Maintenance Checks
Model the worst solar month, expected operating hours, dimming schedule and consecutive low-sun days. Confirm extension-cable length, connector type, panel frame, battery chemistry, controller logic and replaceable components before procurement.
At commissioning, verify that each bracket directs light downward onto the apron, that the AUTO mode switches correctly and that the indicators report charging status. Record panel orientation, cable routing and remote settings so maintenance teams can diagnose reduced runtime without unnecessary replacement.
Frequently Asked Questions
Which power option is selected for this reference?
The reference selects 120W from the product’s published 10W to 500W range.
Can the solar panel be separated from the light?
Yes. The product page states that a waterproof extension cable allows the panel to be mounted in direct sun while the fixture remains in shade.
What weather protection is published?
The selected product page lists IP67 waterproof protection.
Which values still require confirmation?
Confirm panel wattage, battery capacity, cable length, optical data and the final operating schedule for the quoted 120W system.
Talk to Dawn Lighting
Light remote loading areas without trenching a new grid supply. Dawn Lighting can coordinate the 120W separated solar flood light, panel placement, control schedule and site-specific energy review.
