To understand how to install low voltage landscape lighting on a public waterfront path, start with the walking surface, cable route and drainage rather than decorative spacing. This Lighting Design Reference uses Dawn Lighting’s DC12V IP65 Low Pressure Umbrella Lawn Light at a selected 800mm height and about 7m staggered spacing. Final spacing, transformer capacity, voltage drop and circuit protection must be verified for the actual site.
How to Install Low Voltage Landscape Lighting Safely
A Dutch canal-side route combines persistent moisture, tree roots and public access. The cable plan should keep joints out of standing water, protect buried conductors from maintenance tools and maintain safe separation from other services. A DC12V system reduces operating voltage at the fixtures but still requires a correctly rated power supply, protective devices and compliant installation practices.

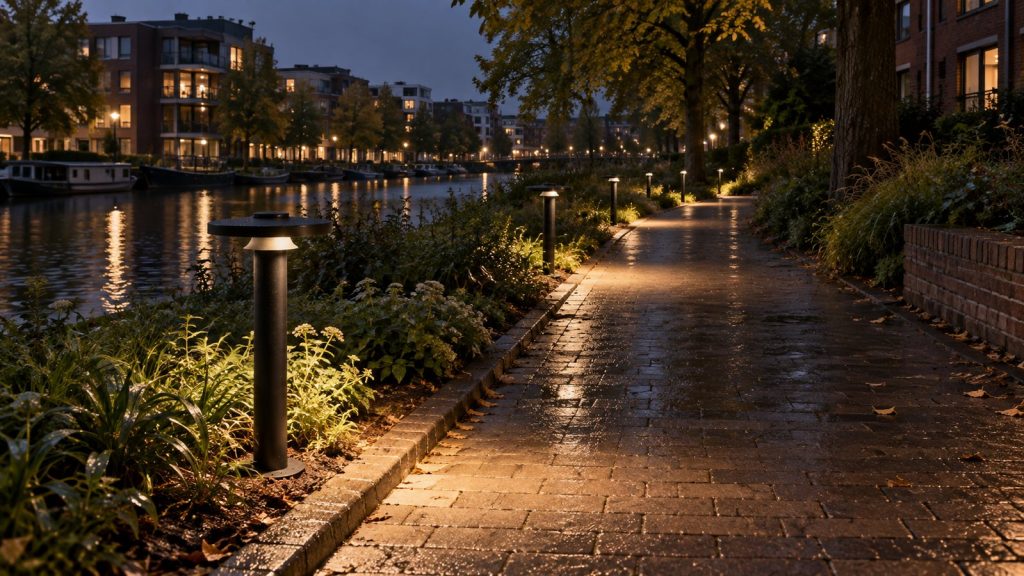

Set the umbrella lights just outside the clear path width. Their shielded head should place the useful pool across the paving edge and center of travel, with only limited spill into planting. Avoid equal decorative spacing when curves, trees or entrances change the visual task.
Selected DC12V Umbrella Lawn Light Layout
The product page publishes IP65 protection, DC12V input and 600mm, 800mm and 1000mm height options. It also identifies an LED SMD source, Lumileds or Bridgelux chip options, a 2700-6500K color-temperature range, CRI above 75 and a 165 x 70 degree beam entry. Confirm the exact electrical and optical configuration in the quotation.
This reference selects 800mm height, 3000K and approximately 7m staggered spacing along a 2.5m-wide paved route. Those values suit the scale shown, but the final result depends on lumen output, distribution, mounting offset, surface reflectance and tree canopy.

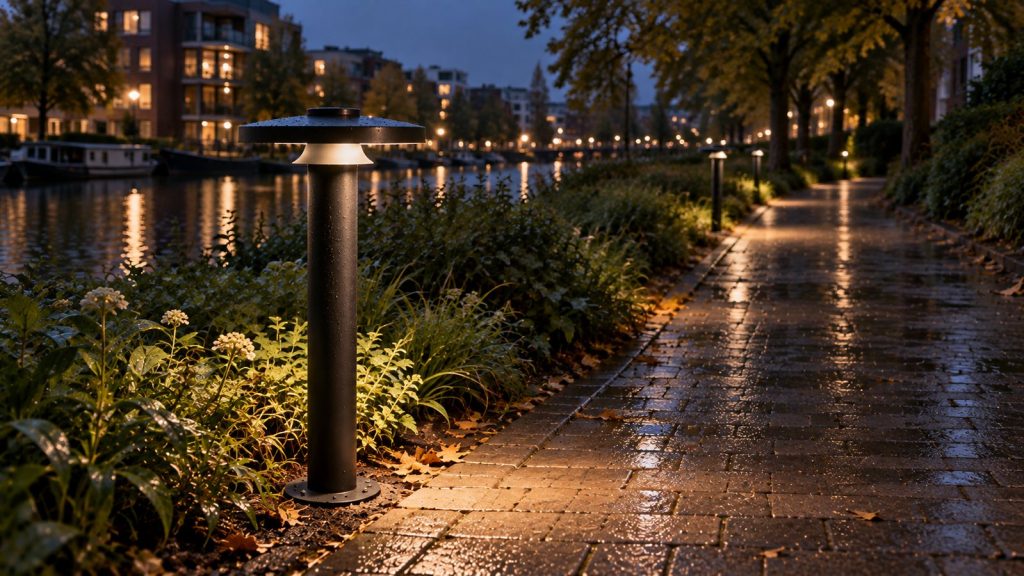

Place a compact concrete footing above the surrounding soil line and keep the fixture vertical. Route cables below grade in suitable protection, identify every branch and leave access to the transformer and junction points for testing.
Voltage Drop and Night Testing
Calculate the longest cable run using the selected conductor size, total connected load and acceptable voltage drop. Divide long routes into manageable circuits rather than placing every fixture on one distant transformer. Use outdoor-rated enclosures and connections appropriate to the exposure zone.
At commissioning, test the farthest fixture, confirm stable output and inspect the path from both directions. Correct dark bends, excessive planting spill and glare before landscape growth hides the cable route. Record circuit loads, transformer settings and fixture positions for maintenance.
Frequently Asked Questions
What voltage does the Low Pressure Umbrella Lawn Light use?
The selected product page lists DC12V.
Which heights are available?
The page lists 600mm, 800mm and 1000mm options; this reference selects 800mm.
Is 7m spacing guaranteed?
No. Final spacing requires the exact photometric data, path geometry and target uniformity.
What must be checked on the longest circuit?
Check conductor size, connected load, voltage drop, transformer capacity, protection and output at the farthest fixture.
