Chile Vineyard Pathway and Garden Lighting Installation
Get Free Quote
A pathway and garden lighting installation at a Chilean vineyard can illuminate estate access routes without trenching new power cables through cultivated land. This design reference uses Dawn Lighting’s 30W Outdoor All In One Solar Street Light on selected 6-meter poles at approximately 24-meter spacing, with each integrated light head aligned over the roadway and the final energy schedule verified for the local solar resource.
Pathway and Garden Lighting Installation Requirements
A vineyard estate needs dependable night visibility at road bends, cellar entrances and service-path junctions while avoiding trenching through irrigation lines and cultivated soil. Dry summers, dust and seasonal solar variation make energy planning and battery verification as important as the nominal LED wattage.

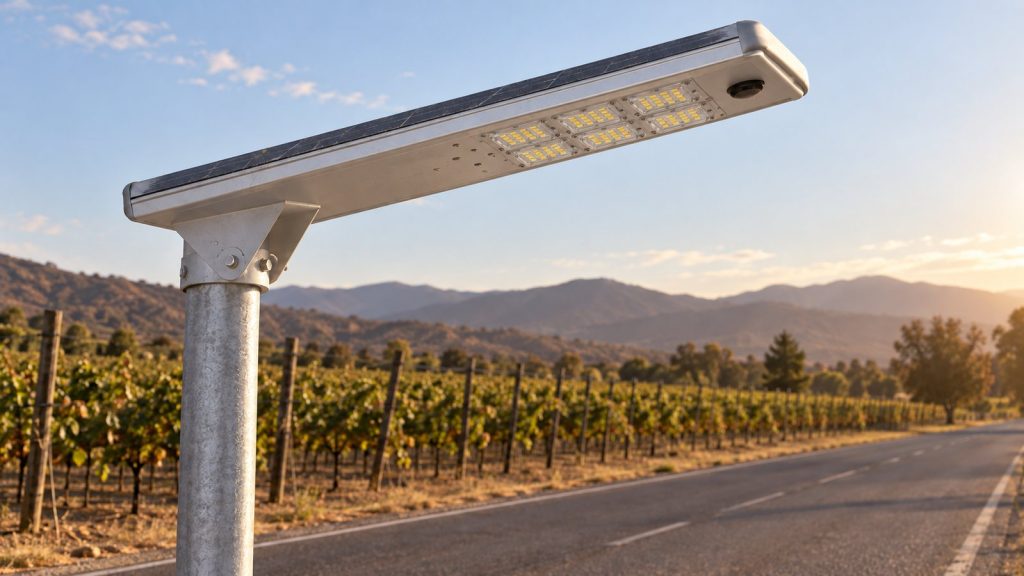

The reference layout places poles on one side of the estate road with the long luminaire body extending over the asphalt. The LED underside faces straight down, and the main light pool covers the traffic lane and path edge rather than grapevines or open ground.
Selected 30W All-in-One Solar Layout
Dawn Lighting describes this product as an integrated system combining the LED module, solar panel, LiFePO4 battery and MPPT controller. The selected product page lists a 30W configuration, 180 lm/W, 12-hour working time and three to five rainy days, with a three-year warranty.

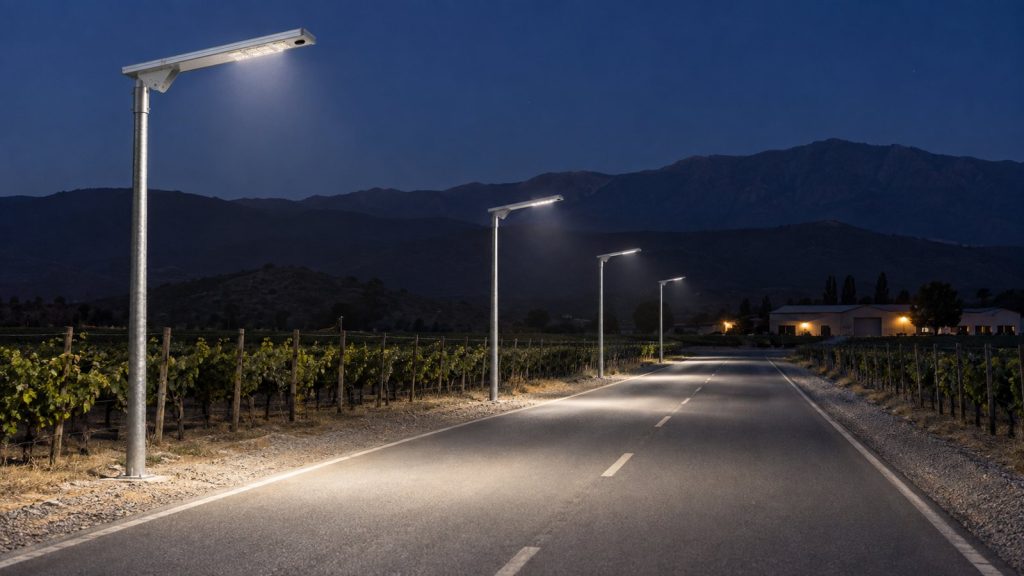

For this reference, 6-meter galvanized round poles are spaced at about 24 meters. The figure is a design starting point only. Final spacing depends on road width, optics, mounting overhang, required uniformity and the approved photometric file.
The panel surface must have an unobstructed solar window. Pole positions should avoid winery-building shadows, overhead cables and mature trees, while the adjustable bracket must maintain the roadway-facing orientation shown in the installation drawing.
Energy Autonomy and Installation Checks
The published 12-hour and three-to-five-rainy-day values must be confirmed for the quoted battery, control program and local lowest-sun month. A dimming schedule can prioritize full output during evening logistics and reduce output during low-traffic periods if the safety brief allows it.
Before purchase, request the exact battery capacity, panel rating, charging data, CCT, IP rating, IES file, pole bracket drawing and cold-temperature performance. After installation, verify runtime, roadway uniformity, sensor operation, bracket tightness and panel cleanliness over several nights.
Frequently Asked Questions
Why use an all-in-one solar light on a Chilean vineyard road?
The integrated design can avoid trenching through cultivated land and irrigation services while eliminating separate battery boxes.
Is 24-meter spacing guaranteed?
No. It is a reference value that requires verification with the exact photometric file and road geometry.
How long does the product operate?
The selected page lists 12 hours and three to five rainy days; confirm these values for the exact quoted battery and control schedule.
What product information still needs confirmation?
Confirm battery capacity, panel rating, CCT, IP rating, optics and cold-temperature performance before final approval.
