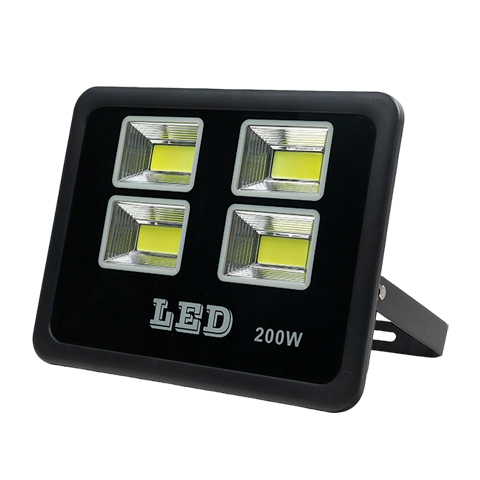

200W Outdoor LED Flood Light IP66 Anti-Corrosion COB Fixture for Stadiums and Ports
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
| Material | Die-cast Aluminum + Professional Powder Coating |
Talk to Our Engineer Now 1. Professional Anti-Corrosion Powder Coating

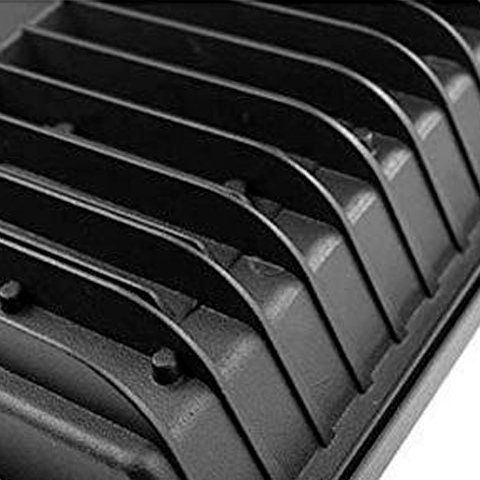

Industrial facilities and coastal ports quickly degrade standard painted metal. This 200W model utilizes a thickened die-cast aluminum housing finished with a highly durable professional outdoor powder coating. This provides superior corrosion and rusting resistance, protecting the internal LED engine and drastically reducing maintenance costs.
2. Instant Start & Massive 75% Energy Savings
Traditional 1000W high-pressure sodium lamps suffer from severe light fading and frustrating startup delays. This 200W LED flood light requires absolutely no warm-up time. It starts and restarts immediately, achieving energy savings of up to 75% while providing a more uniform and concentrated luminous flux.
3. Tier-1 Drivers & Extreme 10KV High-Mast Protection
Mounting a 200W fixture on a high mast makes it a prime target for lightning. To prevent catastrophic power supply failures, we integrate Tier-1 power supplies (Meanwell or Inventronics). These are paired with robust Surge Protection Devices (SPD) capable of absorbing electrical hits from 2.5KV up to a massive 10KV.
4. High Visible Light Ratio & Advanced Optics
Equipped with an advanced optical lens offering multiple beam angles (30°, 60°, 90°, 120°), the emitted light boasts a visible light ratio of over 80%. This ensures excellent visual clarity without wasted energy across large areas. The entire assembly is sealed to a strict IP66 waterproof and dustproof rating.
| Model Number | DL01-A07A10-009 |
| Power Consumption | 200W |
| LED Chip Type | COB (Epistar Array) |
| Luminous Efficacy | 80-85 LM/1W ; 90-100 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra > 80 (Good color rendering) |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Die-cast Aluminium + Glass, PC diffuser + Anti-corrosion powder |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Beam Angles | 30° / 60° / 90° / 120° Options |

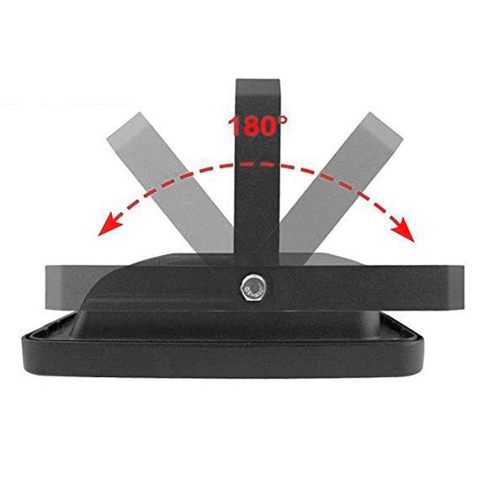

| Installation Mounts | Wall mounted, Ceiling mounted, Floor mounted via adjustable bracket |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 200W Anti-Corrosion Flood Light Excel?
Upgrading to 200W significantly expands your lighting coverage, moving into serious industrial territory. The professional outdoor powder coating and 10KV surge protection make this fixture highly versatile for heavy-duty commercial environments requiring immediate, long-distance illumination.
Sports Courts & High Masts
Because it requires zero warm-up time and restarts immediately, it is perfect for large tennis courts, basketball courts, and football pitches. The 10KV SPD protects against lightning strikes on tall lighting masts.
Coastal Ports & Industrial Yards
The specialized outdoor powder coating provides high resistance to rust and corrosion. This makes it an ideal solution for mounting in high-humidity areas, deep water port terminals, or heavily polluted industrial manufacturing zones.
Mega Billboard & Facade Wash
With a high visible light ratio and multiple optical lens choices (30° to 120°), this fixture throws intense light across massive distances. It is excellent for washing large architectural facades or towering highway billboards.
