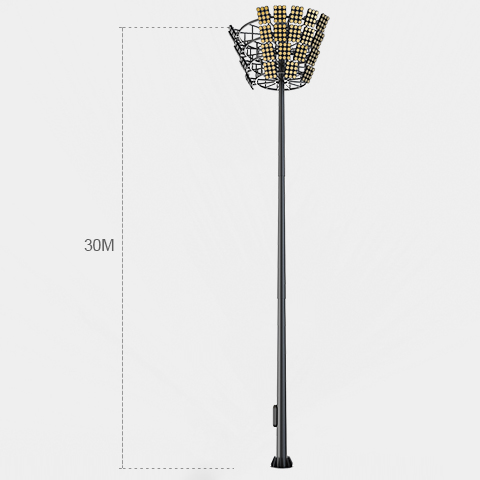

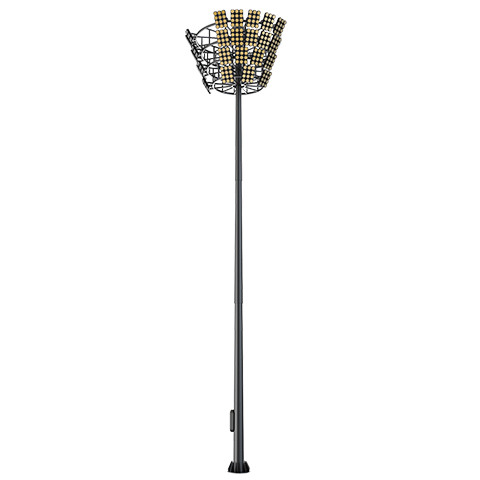

30M High Mast Lighting Tower 10mm Wall Q235B Steel Column
| Diameters | Top: Ø250mm / Bottom: Ø650mm |
| Base Plate | Ø1100mm Flange, 30mm Thickness |
| Foundation | 16 pcs x M36 Anchor Bolts (H2000mm) |
Talk to Our Engineer Now 1. Structural Carbon Steel Column (10.0mm Max Wall)
Operating at an extreme height of 30 meters generates massive wind shear and bending moments. The column is constructed from high-yield Q235B structural carbon steel, featuring a conical taper from a broad Ø650mm base to a Ø250mm top. Depending on the installation site’s dynamic wind load calculations, structural engineers can specify 6.0mm, 8.0mm, or 10.0mm wall thickness options to prevent structural deflection under heavy multi-fixture payloads.
2. Mega-Scale Foundation Anchoring (16x M36 Bolts)

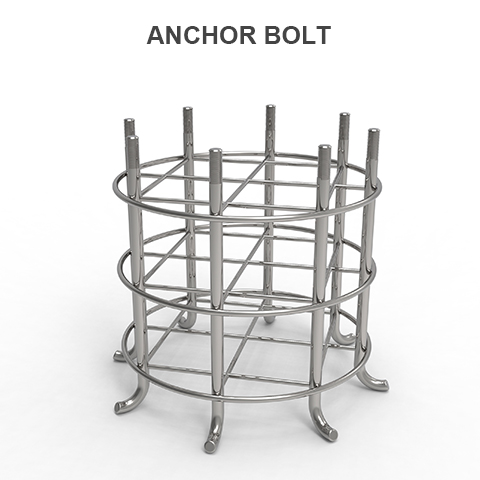

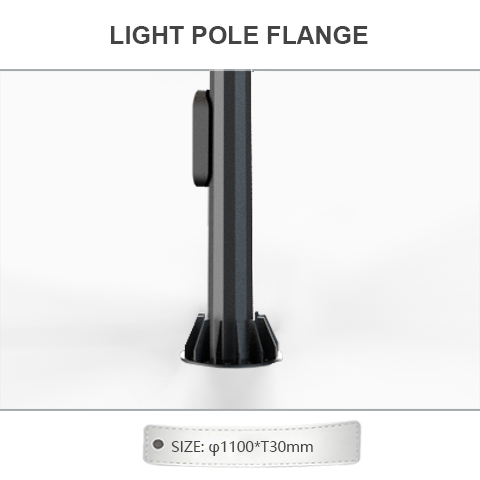

The foundation connection system is designed to transfer extreme overturning moments directly into deep concrete footings. It incorporates an oversized Ø1100mm flange base plate with a solid 30mm thickness. The concrete anchoring relies on a dense embedment cage of 16 pieces of heavy-duty M36 anchor bolts (2000mm length), ensuring the 30M lighting tower remains completely rigid during severe weather and hurricane-force winds.
3. HDG Galvanized Anti-Corrosion Standard

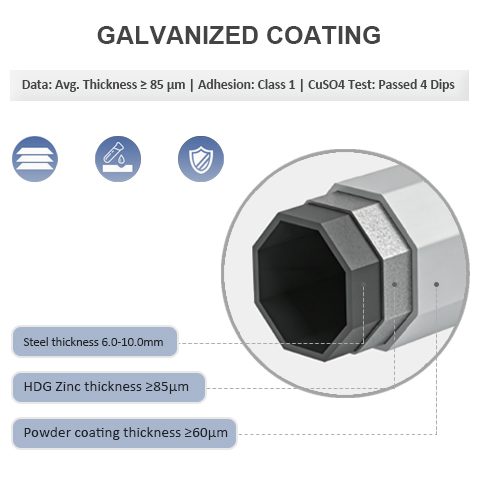

To meet municipal and maritime infrastructure longevity requirements, the entire steel mast is submerged in molten zinc (Hot Dipped Galvanizing), creating a metallurgical bond with a zinc coating thickness of ≥85μm. A secondary ≥60μm powder coating is applied, shielding the industrial lighting tower from continuous coastal salinity, aviation fuel exhaust, and UV degradation.
| Model Reference | DL01-A01F03-005 |
| Mast Height | 30M (Approx. 98.42FT) |
| Structural Material | Q235B Carbon Steel |
| Top Shaft Diameter | Ø250mm |
| Bottom Shaft Diameter | Ø650mm |
| Steel Wall Thickness | 6.0mm / 8.0mm / 10.0mm (Optional) |
| Base Plate (Flange) Dia. | Ø1100mm |
| Base Plate Thickness | 30mm |
| Foundation Bolts | 16 Pieces – M36 |
| Embedment Depth | H2000mm |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Standard) |
| Powder Coating | ≥ 60μm Thickness (IEC/IECEE Standard) |
| Structural Design | Dynamic Wind Load Analysis Certified |
Mega-Infrastructure Applications for 30M Lighting Towers
A 30-meter (100ft) high mast with a 10.0mm wall thickness and a 1100mm base plate is a specialized structural asset designed strictly for massive civil engineering operations where maximum clearance and absolute stability are required.
Deep-Water Seaports & Container Terminals
Civil Engineering Demand: Mega container yards require lighting structures that operate above the clearance height of massive ship-to-shore (STS) gantry cranes and reach stackers, while enduring constant coastal typhoons.
Mast Specification: The 30M height eliminates operational obstruction. The foundation relies on sixteen M36 (2000mm deep) anchor bolts to neutralize extreme hurricane-level overturning moments. The strict dual-layer HDG (≥85μm) coating prevents rapid oxidization in highly saline marine environments.
International Airport Tarmacs & Aprons
Civil Engineering Demand: Aviation authorities dictate strict lux levels over vast expanses of tarmac. Lighting must not interfere with ground support equipment or pilot visibility.
Mast Specification: A 30-meter elevation allows a single tower to cast a daylight-equivalent beam across multiple aircraft parking bays, minimizing the total number of physical poles on the tarmac. The 10.0mm wall option provides absolute rigidity for heavy LED floodlight arrays.
Multi-Tier Highway Interchanges
Civil Engineering Demand: Illuminating highly complex, multi-level highway junctions requires an ultra-high central light source to prevent shadowing and ensure uniform visibility across up to four elevation tiers.
Mast Specification: At 30 meters, this lighting tower acts as a massive central luminary hub. By replacing dozens of standard roadside poles, it drastically reduces electrical trenching complexity, lowers collision risks, and creates a safer visual environment for high-speed transit.
Mining Sites & Heavy Industrial Plants
Civil Engineering Demand: Open-pit mines and heavy industrial plants operate massive dump trucks and excavators 24/7. Ground-level lighting is easily destroyed by heavy machinery.
Mast Specification: Elevating the light source to 100 feet removes the infrastructure from the active hazard zone. The 1100mm x 30mm thick flange plate absorbs continuous ground vibrations generated by heavy freight and mining operations, preventing foundation fatigue over decades of continuous use.
