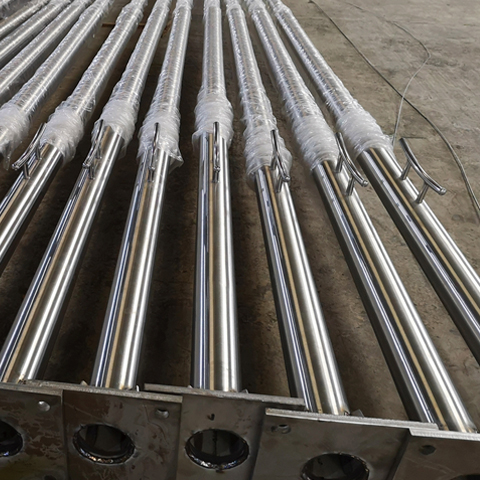

9M Commercial Stainless Steel Flag Pole Built In Hand Crank
| Diameters | Top: Ø80mm / Bottom: Ø152mm |
| Wall Thickness | 2.5mm |
| Flange Plate | 320 x 320 x 14mm |
Talk to Our Engineer Now 1. Architectural Grade 304/316 Stainless Steel

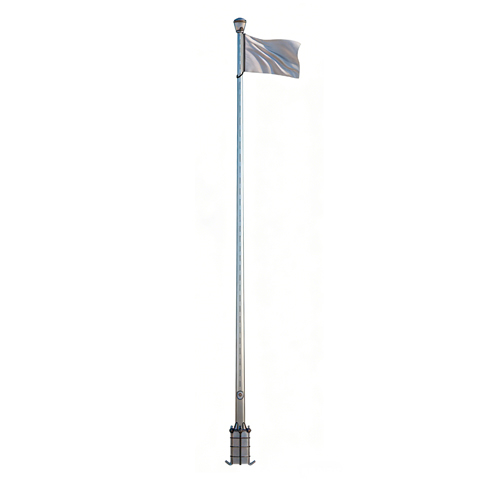

Designed for premium civic and commercial applications, this 9-meter mast is constructed entirely from high-grade 304 or 316 stainless steel. This material provides absolute natural resistance to oxidation and coastal salinity. Finished with a sophisticated brushed or satin texture, it delivers a permanent, high-end metallic luster that eliminates the need for lifecycle repainting.
2. Vandal-Proof Internal Halyard System

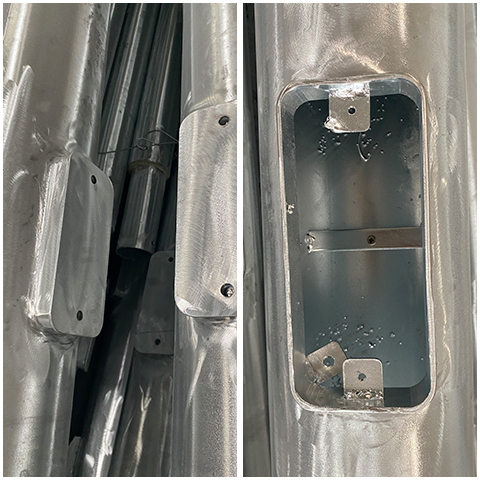

Traditional external ropes are notorious for theft, vandalism, and the loud “clanking” noise they generate against the pole. This model features an advanced Internal Halyard System. The stainless steel wire rope operates entirely inside the hollow shaft via a built-in geared hand crank. Accessible only through a locked flush service door, it guarantees tamper-proof security and completely silent operation.
3. Upgraded Base Anchoring for 9M Elevations

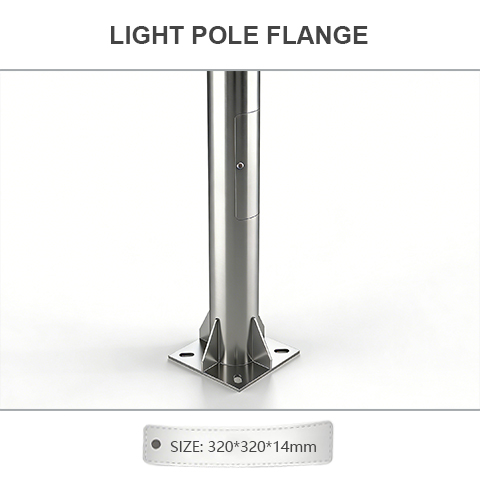

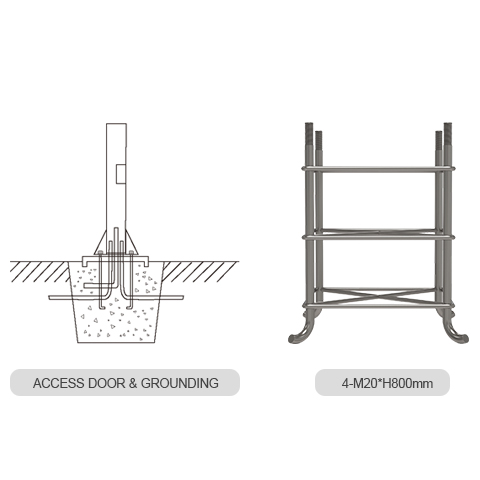

Flying a standard 3# flag (1920x1280mm) at 9 meters generates severe overturning moments. To counteract this, the bottom diameter is expanded to Ø152mm. The foundation relies on a heavy-duty 320x320mm square flange plate (14mm thick) and is secured by four M20 anchor bolts with an extended 800mm embedment depth, ensuring absolute plumbness under dynamic wind loads.
4. 360° Rotating Finial & Anti-Tangle Hardware
To ensure the flag remains flawlessly displayed regardless of sudden wind shifts, the top assembly utilizes a 360° smooth-rotating finial integrated with an internal pulley. A suspended counterweight rod and guide bead system apply continuous downward tension, preventing the fabric from wrapping or tangling around the mast during turbulent weather.
| Model Reference | DL01-A01G17-004 |

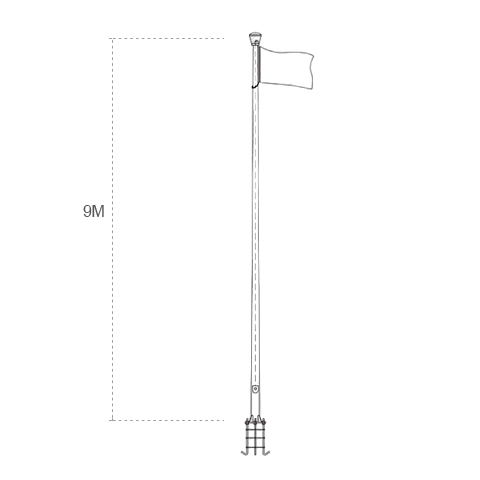

| Pole Height | 9M (Approx. 29.5FT) |
| Structural Material | 304 / 316 Grade Stainless Steel |
| Top Shaft Diameter | Ø80mm |
| Bottom Shaft Diameter | Ø152mm |
| Structural Wall Thickness | 2.5mm |
| Hoisting Mechanism | Internal Halyard with Built-in Hand Crank |
| Halyard Material | Stainless Steel Wire Rope |
| Anti-Tangle Hardware | Counterweight Rod, Guide Bead & 360° Finial |
| Recommended Flag Size | 3# Standard Flag (1920x1280mm) |
| Base Flange Dimensions | 320 * 320 * 14mm |
| Foundation Bolts | 4 Pieces – M20 (H800mm) |
| Surface Finishing | Brushed / Satin / Polished Metallic Finish |
Commercial & Civic Applications for 9M Stainless Flag Poles
The 9-meter (30ft) specification offers a commanding presence, making it the preferred choice for multi-flag arrays at international venues, large government plazas, and expansive corporate parks.

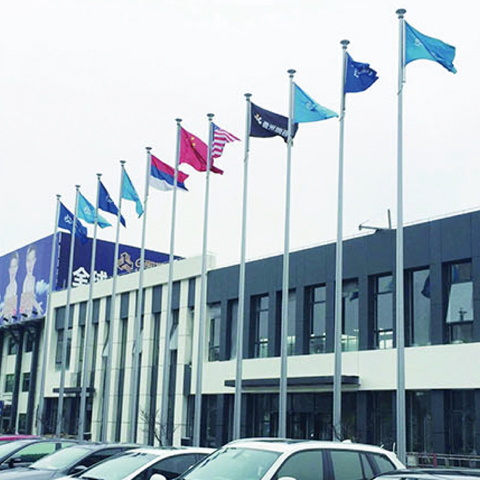

Exhibition Centers & International Venues
Display Strategy: International venues often require long arrays of multiple flagpoles to host multinational events. The 9M height ensures flags are visible from great distances without being dwarfed by massive exhibition hall architecture.
Structural Benefit: The deep 800mm M20 anchor bolts guarantee that even in a long linear array, every single mast remains perfectly plumb and uniform. The anti-tangle 360° finials ensure all national flags fly independently and cleanly.
Government Plazas & Memorial Parks
Display Strategy: Civic and memorial spaces demand an environment of quiet reverence. Traditional external halyards slap violently against hollow poles in the wind, causing severe acoustic disruption.
Structural Benefit: The internal stainless wire rope system completely silences the hoisting operation. The intrinsic rust-proof nature of 304/316 stainless steel guarantees that corrosive rust stains will never bleed onto the concrete monument bases.
Corporate Headquarters & Luxury Estates
Display Strategy: Premium brands utilize flagpoles at their main entrances to project prestige. The brushed stainless steel finish aligns seamlessly with modern glass-and-steel corporate architecture.
Structural Benefit: The built-in geared hand crank mechanism is secured behind a locked access door, preventing unauthorized lowering or theft of expensive, custom-branded corporate flags.
