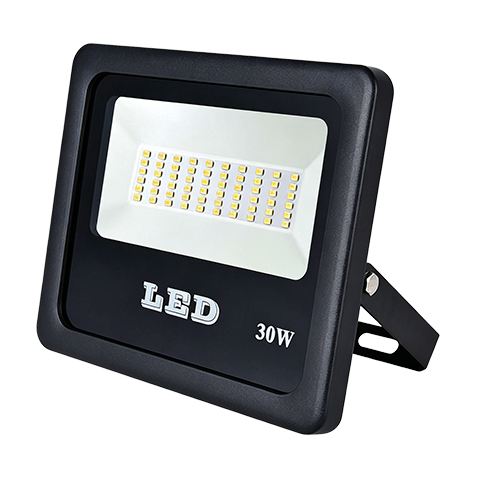

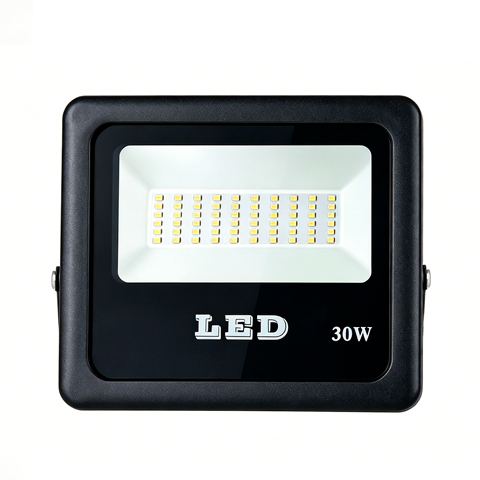

30W Outdoor LED Flood Light IP66 Waterproof SMD Fixture for Landscape Wash
| LED Chip | SMD2835 |
| Driver | Meanwell / Inventronics / Dawn |
| IP Rating | IP66 Waterproof |
Talk to Our Engineer Now 1. Scientifically Engineered Thermal Convection

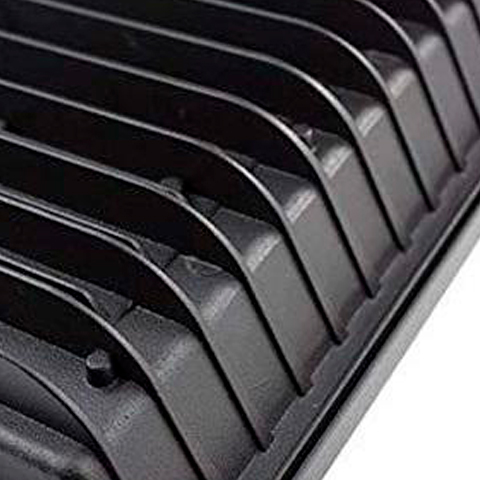

Even at 30W, poor heat management will destroy LEDs. This model features a thickening die-cast aluminum housing with a striped heat sink specifically engineered for optimal thermal air convection. This scientifically verified design rapidly dissipates heat into the surrounding air, preventing lumen depreciation and ensuring the promised 50,000-hour lifespan.
2. High-Efficiency SMD2835 LED Array
Unlike tightly focused COB chips, this 30W fixture utilizes an advanced SMD2835 LED chip array. This layout produces a softer, highly uniform surface wash of light with excellent brightness (up to 120lm/W). It is perfect for short-to-medium range architectural wall washing or signage illumination where harsh center-beam glare must be avoided.
3. Industrial-Grade Drivers & Surge Protection
We refuse to use cheap electrical components in our compact models. This 30W flood light integrates Tier-1 CE-EMC certified power supplies (Meanwell, Inventronics, or Dawn). Furthermore, it is paired with robust Surge Protection Devices (SPD) capable of absorbing electrical strikes from 2.5KV up to a massive 10KV, guaranteeing stability in unstable commercial grids.
4. Slim IP66 Waterproof Construction
Measuring only 195x165x40mm, this slim fixture provides significant light output without becoming a visual eyesore on building exteriors. The tempered glass and die-cast housing are completely sealed to a strict IP66 dustproof and waterproof rating, easily surviving heavy rainstorms and direct sprinkler hits.
| Model Number | DL01-A07B10-003 |
| Power Consumption | 30W |
| LED Chip Type | SMD2835 (Uniform Surface Wash) |
| Luminous Efficacy | 90-100 LM/1W ; 110-120 LM/1W Options |
| Driver Options | Meanwell / Inventronics / Dawn (CE-EMC) |
| Input Voltage | AC85-305V / AC165-277V |
| Power Factor (PF) & Ra | PF > 0.90 / Ra 70 |
| Surge Protection (SPD) | 2.5KV / 4KV / 6KV / 10KV Options |
| Housing Material | Die-cast Aluminium + Glass; PC diffuser or AL diffuser |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Product Dimensions | 195 x 165 x 40 mm |

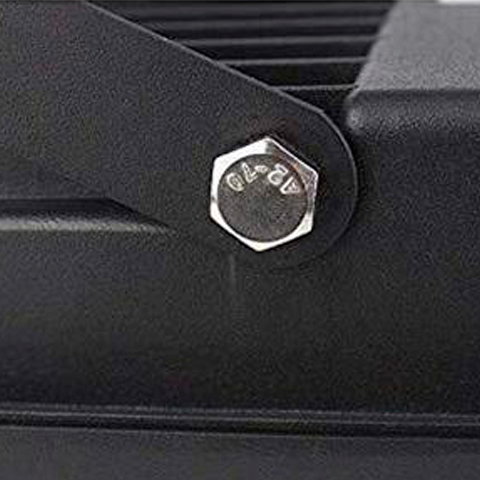

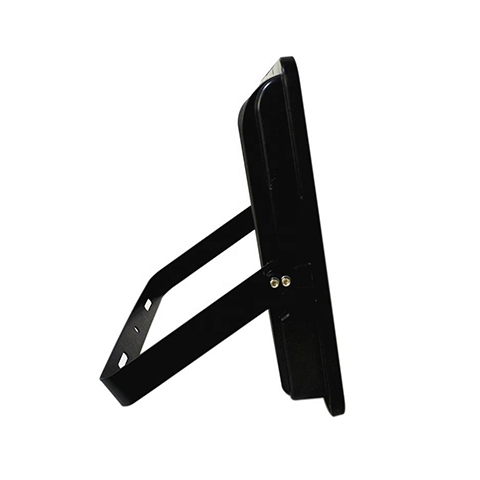

| Installation Mounts | Wall mounted, Ceiling mounted, Floor mounted via adjustable bracket |
| Lifespan & Warranty | 50,000 Hours / 3-5 Years Warranty |
Where Does This 30W SMD Flood Light Excel?
At 30W, this fixture provides significant output while maintaining a slim profile. The uniform SMD2835 light distribution and industrial-grade surge protection make it the ultimate choice for precise architectural and medium-range illumination.
Architectural Wall Washing
Mounted at ground level or under eaves, the SMD array provides a soft, wide wash of light perfect for highlighting the textures of brick, stone, or modern building facades without creating harsh, glaring hot spots.
Commercial Signage & Billboards

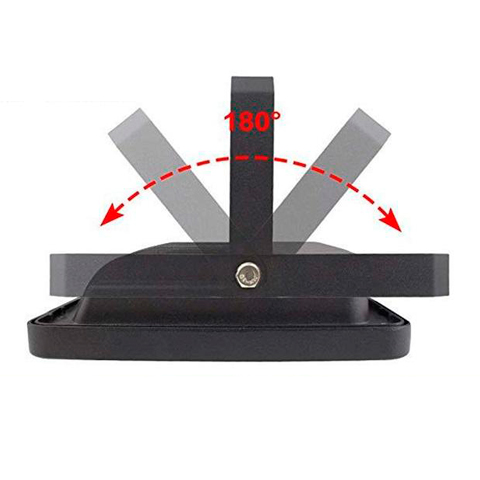

For medium-sized retail signs and low-level billboards, 30W of high-efficacy SMD LED light ensures the entire sign is evenly lit. The adjustable bracket allows for precise aiming to eliminate shadows, making commercial branding pop clearly at night.
Perimeter Security & Pathways
This 30W fixture offers brilliant security lighting for residential driveways or commercial perimeters. The industrial-grade 10KV SPD option ensures that standard grid fluctuations or minor lightning strikes won’t cause premature driver burnouts, providing true peace of mind.
