5M Aluminum Tapered Light Pole Manufacturer 3mm Thickness
| Diameters | Top: Ø65mm / Bottom: Ø130mm |
| Wall Thickness | 3.0mm (Heavy Duty) |
| Anchor Bolts | 4-M16 H600mm |
Talk to Our Engineer Now 1. Commercial 5M Tapered Profile

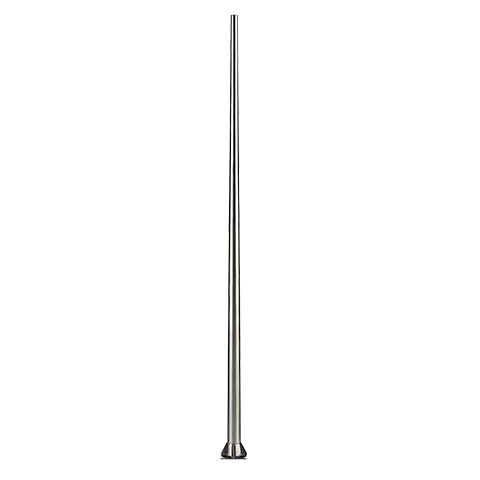

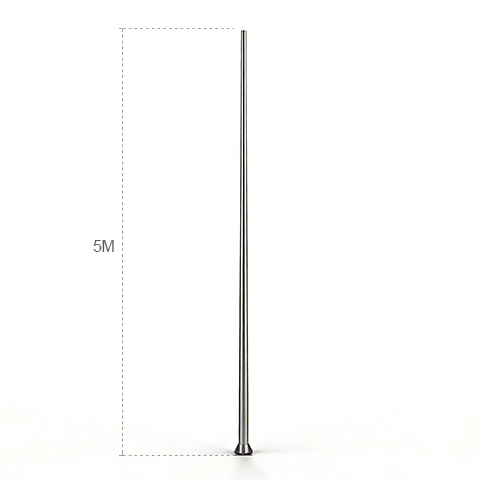

Standing at 5 meters (approx. 16ft), this lighting post features a conical tapered design, graduating from a Ø130mm bottom to a Ø65mm top. This aerodynamic profile minimizes wind resistance while easily accommodating standard commercial street light fixtures.
2. Upgraded 3.0mm Heavy-Duty Thickness
To support the increased 5M height, the aluminum wall thickness is upgraded to a solid 3.0mm. Manufactured via an advanced spinning and heat treatment process, it offers superior tensile strength and structural integrity for public infrastructure.

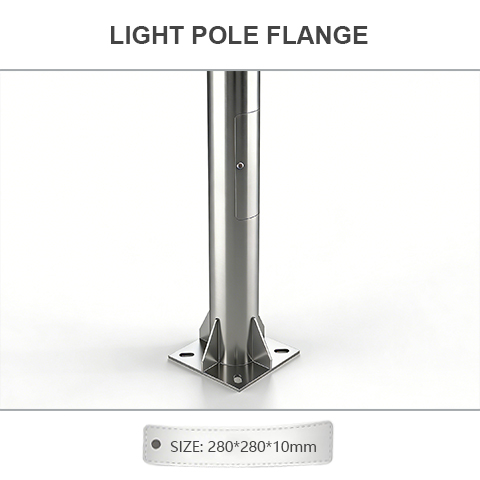

3. Enlarged 280mm Flange Base

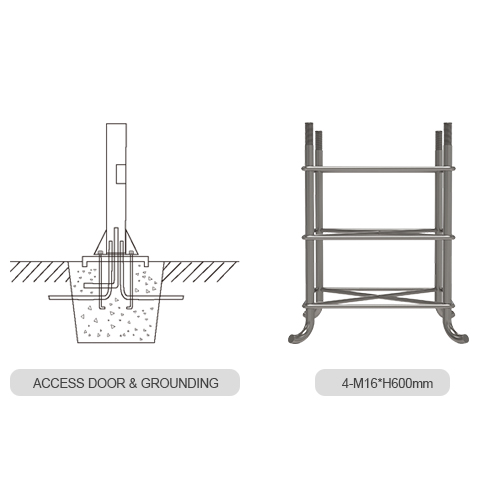

Ground installation is secured by a massive 280*280*10mm welded flange plate. Paired with four heavy-duty M16 (H600mm) anchor bolts, it effectively distributes dynamic wind loads, ensuring safety in open commercial spaces.

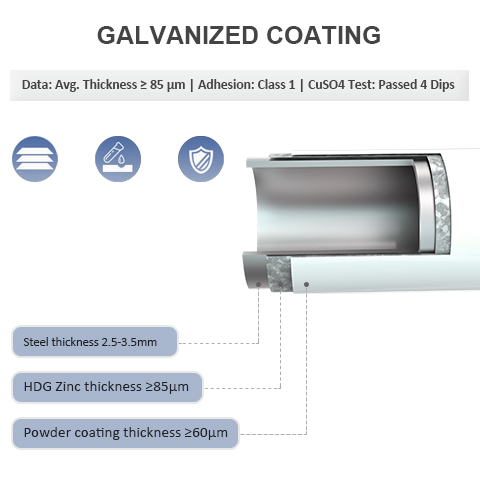

4. >25 Years Rust Resistance
The pole is protected by a premium powder coating exceeding 60um. This weather-proof finishing provides exceptional corrosion and rust resistance, guaranteeing a maintenance-free lifespan of over 25 years.
| Model No. | DL01-A01D03-003 |
| Pole Height | 5M (Approx. 16.4FT) |
| Top Diameter | Ø65mm |
| Bottom Diameter | Ø130mm |
| Wall Thickness | 3.0mm |
| Flange Plate Size | 280 * 280 * 10mm |
| Anchor Bolts | 4-M16 H600mm |
| Surface Finishing | Powder Coating (>60um thickness) |
| Color | Customization Available |
| Warranty | > 20 Years |
Ideal Applications for 5M Heavy-Duty Poles
Upgraded with 3.0mm thickness and a 280mm flange, this 5-meter (16ft) pole is built to handle commercial LED fixtures in high-traffic and open areas.

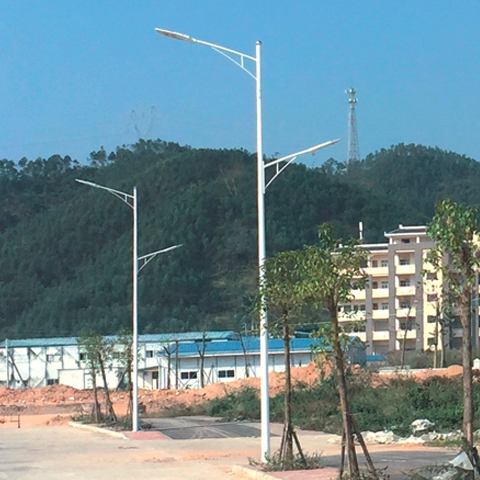

Urban Streets & Boulevards
The 5-meter height elevates street lights perfectly to illuminate city side streets, boulevards, and pedestrian crossing zones. The tapered design adds a premium architectural touch to municipal urban planning.
Commercial Parking Lots
Open parking lots experience higher wind loads. The upgraded 3.0mm wall thickness and robust M16 anchor bolts provide the necessary structural stability to safely support heavier LED area lights in commercial plazas.
Public Plazas & Campuses
Ideal for university campuses, corporate parks, and large public squares. The powder-coated finish ensures >25 years of rust resistance, significantly reducing long-term maintenance costs for property managers.
