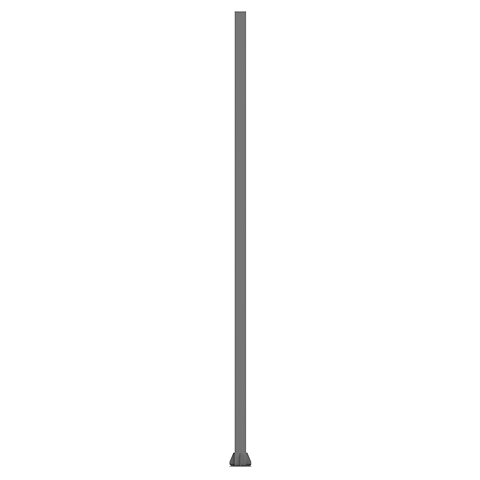

7M Straight Square Light Pole 120mm Uniform SHS
| Dimension | Constant 120x120mm (Straight Square) |
| Wall Thickness | 2.75mm (Heavy Duty) |
| Foundation | 300x300x10mm Flange / 4-M18 (H700mm) Bolts |
Talk to Our Engineer Now 1. Monolithic Pillar Aesthetic (Constant 120x120mm SHS)
Diverging from traditional tapered profiles, this architectural mast utilizes a completely straight, non-tapered Square Hollow Section (SHS). The immense, uniform 120x120mm dimension across a 7-meter span elevates the pole from a mere utility fixture to a deliberate architectural statement. The wide, flat planes provide immense torsional rigidity against wind drag while perfectly mirroring the linear language of modern commercial architecture.
2. Heavy-Duty Anchoring (2.75mm Wall & 300mm Flange)

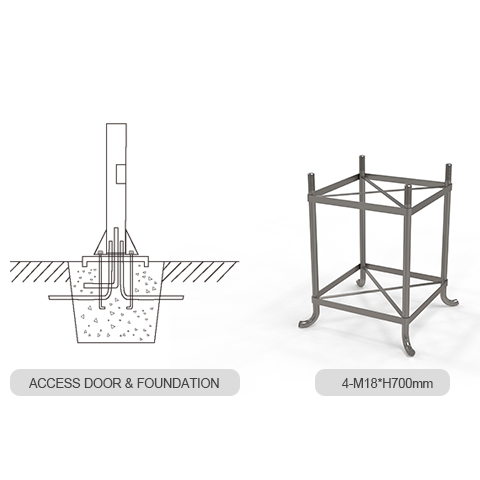

At a 7-meter (23ft) elevation, lighting poles face intense aerodynamic drag, especially when mounting multi-arm heavy fixtures. This pole is heavily fortified with an upgraded 2.75mm structural wall thickness and a massive 300x300mm square flange plate (10mm thick) to prevent base cupping and structural deflection. The system is securely anchored by four deep M18 (700mm) bolts.

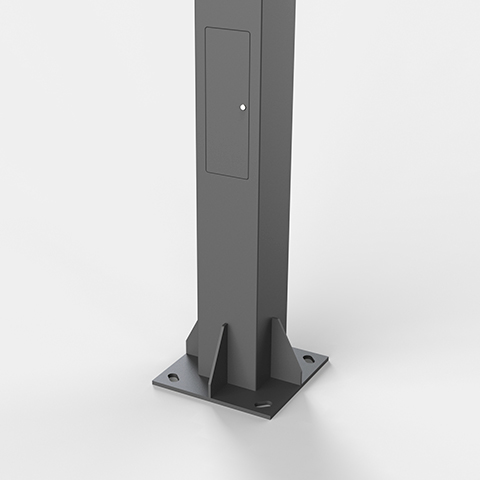

3. Precision Flush Access Compartment
To maintain the uninterrupted flat surfaces of the square mast, it is equipped with a precision laser-cut flush access door. This highly weatherproof compartment provides safe, spacious housing for electrical terminal blocks and heavy-duty circuit breakers (MCBs). An internal grounding lug is welded directly to the steel core, ensuring full compliance with public safety codes.

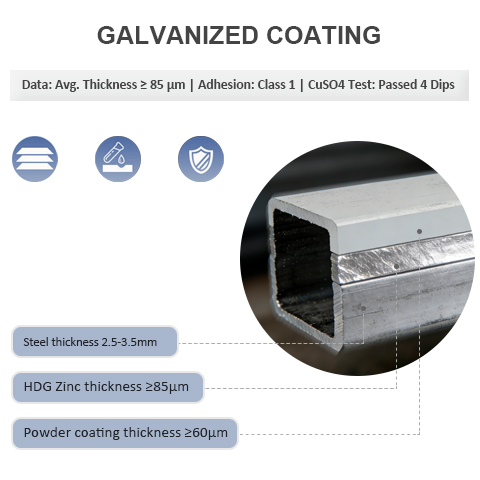

4. Superior Edge Protection (HDG ≥85μm)
The sharp 90-degree corners of square poles are historically vulnerable to premature coating wear. To completely eliminate this risk, the entire column undergoes Hot Dipped Galvanizing (HDG) to deposit a heavy, metallurgical zinc barrier of ≥85μm. This is followed by an architectural powder coating (≥60μm), guaranteeing superior edge protection and decades of rust-free service.
| Model Reference | DL01-A01A03-024 |

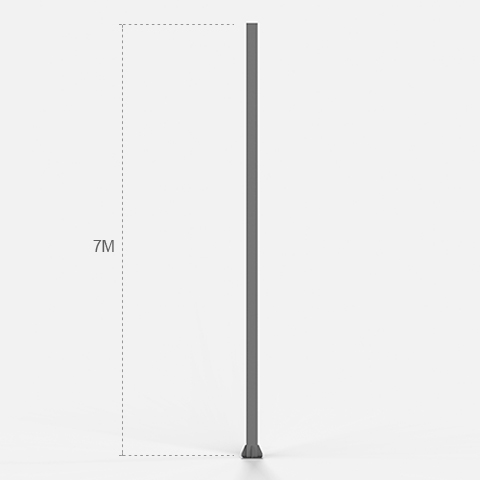

| Pole Height | 7M (Approx. 22.96FT) |
| Structural Material | Q235B Carbon Steel |
| Cross-Section Geometry | Straight Square Hollow Section (Non-Tapered SHS) |
| Pole Dimension | Constant 120 x 120mm (Top to Bottom) |
| Structural Wall Thickness | 2.75mm (Heavy Duty Standard) |

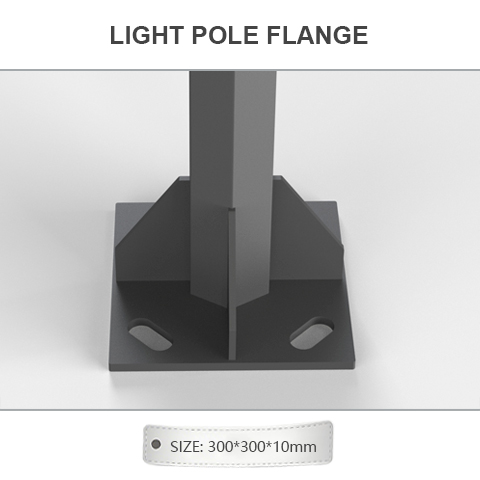

| Base Flange Dimensions | 300 * 300 * 10mm (Oversized Base) |
| Anchor Bolt Spec | 4 Pieces – M18 (H700mm Embedment) |
| Electrical Maintenance | Flush Access Door with Internal Grounding Lug |
| Galvanizing Standard | HDG, Zinc Coating ≥ 85μm (IEC/IECEE Compliant) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Architectural & Commercial Applications for 7M Straight Square Poles
At a prominent height of 7 meters (23ft), the massive, uninterrupted 120x120mm profile of this straight square mast elevates it beyond utility. It serves as a commanding architectural “light pillar” designed specifically for heavy-duty primary commercial and civic spaces.

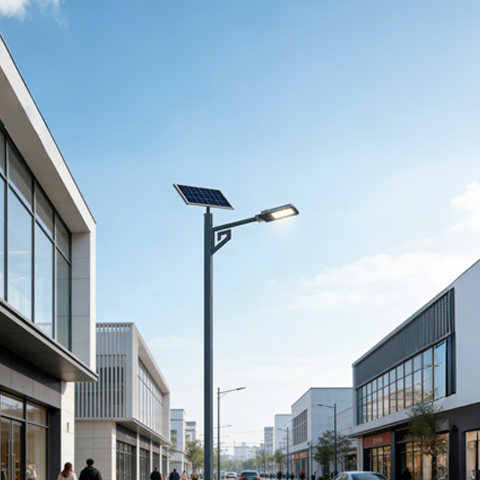

Primary Commercial Boulevards
Design Strategy: A 7-meter elevation pushes the light source high enough to cover wide pedestrian promenades and 3-4 adjacent vehicle lanes efficiently while maintaining a highly geometric, modern streetscape devoid of tapered aesthetics.
Structural Benefit: The upgraded 2.75mm wall, massive 300x300x10mm flange, and deep M18 anchor bolts ensure the mast remains flawlessly vertical over decades, easily resisting the continuous vibration and aerodynamic drag from passing heavy truck traffic.
Mega-Commercial Plazas & Malls
Design Strategy: Large-scale plazas favor these massive straight poles because the 120x120mm uniform dimension flushes perfectly with heavy commercial LED area luminaires.
Structural Benefit: The broad 120mm flat planes provide an incredibly stable, level surface for seamlessly mounting multiple heavy security PTZ cameras, public PA speakers, or large directional signage without twisting under high crosswinds.
Corporate Headquarters & Tech Hubs
Design Strategy: Global corporate parks demand lighting hardware that feels like high-tech architectural infrastructure. The straight square profile mimics modern structural steel building columns.
Structural Benefit: The precision flush access door keeps all electrical wiring and heavy-duty breakers completely concealed, ensuring the pure geometric design is never visually compromised by external boxes.
