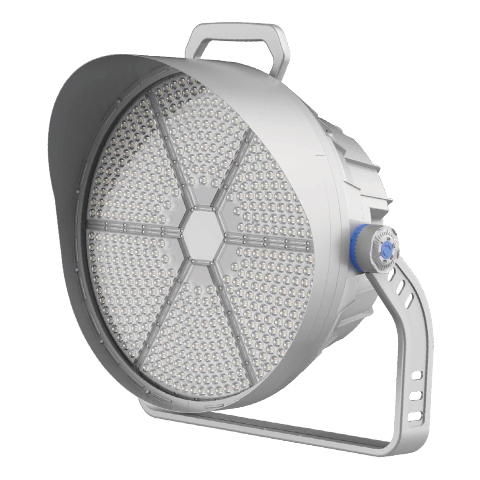

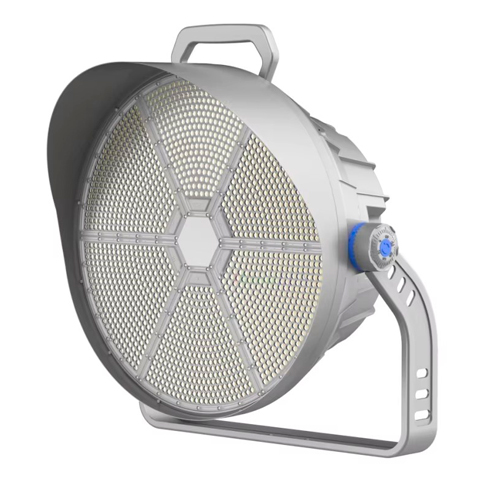

TEIJIN PC Lens LED Sports Flood Light INVENTRONICS Driver
| Material | ADC12 Aluminum Die-Casting |
| Driver | Meanwell / Sosen / INVENTRONICS |
| Installation | 270° Adjustable with Handle Bar |
Talk to Our Engineer Now 1. Advanced Spill Light Control
Equipped with a dedicated top visor, this LED flood light effectively controls spill and upward light. This is crucial for avoiding lighting pollution in residential-adjacent stadiums and ensuring compliance with dark-sky regulations.
2. TEIJIN PC Lens & Premium Drivers
The optical system utilizes Japan-brand TEIJIN polycarbonate lenses, offering high anti-UV performance and IK08 mechanical strength. The electrical system is powered by top-tier driver options including Meanwell, Sosen, and INVENTRONICS, paired with Lumileds chips to deliver 150 lm/W efficacy.

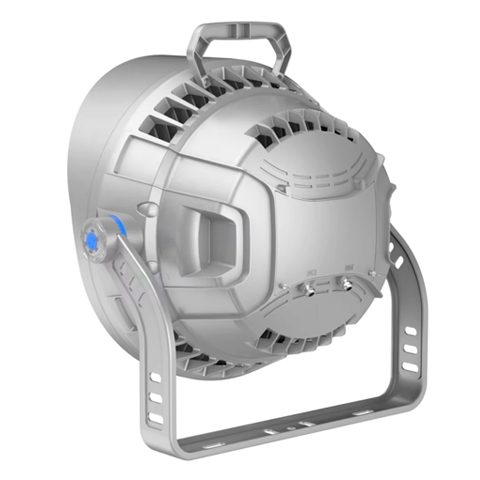

3. ADC12 Housing with Breather Valve
The main fixture housing is crafted from ADC12 aluminum die-casting for excellent thermal management. It includes a built-in breather valve to balance internal and external temperature and humidity. The bracket undergoes special corrosion treatment to reach the WF2 standard, suitable for harsh marine environments.

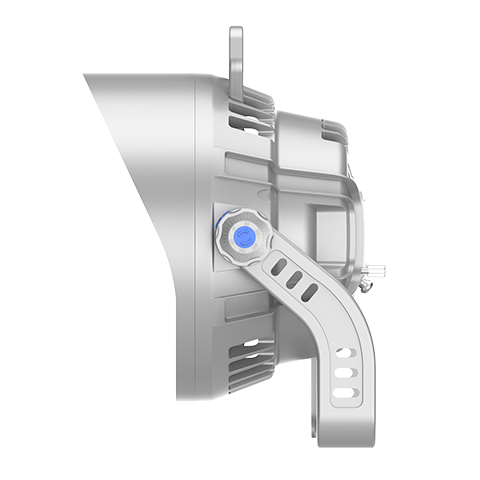

4. Handle Bar & Racked Angle Adjuster
Designed to lower installation costs, the fixture features an integrated handle bar for easy carrying and hoisting during high-mast assembly. The racked angle bracket allows for up to 270° of precise installation adjustment in 10° increments.
| Product Series | SPORTLUX™ High Power Flood Light |
| Available Wattage | 400W, 600W, 800W, 1000W, 1200W |
| Luminous Efficacy | 150 lm/W ±5% |
| LED Chips & Drivers | Lumileds / MW, Sosen, INVENTRONICS |
| Housing Material | ADC12 Aluminum Die-Casting |
| Anti-Corrosion Standard | WF2 Coastal Standard |
| Lens Options | TEIJIN Polycarbonate (IK08) / Optional 4mm Tempered Glass |
| Beam Angle | 10° / 25° / 45° / 60° / 90° |
| Input Voltage | AC100-305V, 50-60Hz |
| CRI (Ra) | 70+ / 80+ / 90+ |
Flood Light Application Scenarios
This industrial-grade LED flood light is engineered to solve specific lighting challenges in heavy-duty environments.
Urban Sports Complexes
For stadiums located near residential areas, the integrated Visor acts as a physical shield to eliminate upward light spill and glare. This ensures compliance with dark-sky requirements while maintaining excellent field visibility.
Coastal Ports & Shipyards
The structural integrity provided by the ADC12 housing and WF2 special corrosion treatment makes this flood light highly resistant to marine salt spray. The optional 4mm tempered glass provides additional protection against severe coastal weathering.

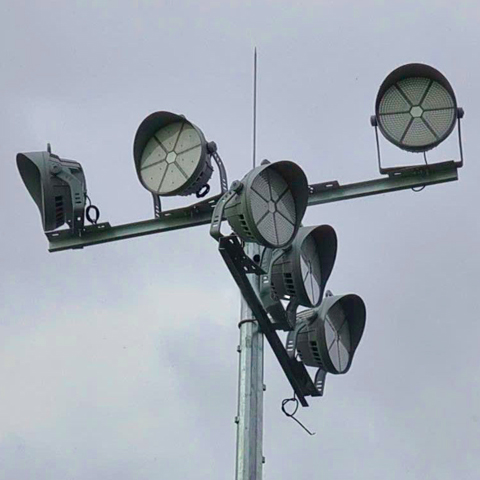

High Mast Area Lighting
Delivering up to 1200W of high power, contractors can illuminate massive areas like airport aprons, mining sites, and railway yards. The integrated Handle Bar significantly reduces the physical strain of hoisting fixtures during high mast installation.
