How to Classify the Outdoor Lighting Installation for a Malaysia Loading Dock
Get Free Quote
To classify the outdoor lighting installation for a warehouse loading dock, divide the site into loading-task, pedestrian-route, doorway and perimeter zones before selecting fixtures. This Lighting Design Reference uses Dawn Lighting’s 20W Outdoor LED Flood Light IP66 Waterproof SMD Fixture for Security at a selected 4m mounting height and approximately 9m spacing under the canopy. Final spacing and aiming require the exact site dimensions and photometric file.
How to Classify the Outdoor Lighting Installation
The loading edge needs continuous horizontal visibility for handling goods. The marked pedestrian lane needs a readable route without glare. Doorways need vertical visibility at locks and thresholds, while perimeter areas usually need lower background light. Treating these as separate zones prevents one bright fixture from trying to solve every task.
For a rainy tropical site, wet concrete increases reflections and can make high-intensity hot spots uncomfortable. Compact low-wattage luminaires mounted under the canopy can provide overlapping, controllable light on the working surface.
Selected 20W IP66 SMD Flood Light Layout
The DL01-A07B10-002 uses a 20W SMD2835 array and publishes 90-100 lm/W and 110-120 lm/W options. The page lists Meanwell, Inventronics or Dawn drivers, AC85-305V or AC165-277V input, PF above 0.90, Ra 70, 2.5kV to 10kV surge options, IP66 protection and a compact 146 x 126 x 37mm die-cast aluminum and glass housing.

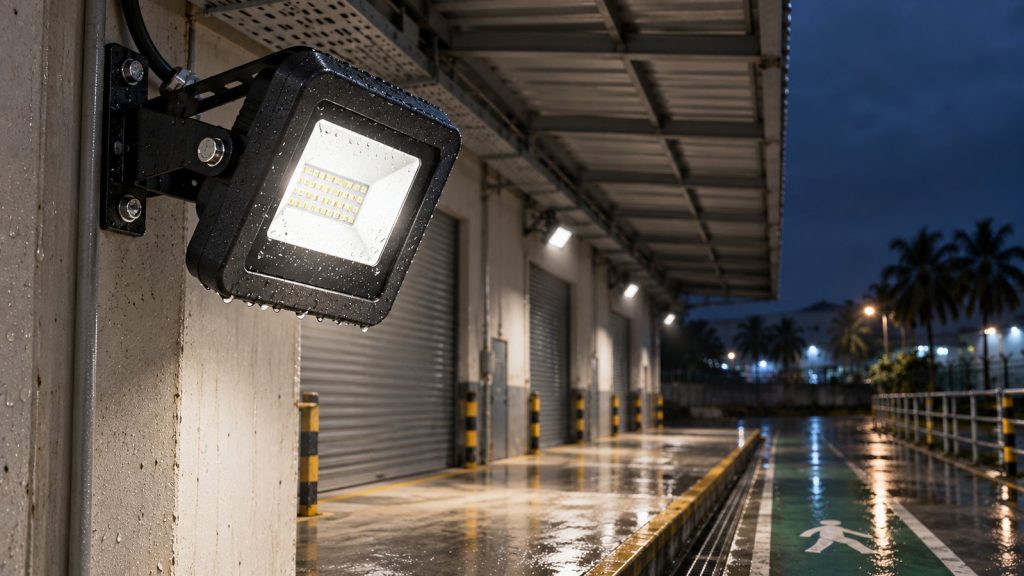

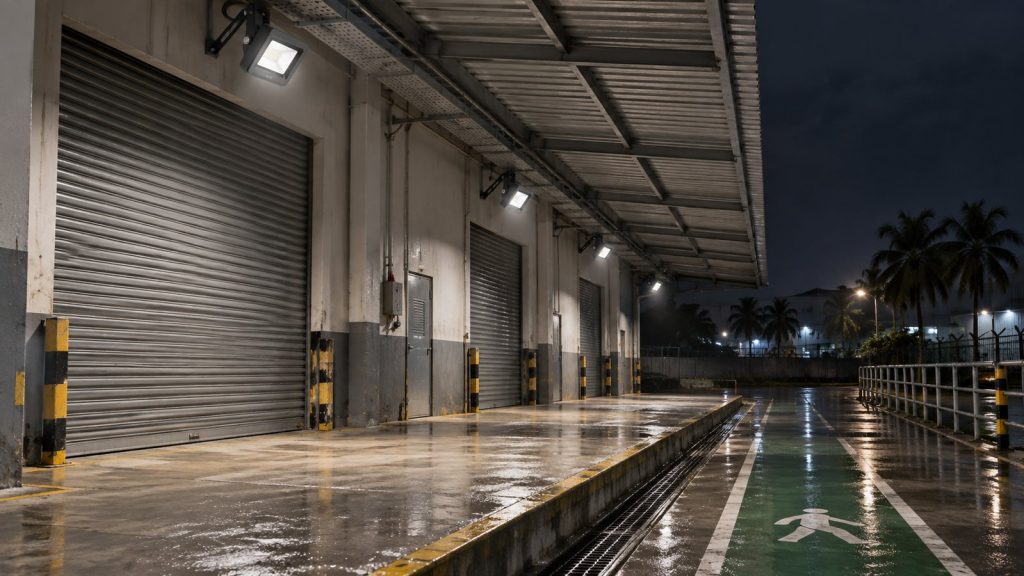

Wall, ceiling and floor mounting are supported through the adjustable bracket. This reference places the fixtures beneath the canopy at 4m height and about 9m spacing, angled across the dock edge and pedestrian lane. The main output stays on the concrete work surface, not the wall or roof.
The 50,000-hour published lifespan and three-to-five-year warranty are family values. Confirm the selected driver, surge protector, diffuser, voltage and warranty term in the final quotation.
Monsoon Exposure and Commissioning
Use sealed cable glands, outdoor junction boxes and corrosion-compatible bracket fasteners. Position the cable entry and drip loop so water cannot run into the luminaire or wall penetration. Maintain clear access for cleaning the glass and checking bracket torque.
Test the installation after rain. Inspect reflections from both directions of travel, measure the loading edge and route, and correct glare or dark gaps before final acceptance. Record each aiming angle so a fixture can be returned to its approved position after maintenance.
Frequently Asked Questions
What installation zones should a loading dock use?
Separate loading tasks, pedestrian routes, doorways and perimeter background areas so each receives appropriate light.
What protection rating is published for the 20W fixture?
The DL01-A07B10-002 is listed as IP66 dustproof and waterproof.
Which surge options are published?
The product page lists 2.5kV, 4kV, 6kV and 10kV options.
Is 9m spacing guaranteed?
No. It is a reference value that must be checked with the exact photometric file, mounting geometry and target illuminance.
Talk to Dawn Lighting
Use compact 20W fixtures to cover loading and pedestrian zones without flooding the entire facade with light. Dawn Lighting can coordinate the driver, surge protection, mounting details and project-specific aiming layout.
