Oman Coastal Port Yard 200W LED Flood Lighting Solution
Get Free Quote
Oman | Hot dusty saline coast | Port logistics and container handling yard
Exterior LED lighting systems for an Oman port yard need controlled high-output coverage, corrosion-resistant construction and surge protection that reduces maintenance on exposed coastal sites. This design reference uses Dawn Lighting’s 200W IP66 COB flood light on selected 12-meter poles at approximately 35-meter spacing, with final quantity, beam angle and aiming determined by the approved lighting calculation.
Exterior LED Lighting Systems for a Hot Coastal Port
Container lanes, perimeter fences, loading zones and changes in pavement level require clear horizontal visibility without sharp bright-dark transitions. Dust and salt can reduce optical performance over time, while uncontrolled upward light wastes energy and increases glare for operators and neighboring properties.
The luminaires should be installed above the working area and aimed downward across the asphalt. Aiming angles must keep the strongest light inside the task zone, not toward the sea, sky, control-room windows or approaching drivers.

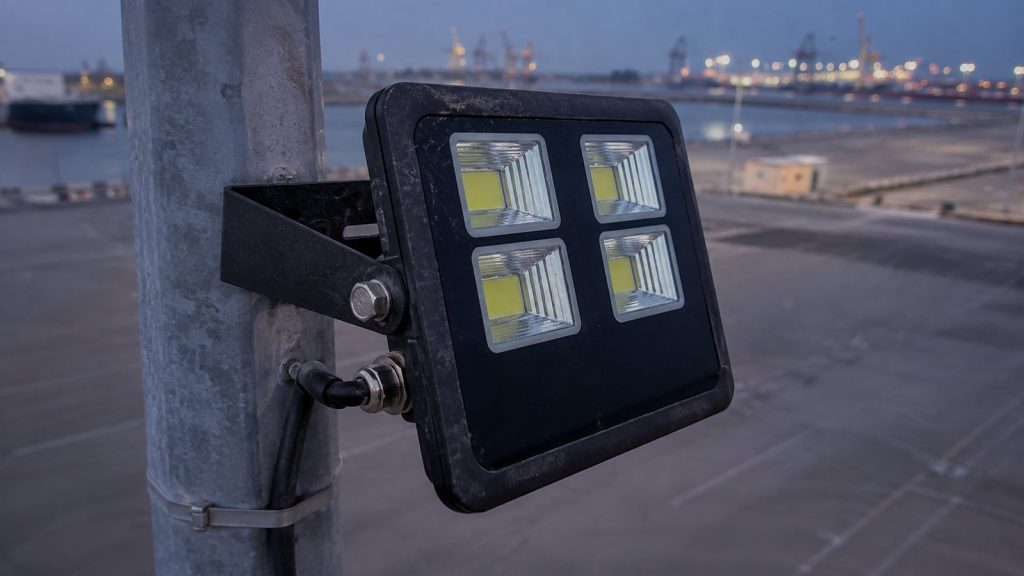

Selected 200W COB Flood Light Configuration
The selected product is model DL01-A07A10-009. Dawn Lighting publishes 200W power, an Epistar COB array, 80-85 lm/W and 90-100 lm/W efficacy options, IP66 protection, die-cast aluminum housing with professional anti-corrosion powder coating and Meanwell, Inventronics or Dawn driver options.
Published optical choices include 30°, 60°, 90° and 120° beam angles. This reference starts with a mixed 60° and 90° scheme: narrower distributions can support longer throws, while wider distributions fill areas near the mast. The final combination must be modeled using the exact fixture files and yard geometry.

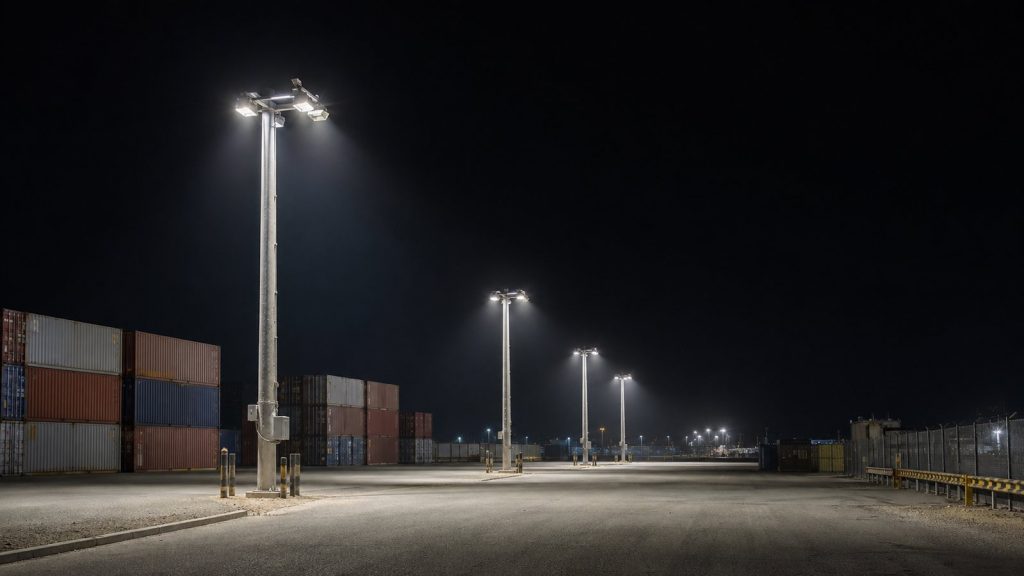

Selected 12-meter poles are shown at roughly 35-meter spacing with two fixtures per pole. This is an illustrative planning arrangement rather than a guaranteed result. Required illuminance, uniformity, mast loading and obstruction from containers can change the number, height and aiming of the luminaires.
Corrosion, Surge and Maintenance Planning
The product page lists surge-protection options from 2.5kV to 10kV and a 50,000-hour life with a 3-5 year warranty. The final quotation should identify the exact driver, SPD, beam angle, input voltage and coating system rather than relying on the family-level options alone.
Plan safe access for lens cleaning and bracket inspection. Commission the system at night after the normal container stacks and fences are in place, then correct excessive glare and dark zones. Confirm foundation design, cable protection, earthing and pole wind loading with the project engineer before procurement.
Frequently Asked Questions
Why use an anti-corrosion flood light at an Omani port?
Salt, humidity and industrial contamination can accelerate coating and fastener degradation, so the specified housing finish and maintenance plan matter.
Which beam angle should be selected?
The product offers 30°, 60°, 90° and 120° options; select the combination through the actual yard photometric model.
Is a 12-meter pole mandatory?
No. It is a reference mounting height. Final height depends on target illuminance, mast loading, glare and maintenance access.
What electrical information must be confirmed?
Confirm input voltage, driver brand, power factor, surge rating, earthing and the approved circuit design.
