100W Precision: UFO High Bay Light 100w for 6–10m Factory Ceilings

UFO High Bay Light 100w is well-suited for factory ceilings in the height range of 6 to 10 meters. At Dawn Lighting, we have worked to fill the gap. Low wattages cause underwhelming illumination. Higher wattages create frustrating glare. Utility for electrical contractors and facility planners for 2026 is the UFO High Bay Light 100w. This 100w fixture provides long life, cost effectiveness, and targets specific needs.

Why 6-10m Factory Ceilings Need a 100W Precision Tool

Not every factory needs a 200 or 300 watt fixture. For ceilings in the 6 to 10 meter range, the UFO High Bay Light 100w is the perfect fit for metal fabrication, assembly shops, and medium-bay warehouses. Here’s why.

•  100W at 9-12 meters provide an average of 150-250 lux, adequate for general factory activities. Anything over 100 watt can create unneeded hot spots. Higher wattages can cause unnecessary energy draw.

•  Balanced beam angle: Works with 60°/90°/120° optics to match aisle widths and rack layouts.

When you choose the UFO High Bay Light 100w, you are not guessing brightness—you are engineering it.

Dawn Lighting‘s Thermal Design: Keeping 100W Cool Under Load

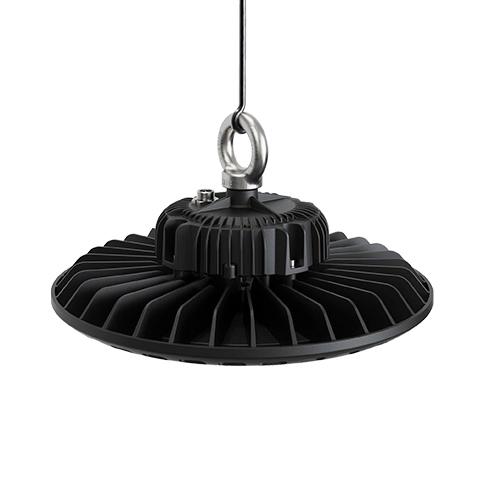

A common concern with compact 100W LEDs is heat accumulation inside the driver cavity. Dawn Lighting solves this with an advanced aluminum fin heat sink that maximizes surface area. Even at full 100W operation for 24/7 shifts, the UFO High Bay Light 100w maintains a low junction temperature, which directly extends LED lifespan beyond 70,000 hours.

Primary thermal benefits:

•  Passive cooling: No fans mean no wear and tear and no noise, perfect for quiet assembly spaces.

•  Housing treated against oxidation: Won’t yellow and will resist corrosion from dry or humid air in factories.

•  Reliability is built in: Ghosts the image for UFO High Bay Light 100w. 8 hours of aging and 500 hours of salt spray tests are done per unit.

For contractors, this means fewer callbacks. For factory owners, it means predictable maintenance schedules.

Customizable Power And Optics: One 100W Platform, Multiple Layouts

The UFO High Bay Light 100w from Dawn Lighting is not a fixed product—it is a flexible platform. You can adjust both power and beam distribution to match exact factory conditions.

Power customization:

•  Standard 100W output

•  Dimmable via 0-10V or DALI (optional) for daylight harvesting

•  Future upgrade path to 150W/200W using the same housing

Optics options:

•  60° beam: High-bay aisles with narrow rack spacing (2–3m width)

•  90° beam: General factory floor coverage, 6–10m height

•  120° beam: Wide open warehouses or cross-docking areas

By choosing a UFO High Bay Light 100w with the right optics, you can reduce fixture count by 15–20% compared to generic 100W lights.

IP65 Durability for Real Factory Environments

Factories expose lighting to dust, metal particles, humidity from cleaning processes, and occasional water spray. The UFO High Bay Light 100w carries a full IP65 rating, meaning:

•  Completely dust-tight: No ingress of airborne fibers or metal fines.

•  Protected against low-pressure water jets: Safe for wash-down areas and near roll-up doors.

Additionally, the lamp body uses an oxidation treatment that passes 500-hour salt spray testing. This makes the UFO High Bay Light 100w suitable for mild corrosive environments such as food processing or battery assembly rooms.

DIALux Precision: See Your 100W Layout Before Installation

Dawn Lighting supports DIALux lighting analysis for every UFO High Bay Light 100w project. Instead of theoretical guesses, you receive:

•  False-color illuminance maps for your specific ceiling height (e.g., 6m, 8m, 10m)

•  Uniformity ratio (U0) values – typically >0.6 for well-designed layouts

•  Glare rating (UGR) calculations to protect worker vision

This service is free for qualified projects and removes guesswork from contractor bids.

Energy Savings Compared to Legacy Lighting

Replace a 250W metal halide fixture with one UFO High Bay Light 100w and you cut energy consumption by 60%. Over 5,000 operating hours per year, the math is clear:

•  250W metal halide (including ballast loss ~290W): 1,450 kWh/year

•  UFO High Bay Light 100w (actual driver efficiency 93%): 930 kWh/year

•  Annual saving per fixture: 520 kWh

For a factory with 100 fixtures, that is 52,000 kWh saved annually—equivalent to removing 37 metric tons of CO₂ emissions.

2026 Purchasing Trend: Verified Results Over Empty Promises

Now, industrial buyers are skeptical. Dawn Lighting backs every UFO High Bay Light 100w with three layers of verification:

•  LED lumen maintenance supported by an LM-80 report

•  Thermal performance supported by an ISTMT report (in-situ temperature measurement)

•  Photometric test file for DIALux users

With the emerging trend in 2026 for procurement decisions based on data, these documents are available upon request.

Installation Simplicity: Mounts, Wiring, And Safety

The UFO High Bay Light 100w uses a standardized mounting hook (optionally pendant or surface bracket). Wiring is straightforward:

•  Input voltage: AC90–305Vac (universal for global factories)

•  Pre-stripped wires or optional NEMA/waterproof connectors

•  0.5m stainless steel safety cable included – prevents fall during maintenance

Contractors report installation time of 12–15 minutes per fixture, including hanging and aiming.

Real-World Application Examples

The UFO High Bay Light 100w currently operates in these factory settings:

•  Automotive parts plant (8m ceiling): 90° beam, 240 lux average – reduced shadowing on CNC machines.

•  Beverage warehouse (6m ceiling): 120° beam, 300 lux – improved pallet label reading.

•  Metal stamping shop (10m ceiling): 60° beam, 150 lux – focused light on press lines without spill.

Each installation used Dawn Lighting’s DIALux recommendation to minimize fixture count while exceeding target illuminance.

Future-Ready: Smart Control Compatibility

Though the base UFO High Bay Light 100w is a standalone high-performance fixture, it also accepts optional:

•  Microwave motion sensor (5.8GHz) for vacancy-based dimming

•  Bluetooth mesh controller for grouping and scheduling

•  0-10V dimming driver for connection to building automation

This future-proofing means your 2026 purchase remains compatible with 2028 smart factory standards.

Conclusion: Precision That Pays Back

The UFO High Bay Light 100w from Dawn Lighting is not a generic LED—it is a purpose-built tool for factory ceilings at 6, 8, or 10 meters. With customized optics, verified thermal management, IP65 durability, and DIALux-backed layouts, this 100W solution delivers the right light exactly where you need it. No waste. No guesswork. Just reliable, energy-saving illumination that keeps production moving.

Contact Dawn Lighting today for a DIALux simulation or a sample order of the UFO High Bay Light 100w. Upgrade your medium-bay factory lighting with precision-engineered performance.

Frequently Asked Questions (FAQ)

Q: What is the actual power consumption of the UFO High Bay Light 100w?

A: The fixture consumes exactly 100W ±5% under full load, with driver efficiency above 93% — no hidden ballast loss.

Q: Is the UFO High Bay Light 100w usable for ceilings lower than 6 meters?

A: Yes but we recommend a maximum output of 60-80W or choose a 120° beam for a less glaring effect.

Q: Is the UFO High Bay Light 100w able to integrate with motion sensors?

A: Yes. A 5.8GHz microwave sensor sells separately and integrates vacancy-based dimming thus providing a 30–50% drop in energy consumption for low traffic areas.

Q: How many UFO High Bay Lights will I need for my 500m² factory with an 8m ceiling?

A: You will likely need 12-16 with an angle of 90° to achieve a brightness of 200-250 lux. For a precise number, we can do a DIALux analysis for free.

Q: How long is the UFO High Bay Light 100w warranty?

A: Our standard 5 year warranty for the driver, LED chips and housing is provided.
