Industrial High Bay Lighting for Warehouses in Hot and Dusty Climates

Industrial high bay lighting should be selected from the work task, ceiling height, racking layout, heat load, and maintenance access. A warehouse in the Middle East or Africa may need to manage heat, dust, unstable power, and long operating hours at the same time. The goal is not maximum lumens; it is useful light on the floor, aisles, racks, and work surfaces with controlled glare.

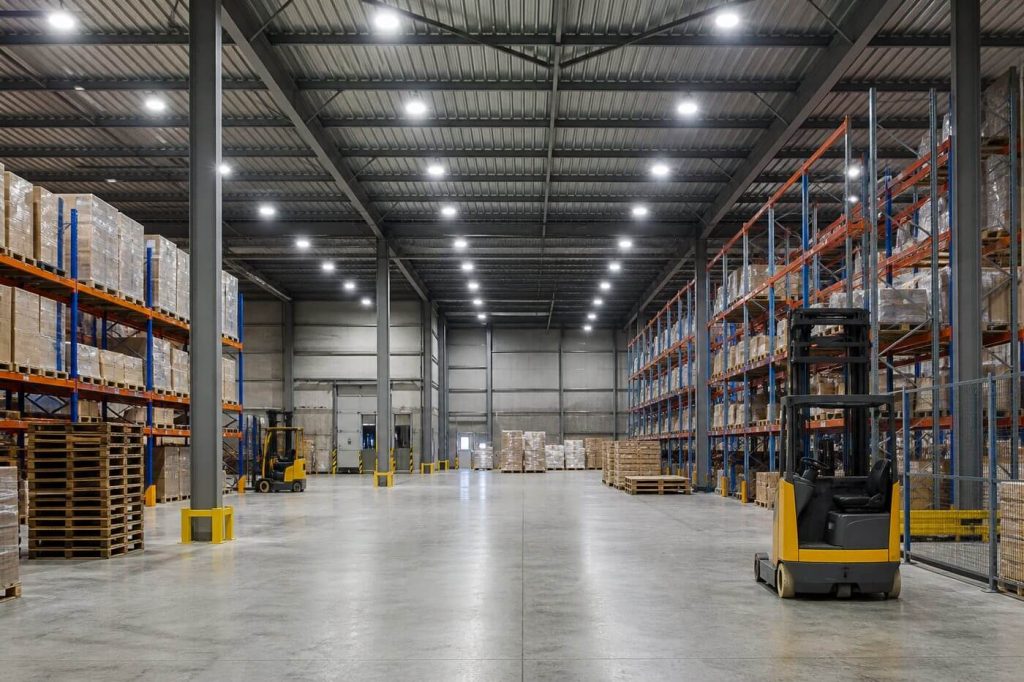

Industrial high bay lighting providing even visibility across warehouse aisles and work areas.

1. Define the Work Task First

A storage aisle, packaging line, loading zone, and inspection bench do not need identical light. Workers need to read labels, see pallet edges, inspect surfaces, and move safely around equipment. If the lighting plan is based only on floor area and wattage, it may leave vertical racks dark while overlighting open floor space.

When discussing a high bay LED lighting manufacturer or supplier, ask whether the design team needs the ceiling height, racking height, aisle width, floor reflectance, task locations, and operating schedule. Those inputs determine the photometric layout more reliably than a single lumen-per-watt claim.

2. Match Lux, Uniformity, and Mounting Height

Industrial high bay lighting lux levels depend on the visual task and safety requirements. The following bands are preliminary planning ranges, not universal legal requirements. The client specification and local workplace standard should control the final design.

A high bay mounting height review should include the lowest and highest fixture positions, not only the nominal roof height. In a warehouse with mezzanines or uneven roof bays, one fixture family may not suit every zone. Use separate calculation grids for floor, workplane, and vertical surfaces when the visual task requires it.

High bay luminaires arranged over long racking aisles with controlled optical overlap.

3. Select the Beam Angle for the Ceiling and Aisles

High bay beam angle affects spacing, glare, vertical illumination, and spill onto walls. A wide beam can work in an open warehouse with a lower ceiling, while a more concentrated beam may be better for tall racks or a higher roof. The optical choice should follow the geometry of the room instead of being copied from another project.

For a high bay lighting DIALux design, request the luminaire photometric file, mounting coordinates, calculation plane, average lux, minimum lux, uniformity, and glare review. If a supplier cannot show the layout assumptions, the quoted wattage is not enough information for a safe purchase decision.

4. Engineer for Heat, Dust, and Electrical Events

High bay lights for hot warehouses need a credible thermal path. LED junction temperature, driver temperature, heat-sink cleanliness, and air movement all influence service life. Dust-resistant high bay lighting also requires an enclosure, cable entry, and cleaning plan that work together.

• Check IP65 or IP66 requirements according to dust, humidity, wash-down, and roof-leak exposure.
• Review ambient temperature limits and thermal derating for the hottest roof zone, not the average room temperature.
• Use high bay lighting surge protection suitable for the building distribution and local lightning environment.
• Where forklifts or maintenance equipment can reach the fixture, review IK rating, guards, mounting hardware, and safe replacement access.
• For coastal or humid industrial sites, check corrosion protection on brackets, fasteners, and cable hardware as well as the luminaire body.

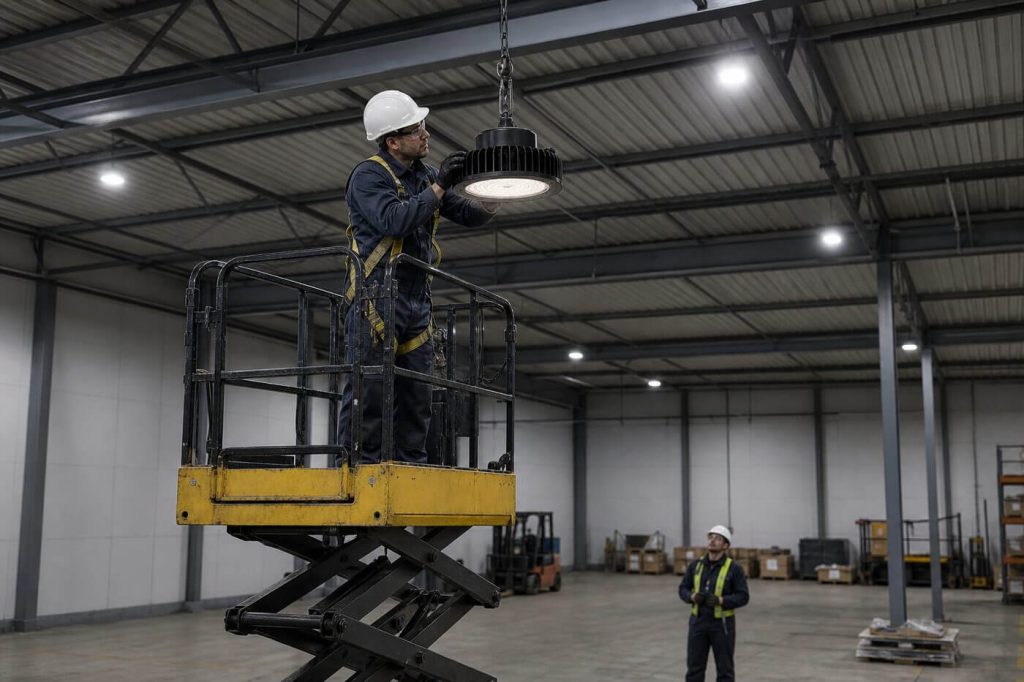

Maintenance staff inspecting a high bay luminaire and heat sink from a safe access platform.

5. LED High Bay Lighting Compared With HID

Many warehouses still operate metal halide or fluorescent systems. An LED upgrade can improve start-up response, control flexibility, and maintenance planning, but only when the new optics provide the required light distribution. A lower connected load is not a success if workers lose visibility at racks or task surfaces.

6. Installation Checklist for a High Bay Project

1. Record ceiling height, roof bays, racking, aisle width, floor reflectance, task locations, and equipment clearance.
2. Define average lux, minimum lux, uniformity, colour temperature, glare expectations, and operating schedule.
3. Select beam angles and mounting points from a photometric model, then check cable routes and access equipment.
4. Confirm IP, IK where needed, driver temperature limit, surge protection, emergency lighting interface, and controls.
5. Commission lighting scenes, verify the workplane with calibrated measurements, and document replacements and spare parts.

FAQ: Questions Buyers Ask

How high should an industrial high bay light be mounted?

High bay fixtures are commonly used in spaces with higher ceilings, but the correct mounting height depends on ceiling geometry, beam angle, rack height, and task plane. A DIALux layout should test the actual mounting coordinates instead of applying a generic height rule.

What lux level is suitable for a warehouse?

Open storage may begin around 100-200 lux, while aisles, packaging, and inspection tasks may require higher levels. These are planning ranges only; the final value should follow the client brief, local workplace requirements, and the visual task.

Can high bay lights operate in hot and dusty warehouses?

Yes, if the luminaire, driver, heat sink, cable entries, and cleaning plan are designed for the site. Review the ambient temperature, thermal derating, IP rating, and dust accumulation on heat-dissipating surfaces.

How do I reduce glare from warehouse high bay lights?

Use the correct beam angle, mounting height, shielding, spacing, and aiming. Check glare from worker eye height and from reflective floors, packaging film, white racks, and polished equipment.

Buy the Lighting Layout, Not Only the Fixture

Industrial high bay lighting is a complete system involving photometry, structure, controls, thermal management, electrical protection, and maintenance. A supplier that can model the warehouse and explain the assumptions gives the project team a stronger basis for procurement.

Share your site plan, target lux, mounting height, operating schedule, and electrical conditions through the Dawn Lighting official inquiry page. The engineering team can review the layout, recommend a suitable fixture package, and prepare a project-specific DIALux simulation and B2B quotation review.
