6M Tapered Round Street Light Pole 132mm to 60mm Q235B Steel Column for Municipal Roadways
| Diameters | Bottom Ø132mm / Top Ø60mm (Tapered) |
| Thickness | 2.0mm |
| Base Plate | 250x250x8mm / 4-M14 (H500mm) |
Talk to Our Engineer Now 1. Aerodynamic Tapered Design (132mm to 60mm)

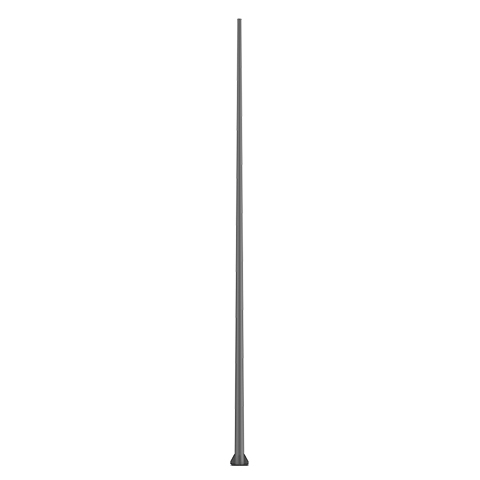

The conical shape isn’t just for classic street aesthetics; it’s a highly efficient structural design. By keeping the mass at the Ø132mm bottom and tapering smoothly to the top, the pole naturally reduces wind drag at higher elevations, transferring the bending moment efficiently down to the base plate.
2. Universal 60mm Top for Easy Fixture Mounting
Contractors love this profile because the top diameter is exactly Ø60mm. This is the international standard for most LED street light slip-fitters. Your installation teams can mount standard cobra-head fixtures or post-top lanterns directly onto the pole without wasting time or money fabricating custom reducing brackets.
3. Reliable Base Anchoring

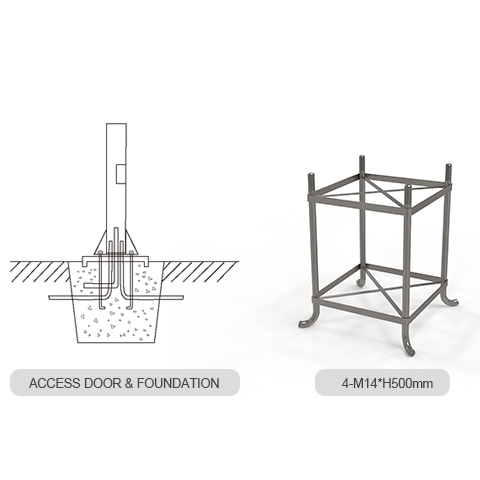

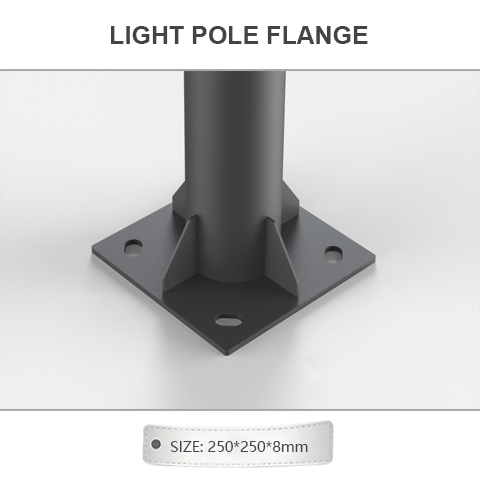

For a 6-meter application, stability is key. We provide a well-proportioned 250x250mm flange plate (8mm thick). The included anchoring kit uses four M14 bolts with a 500mm embedment depth, ensuring the pole stays firmly planted and plumb in standard soil and concrete footings.
4. Inside-Out Rust Protection (HDG)

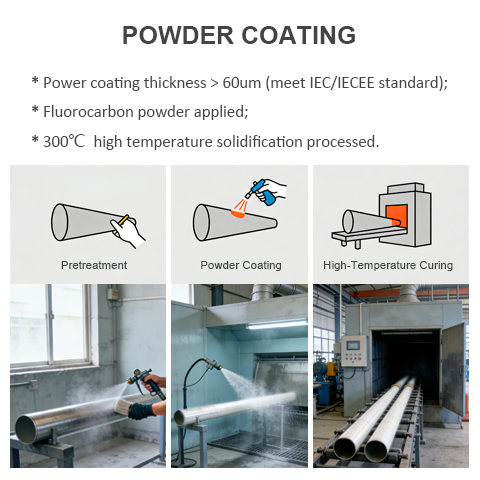

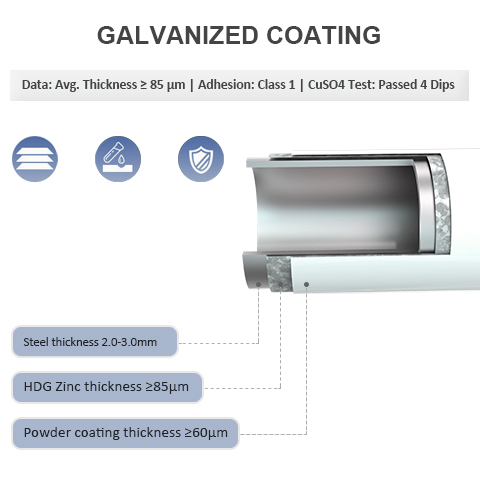

Tapered tubes can trap moisture if not treated properly. We fully submerge the fabricated pole into molten zinc (Hot Dipped Galvanizing ≥85μm), coating both the exterior and the hard-to-reach interior walls. Finished with an outdoor-grade powder coat, it is designed to resist rust and corrosion for over two decades.
| Model Number | DL01-A01A03-027 |

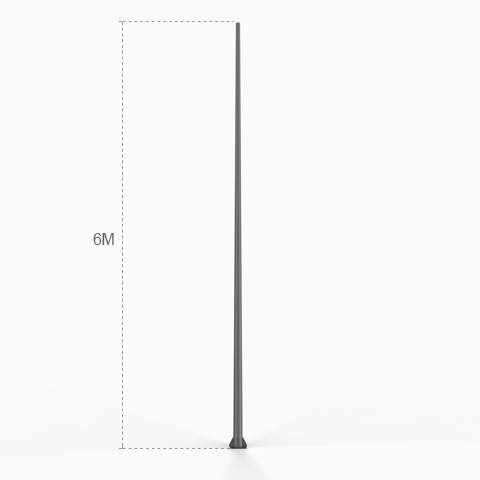

| Pole Height | 6M (Approx. 19.68FT) |
| Material | Q235B Carbon Steel |
| Pole Shape | Tapered Round (Conical) |
| Top Diameter (O.D.) | Ø60mm (Fits standard fixtures) |
| Bottom Diameter (O.D.) | Ø132mm |
| Wall Thickness | 2.0mm |
| Base Flange Size | 250 x 250 x 8mm |
| Anchor Bolts | 4 pcs of M14, 500mm length |
| Finish | Hot Dipped Galvanized (≥ 85μm) + Powder Coating |

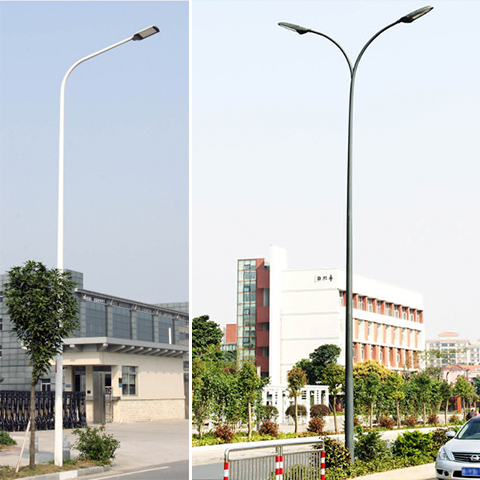

Where Does This 6M Tapered Pole Make Sense?
The 6-meter tapered round pole is one of the most frequently specified items in municipal lighting tenders due to its practical height, classic appearance, and universal 60mm mounting top.
Residential Streets & Subdivisions
A 6-meter height is the standard for local neighborhood streets. It provides enough elevation to evenly light a two-lane road while keeping the light source below the second-story windows of nearby houses. The tapered look is universally accepted in city planning.
Secondary Municipal Roads

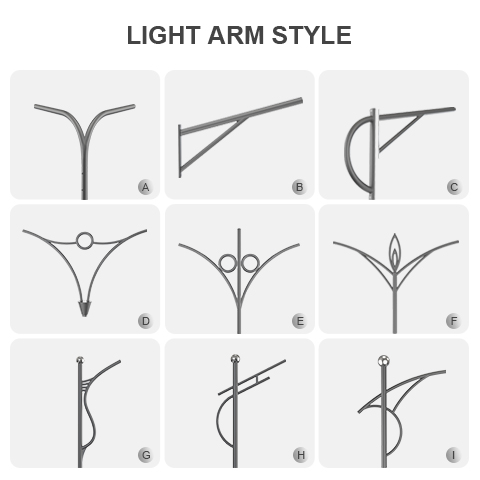

For secondary urban roads, this pole works perfectly with single-arm brackets and standard 50W-100W LED cobra-head street lights. The Ø60mm top means contractors can slide the fixtures right on without modifications.
Commercial Parking Facilities
Medium-sized commercial lots, such as supermarkets and office parks, frequently use 6M tapered poles. They offer a clean, professional profile that blends into the background while providing stable support for area lighting.
