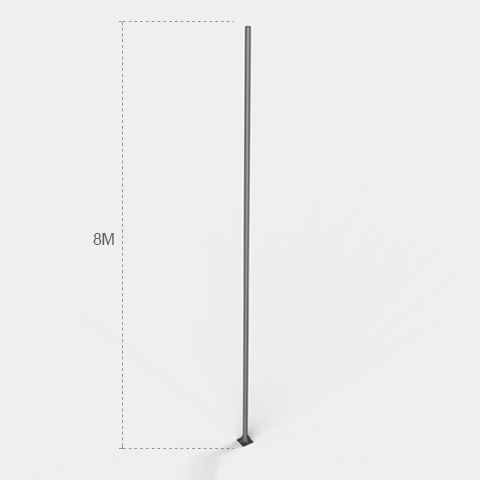

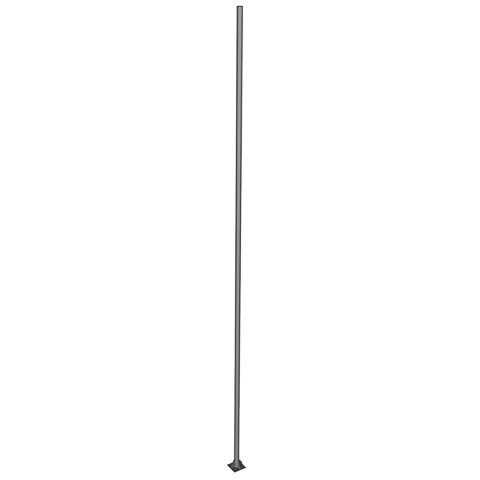

8M Polygonal Street Light Pole BS EN 40 Standard 3.5mm Thickness
| Diameters | Top: Ø70mm / Bottom: Ø166mm |
| Wall Thickness | 3.5mm Standard |

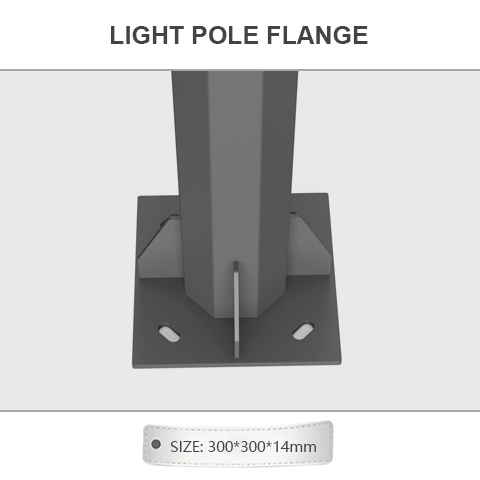

| Flange Plate | 300 x 300 x 14mm |
Talk to Our Engineer Now 1. BS EN 10025 / JIS G3101 Compliant Steel
The 8-meter structural column is press-braked into a faceted polygonal cross-section, drastically improving the bending moment of inertia. The raw materials used are strictly compliant with BS EN 10025 S275 and JIS G3101 SS400 standards. The longitudinal seam welding is performed using an automatic continuous Metal Inert Gas (MIG) process conforming to BS 5135, ensuring zero structural failure under dynamic loads.

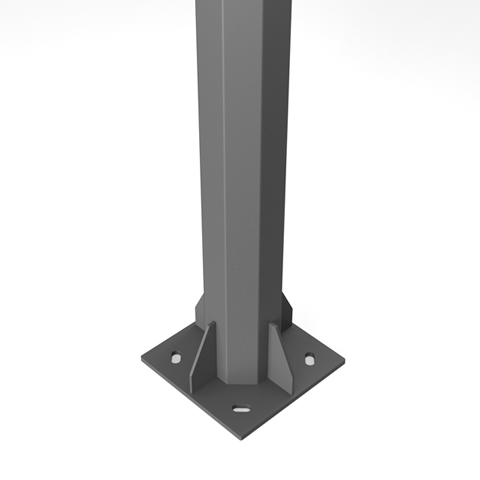

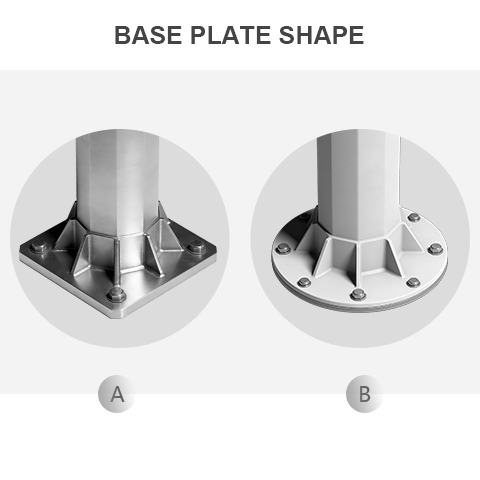

2. 3.5mm Wall & 14mm Base Flange
Designed to withstand wind speeds of up to 35m/s (topography and ground roughness factor 1.0), the wall thickness is increased to 3.5mm. The bottom diameter expands to Ø166mm, transferring shear forces directly into a reinforced 300x300mm square flange plate with a thickness of 14mm, ensuring secure ground anchoring.
3. Service Door & Grounding System
The column features a flush-mounted service door to accommodate standard electrical control gear. Precision laser-cut to maintain shaft integrity, the cavity includes a welded grounding lug, guaranteeing compliance with municipal earth bonding codes to prevent electrical faults in public installations.

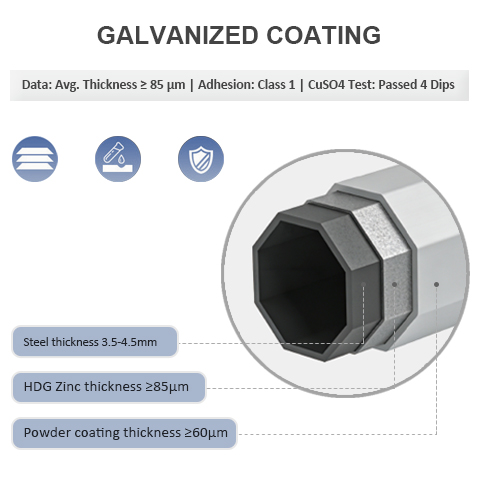

4. BS EN ISO 1461 Galvanizing Standard
The entire steel assembly is anti-corroded via Hot-Dip Galvanizing, strictly complying with the BS EN ISO 1461 standard. This process deposits a zinc layer of ≥85μm. A secondary architectural powder coating (≥60μm) is applied, chemically isolating the steel to provide a maintenance-free service life exceeding 25 years.
| Model Reference | DL01-A01A03-036 |
| Pole Height | 8M (Approx. 26.24FT) |
| Manufacturing Standard | BS EN 40 |
| Raw Material Standard | BS EN 10025 S275 / JIS G3101 SS400 |
| Welding Process | MIG Process (Conforms to BS 5135) |
| Cross-Section Type | Polygonal |
| Top Shaft Diameter | Ø70mm |
| Bottom Shaft Diameter | Ø166mm |
| Steel Wall Thickness | 3.5mm |
| Flange Plate Dimensions | 300 * 300 * 14mm |
| Electrical Maintenance | Service Door with Internal Grounding Lug |
| Galvanizing Standard | BS EN ISO 1461 (Zinc Coating ≥ 85μm) |
| Powder Coating | ≥ 60μm Thickness (Custom RAL Colors Available) |
Urban Infrastructure Applications for 8M Polygonal Poles
Manufactured to BS EN 40 standards, the 8-meter (26ft) polygonal lighting column provides the structural integrity required for primary urban road networks and heavy-traffic industrial zones.
Primary Urban Arterial Roads
Illumination Strategy: For wider 3-to-4 lane city roadways, an 8-meter elevation is required to push the photometric footprint further across the asphalt, ensuring adequate center-lane visibility for high-speed traffic.

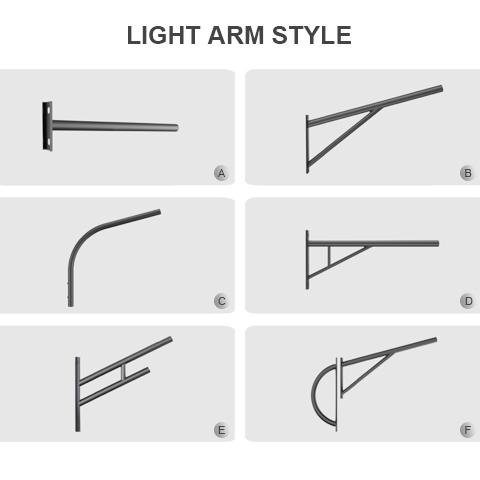

Structural Benefit: Designed to withstand 35m/s wind speeds, the 3.5mm wall thickness and upgraded 14mm base plate securely support the heavy single-arm or double-arm brackets necessary to position high-wattage LED cobra head fixtures directly over the carriageway.
Large Commercial Intersections
Illumination Strategy: Major intersections demand high vertical illuminance to ensure drivers can identify pedestrians and traffic signals from a distance.
Structural Benefit: The widened Ø166mm base diameter provides the torsional rigidity needed when mounting multiple directional floodlights on a single post. The integrated service door allows rapid maintenance of electrical breakers without requiring heavy bucket trucks to access the luminaire head.
Heavy Industrial Access Routes
Illumination Strategy: Roads servicing factories and logistics hubs experience high vibrations from heavy freight trucks and constant exposure to industrial emissions.
Structural Benefit: Conforming to BS EN ISO 1461, the ≥85μm Hot Dipped Galvanized coating prevents structural rusting even if the outer powder coat is scratched. The MIG welded seam (BS 5135) guarantees the shaft will not split under continuous harmonic vibration from passing heavy goods vehicles.
