Solar Energy Light Pole Design for Gulf Bus Stops

A solar energy light pole can serve a Gulf bus stop when its panel has an unshaded solar window, its battery is sized for the actual night profile, and its luminaire puts light on the boarding strip and waiting pavement. Treat the pole, panel, battery, controls and optics as one engineered system; a headline wattage alone cannot establish performance.

Begin with the surfaces people use

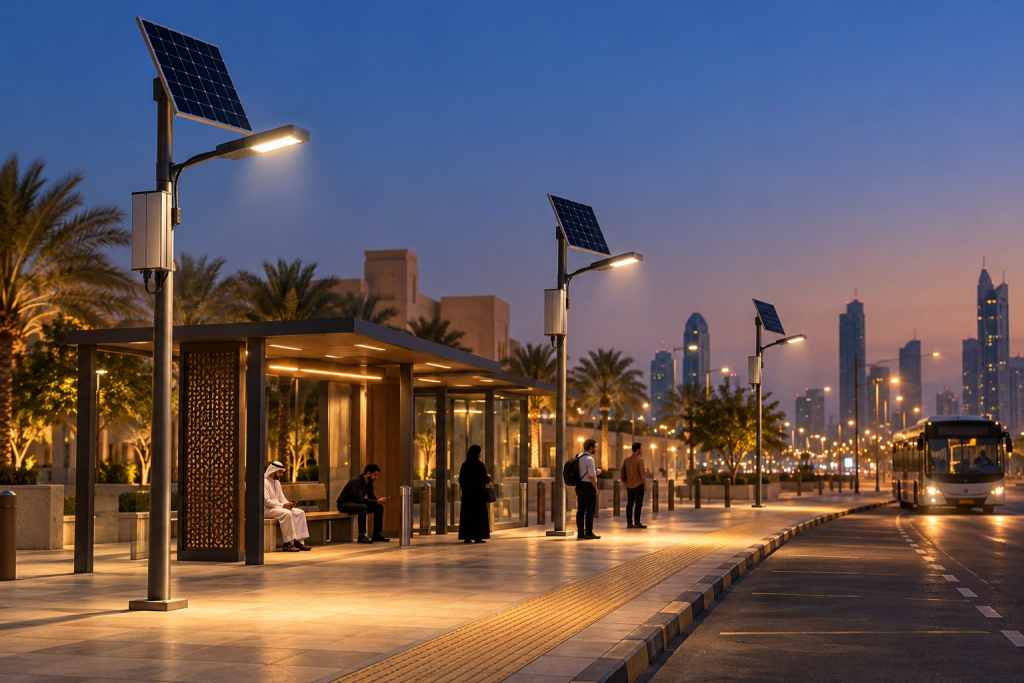

At a bus stop, the critical surfaces are the curbside boarding strip, tactile approach, shelter entry and crossing path. A bright lamp above an empty lane can leave all four underlit. For concept design, map the surfaces and use maintained horizontal illuminance targets around 10–20 lx on the boarding and waiting areas, with 5–10 lx on a low-traffic approach. These are illustrative starting values, not a claim of local-code compliance. Ask for a photometric layout and check minimum points and vertical visibility of people as well as the average.

Check solar access before choosing a pole location

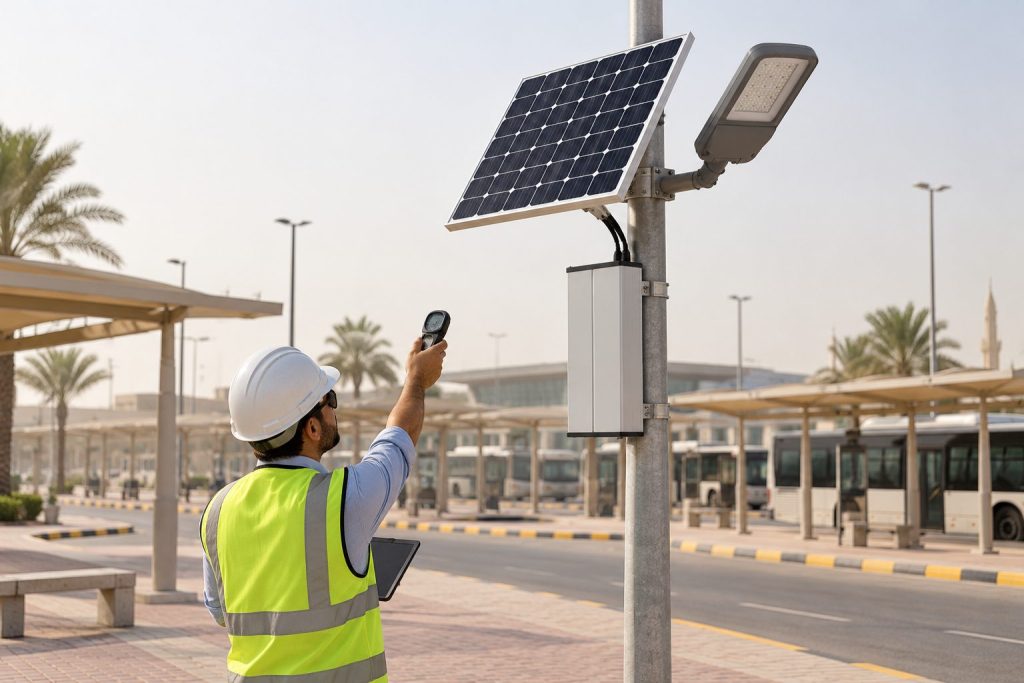

The roof of a shelter, nearby date palms and adjacent buildings can shade a panel at different times of year. Survey the site with a sun-path tool or measured obstruction angles, especially for winter mornings and afternoons. The panel needs to face the useful solar window even when the lamp head faces the curb. This is why a separate adjustable panel can be more useful than a fixed all-in-one head at a constrained stop. Keep the panel clear of maintenance traffic and confirm the pole and foundation for local wind loads.

Size the energy budget for the operating profile

Write down the actual dimming schedule before selecting panel and battery. As a simple illustration, a 30 W electrical load operated for 12 hours uses 360 Wh before driver, controller, battery and temperature losses. The calculation must then account for the site’s worst-season solar yield, autonomy requirement and battery discharge limits. Do not assume a published cloudy-day statement applies unchanged to every latitude or control setting. A brighter arrival window followed by lower output may reduce the energy budget, but only if the waiting area remains usable.

Select a product configuration that can be verified

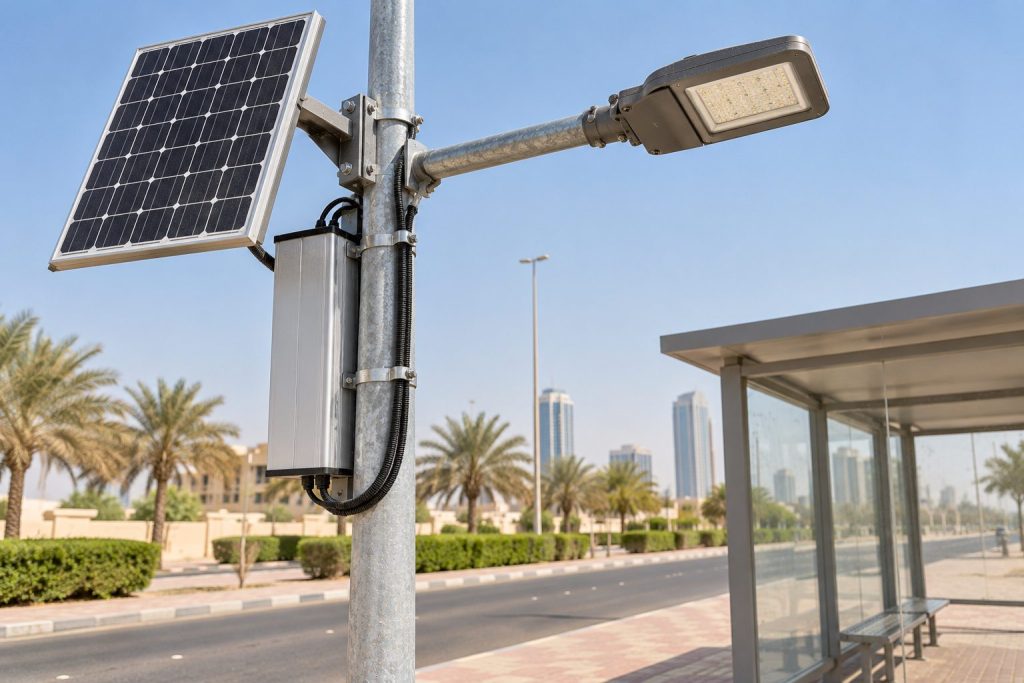

Dawn Lighting lists a semi-integrated solar street light with a separate panel, battery enclosure and lamp head, an IP66 rating, an MPPT controller and motion/time control options. The live product page carries differing power and efficacy figures in its title and specification blocks, so the tender schedule should identify the exact quoted variant, panel power, battery capacity, luminaire input, optical file and programmed operating profile. A 6–7 m mounting range appears on the product page; a bus stop may need a different engineered height to control spill and simplify access. Confirm the chosen assembly rather than copying nominal figures into a design.

Commission the complete stop

Inspect panel tilt and fixings, measure battery state after charging, and verify that the luminaire throws its main beam onto the curb and waiting area rather than the road verge. Take grid measurements after dark with the shelter lighting in its normal state; record controls in both occupied and low-output modes. Plan a cleaning interval for dust on the panel, and make the battery and controller accessible without blocking passengers. These steps reveal problems that a product datasheet cannot show.

Compare lighting approaches

Frequently asked questions

How much light should a bus stop have?

Start with site-specific maintained illuminance on the boarding strip and waiting pavement; 10–20 lx is an illustrative concept range here. Confirm local transport requirements and photometric results.

Which way should the solar panel face?

Toward the least-shaded solar window for the site and season. The lamp head should independently face the pavement it serves.

Can one battery rating guarantee three cloudy nights?

No. Autonomy depends on battery usable capacity, load profile, temperature, solar yield and state of charge. Calculate the actual configuration.

What must a tender submittal include?

Request the exact variant schedule, panel and battery data, IES file, control profile, structural details and a maintained-lighting layout.
