how tall are street lights？

Lighting of the streets is a very essential component of the contemporary infrastructure, as it provides safety, visibility, and effective transportation during night. Be it a lighting project, you need to source poles to a municipality, or and you are just interested, knowing the height of a street light can help you make better decisions.

In this guide, we are going to subdivide the common street light heights, the main factors that determine the height, and how to utilize the appropriate height based on the application.

The height of Street lights and its importance.

The design of a street light is not only a matter of height that:

• Coverage and uniformity of lighting.
• Energy efficiency
• Road safety of drivers and pedestrians.
• Maintenance and installation charges.

When a street lights is too short it results in dark areas as well as uneven lighting. When it is too tall it is likely to bring glare and wastage of energy. The balance is right to guarantee maximum performance and cost efficiency in the long term.

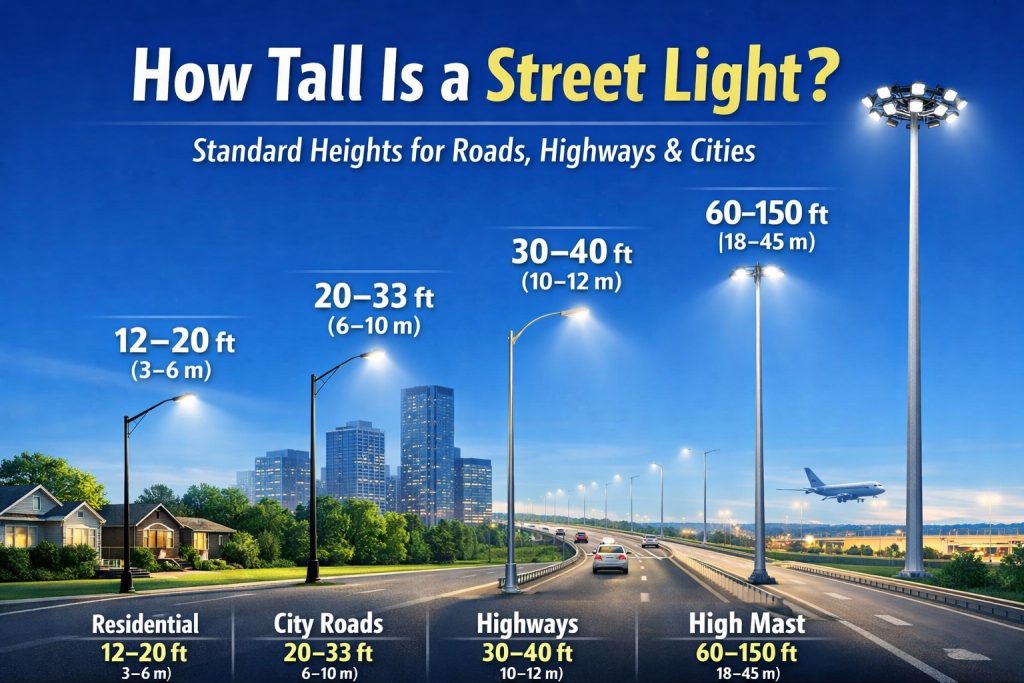

Street Lights Average Height.

The height of street lights differs based on the setting and style. The most common ranges are as listed below:

1. Residential Streets

• Average height: 3.7 to 6 meters (1220 feet)
• Designed for:
• Neighborhood roads
• Pedestrian safety
• Reduced light pollution

The low poles do not disrupt the surrounding houses because they do not produce a lot of light.

2. Cities and Business Streets.

• Normative height: 6 to 10 meters (2033 feet)
• Suitable for:
• City streets
• Commercial districts
• Medium traffic roads

This spectrum offers equal lighting to the vehicles and pedestrians.

3. Highways and Major Roads

• Normal height: 10 to 12 meters (30 -40ft)
• Used for:
• Multi-lane roads
• High-speed traffic

Taller poles provide broader distribution of the light and better visibility in high speed.

4. High Mast Lighting

• An average height: 18 to 45 meters (60-150 feet)
• Common in:
• Highways
• Airports
• Large parking areas

These are ultra-tall lights that occupy large areas with less poles hence lower infrastructure expenses.

Normal height of the street lights.

In general, the majority of street light poles lie in:

• 2.4 meters to 15 meters (8-50 feet) according to application.
• Common road uses 6 to 12 meters (20 to 40 feet).

In the case of the urban planning, a height of 8-10 meters is regarded as a wonderful average height of a conventional road.

Major Conditions that dictate the height of street lights.

It does not have a single size of height. There are a number of factors that engineers take into consideration when selecting the right pole size:

1. Road Width

A general rule:

The larger the road the larger the street light.

The pole height in most instances is more or less the same size as the road width to allow its coverage.

2. Traffic Density

• A high traffic means bigger poles to achieve higher coverage.
• To generate low traffic: Smaller poles to create local lighting.

The busy highways need larger installations to reduce shadows as well as enhance visibility.

3.Lighting Technology

Various sources of light (in particular, LED) have an effect on height choice:

• Lower wattage → shorter poles
• Higher wattage → taller poles

For example:

• 100W lights: under ~4.5m
• 200W lights: up to ~8.5m
• 300W lights: up to ~10m+

4.Spacing Between Poles

The usual distance between the lights in the street is 30-50m, which is determined by the height and brightness.

A common guideline:

• S spacing = 2.5 -3 pole height.

5.Environmental Conditions

Other factors used in height selection include wind, topography, and coastal conditions. For example:

• Coastal regions → taller poles that are resistant to corrosion.
• Cities e.g. smaller poles to gain good looks.

6.Safety and Regulations

The acceptable height ranges are used to ensure that: local and international standards (including roadway lighting standards) are used to set acceptable height ranges.

• Uniform illumination
• Reduced glare
• Adherence to safety codes.

How to select the proper height of street lights.

In determining the best height of the street lights, consider the following:

Step 1: Step 1: Identify the Application.

• Residential → 3–6m
• Urban roads → 6–10m
• Highways → 10–12m
• Large areas → 15m+

Step 2: Find Height-Light Output Correlation.

To ensure that the luminaire wattage does not cause:

• Over-lighting
• Under-lighting
• Glare issues

Step 3: Maximize Cost Effectiveness.

• Taller poles = lower number of installations but more expensive to install.
• Shorter poles = they are fewer in units but cost less each.

A balance between these factors aids in lowering the overall project costs.

Common Mistakes to Avoid

In the design of street lighting, it is important not to make the following mistakes:

• Selecting the height without regard to the road width.
• Neglect of interpolar distance.
• Poor choice of pole height wattage.
• Ignoring domestic laws.

Such errors may result in low illumination performance and increase in maintenance expenses.

Trends in Street lighting in the future.

The lighting in the streets is changing to include smart technologies such as:

• Lighting systems which vary according to traffic.
• Sustainable street lighting that is solar-powered.
• Integration of smart cities in energy efficiency.

Such inventions can potentially shape the street lighting standards in the future in terms of height and spacing.

Conclusion

So, how tall is a street light?

The response lies in its application place:

• Residential areas: 3–6 meters
• City streets: 6–10 meters
• Highways: 10–12 meters
• High mast systems: as high as 45 meters.

The height of the street lights should be chosen based on safety and efficiency as well as cost-effectiveness. With taking into account the road type, traffic, lighting technology, and spacing, you may create a system that can provide the best results.
